RA Indoor Unit

1. RA Indoor Unit

1.1 FTXG25/35/50JV1BW(S)(A), CTXS15/35K2V1B,
FTXS20/25K2V1B
Signal transmitter
Receiver
• To use the remote controller, aim the
transmitter at the indoor unit. If there
is anything to block signals between
the unit and the remote controller,
such as a curtain, the unit will not
operate.
• The maximum distance for
communication is approx. 7m.
FAN setting button
• Selects the airflow rate setting.
Auto Indoor unit quiet
High Middle high
• In indoor unit quiet operation,
operation sound becomes weak.
(The airflow rate also decreases.)
• In DRY operation, the airflow rate
setting is not available.
Reference Refer to the following pages for detail.
Note: Refer to the operation manual of applicable model for detail. You can download operation
manual from 'DISTRIBUTOR'S PAGE':
DISTRIBUTOR'S PAGE → Product Information → Operation/Installation Manual
(URL: http://global.daikin.com/Daikin/global/Distributors_admin/user_mng/login.php)
107
Low
Middle low
Middle

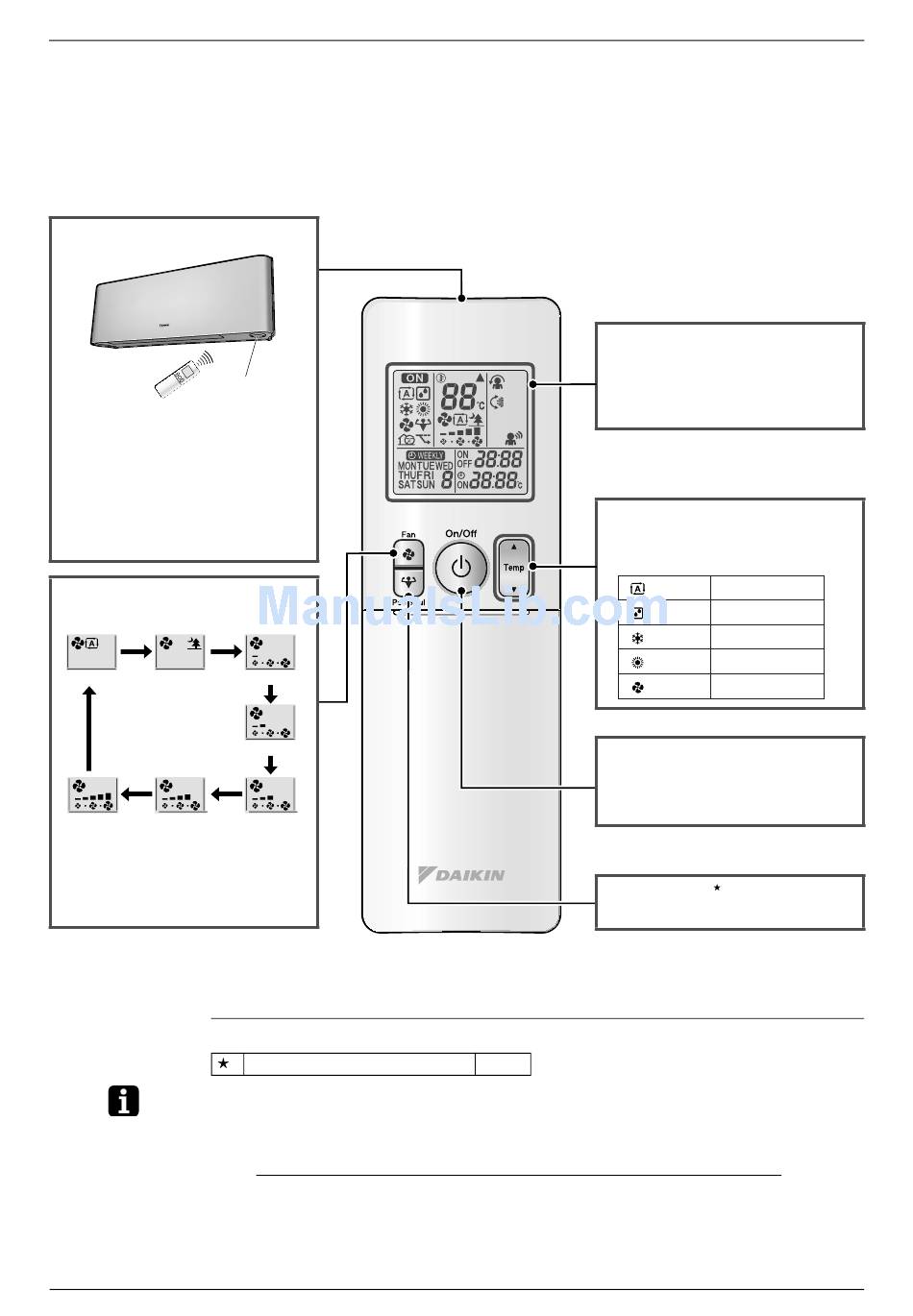

< ARC466A1, A6 >
1 POWERFUL operation
Display (LCD)
• Displays the current settings.
(In this illustration, each section is
shown with all its displays on for the
purpose of explanation.)
TEMPERATURE
adjustment buttons
• Changes the temperature setting.
: AUTO
: DRY
: COOL
: HEAT
: FAN
ON/OFF button
• Press this button once to start
operation.
Press once again to stop it.
POWERFUL
• POWERFUL operation.
P.72
SiBE121123_A
18 ~ 30 °C
Not available
18 ~ 32 °C
10 ~ 30 °C
Not available
1
button
(R17860)
Remote Controller
