Daikin 2MXS40H2V1B Service Manual page 43

SiBE121123_A

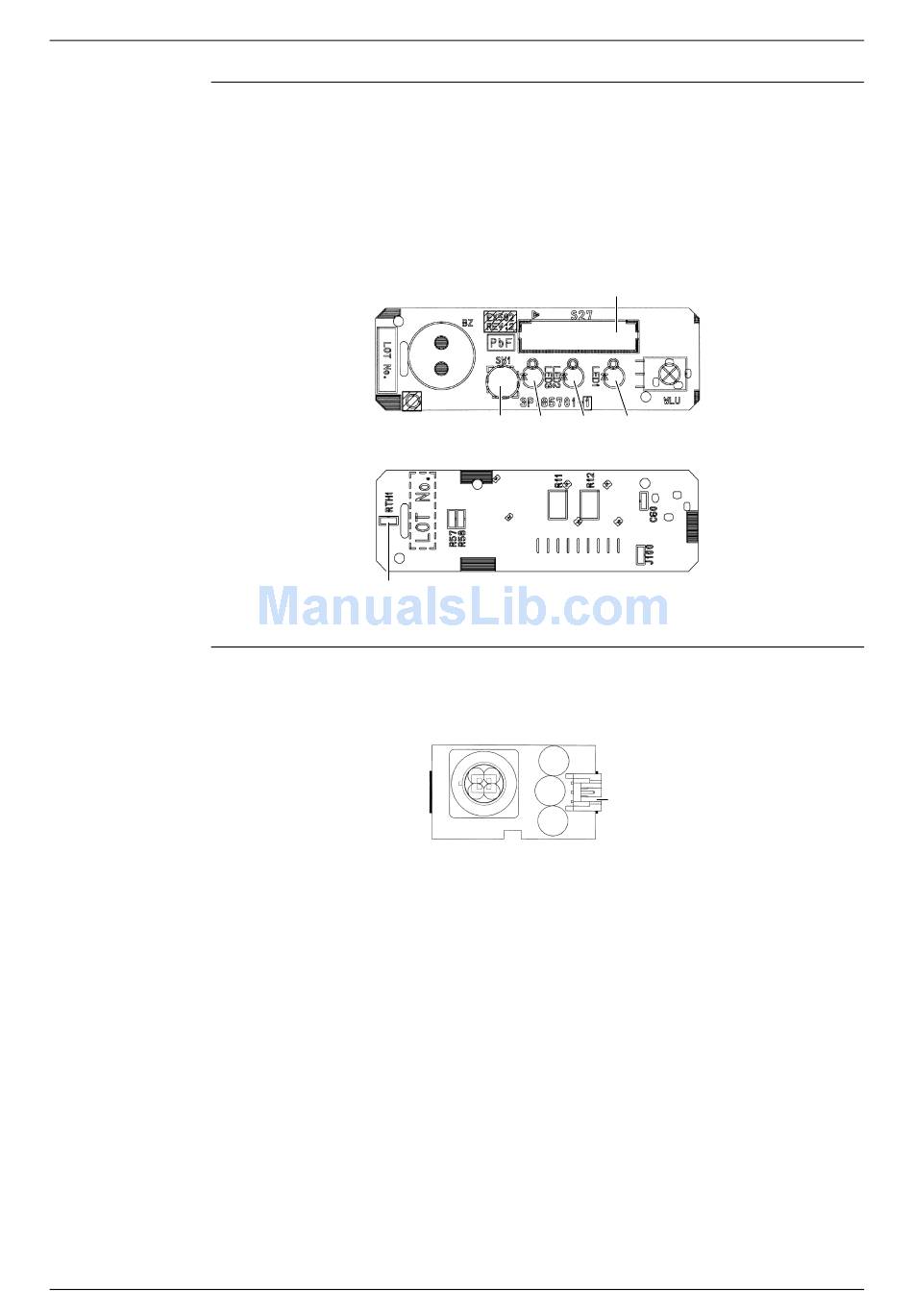

Display PCB
1) S27
2) SW1 (S1W)
3) LED1 (H1P)
4) LED2 (H2P)
5) LED3 (H3P)
6) RTH1 (R1T)
INTELLIGENT
EYE Sensor PCB
1) S36
Printed Circuit Board Connector Wiring Diagram
Connector for control PCB
Forced cooling operation [ON/OFF] button
LED for operation (green)
LED for timer (yellow)
LED for INTELLIGENT EYE (green)
Room temperature thermistor
SW1 LED3
(Solder side)
RTH1
Connector for control PCB
S27
LED2 LED1
3P185701-3
S36
3P296737-1
Indoor Unit
32
