Page 1: Operation Manual

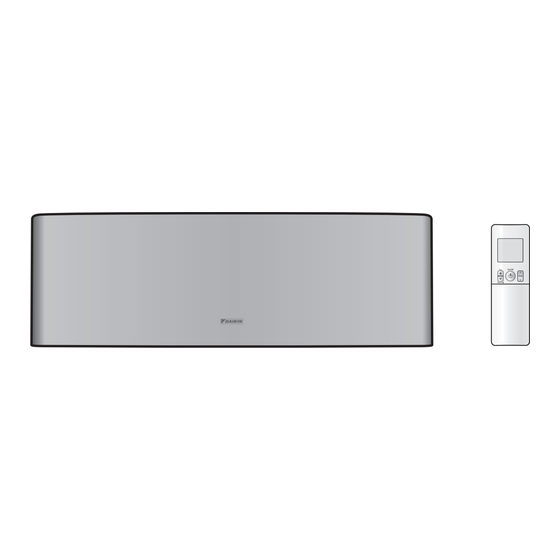

DAIKIN ROOM AIR CONDITIONER OPERATION MANUAL MODELS FTXG25JV1BW FTXG35JV1BW FTXG50JV1BW FTXG25JV1BA FTXG35JV1BA FTXG50JV1BA FTXG25JV1BB FTXG35JV1BB FTXG50JV1BB 10/17/2013 9:11:52 AM... - Page 2 10_TR_3P255639-2A.indd 43 2/16/2011 4:19:53 PM...
- Page 3 CAUTION / ACHTUNG / ATTENTION / VOORZORGSMAATREGELEN / PRECAUCIÓN / ATTENZIONE / 35(&$8d2 ø.$= Sound pressure level is less than 70 dB (A). This appliance is intended to be used by expert or trained users in shops, in light industry and on farms, or for commercial and household use by lay persons.
-
Page 4: Intelligent Eye
Feature For your comfort and energy saving INTELLIGENT EYE The INTELLIGENT EYE sensor detects the human movement in a room. If no one is in the room for more than 20 minutes, the operation automatically changes to energy saving operation. Page 16 WEEKLY TIMER Up to 4 timer settings can be saved for each day of the week... -
Page 5: Table Of Contents
Contents „ Read before Operatio Safety Precautions ......... Name of Parts ..........Preparation before Operation ......„ Operatio AUTO · DRY · COOL · HEAT · FAN Operation ........... Adjusting the AirÀ ow Direction and Rate ..........COMFORT AIRFLOW Operation ..INTELLIGENT EYE Operation ... -
Page 6: Safety Precautions
Safety Precautions • Keep this manual where the operator can easily ¿ nd it. • Read the precautions in this manual carefully before operating the unit. • The precautions described herein are classi¿ ed as WARNING and CAUTION. They both contain important information regarding safety. - Page 7 CAUTION • Do not place objects that are susceptible to moisture directly beneath the indoor or outdoor units. Under certain conditions, condensation on the main unit or refrigerant pipes, air fi lter dirt or drain blockage may cause dripping, resulting in fouling or failure of the object concerned. •...
-
Page 8: Name Of Parts
Name of Parts Indoor Unit Air inlet INTELLIGENT EYE sensor • Appearance of the indoor unit may differ. • It detects the movements of people and automatically switches between normal operation and energy saving operation. Page 16 Front panel Air outlet Room temperature sensor •... - Page 9 „ Open the front panel Panel support plate Air ¿ lter Titanium apatite photocatalytic air-purifying ¿ lter Outdoor Unit • Appearance of the outdoor unit may differ from some models. Air inlet Outdoor temperature sensor (back) (back and side) Drain hose Earth terminal •...
-
Page 10: Front Cover
Name of Parts Remote Controller Signal transmitter Receiver 50cm or more Display (LCD) • It displays the current settings. • To use the remote controller, aim the (In this illustration, each section is transmitter at the indoor unit. If there shown with its displays on for the is anything to block signals between purpose of explanation.) -
Page 11: Quiet Button
Open the front cover MODE selector button • It selects the operation mode. (AUTO/DRY/COOL/HEAT/ FAN) Page 11 ECONO button • ECONO operation. Page 20 SWING button • Adjusting the air ow direction Page 13 QUIET button • OUTDOOR UNIT QUIET operation. -
Page 12: Preparation Before Operation
Preparation before Operation „ To set the batteries Position – correctly! Slide the front cover to take it off. Set two dry batteries AAA.LR03 (alkaline). Set the front cover as before. „ To ¿ x the remote controller holder on the wall Remote controller Choose a place from where the signals reach the unit. - Page 13 Turn the breaker on • After the power is turned on, the flaps of the indoor unit open and close once to set the reference position. To set the clock Press • “ ” is displayed on the LCD. • “ ”...
-
Page 14: Auto · Dry · Cool · Heat · Fan Operation
AUTO · DRY · COOL · HEAT · FAN Operation The air conditioner operates with the operation mode of your choice. From the next time on, the air conditioner will operate with the same operation mode. „ To start operation Press and select an operation mode. -
Page 15: Operating Conditions
To change the temperature setting Press • The displayed items on the LCD will change whenever either one of the buttons is pressed. COOL operation HEAT operation AUTO operation DRY or FAN operation 18-32°C 10-30°C 18-30°C The temperature setting is Press to raise the temperature and press to lower the... -
Page 16: And Rate
Adjusting the Airfl ow Direction and Rate You can adjust the airfl ow direction to increase your comfort. To start auto swing Up and down airflow direction Press • “ ” is displayed on the LCD. • The aps (horizontal blades) will begin to swing. To set the flaps at desired position •... - Page 17 To adjust the airfl ow rate setting Press • Each pressing of advances the airflow rate setting in sequence. Auto Indoor unit quiet Middle low High Middle high Middle • When the air ow is set to “ ”, indoor unit quiet operation will start and the noise from the unit will become quieter.
-
Page 18: Comfort Airflow Operation
COMFORT AIRFLOW Operation The flow of air will be in the upward direction while in COOL operation and in the downward direction while in HEAT operation, which will provide a comfortable wind that will not come in direct contact with people. To start COMFORT AIRFLOW operation Press •... -
Page 19: Intelligent Eye Operation
INTELLIGENT EYE Operation “INTELLIGENT EYE” is the infrared sensor which detects the human movement. If no one is in the room for more than 20 minutes, the operation automatically changes to energy saving operation. To start INTELLIGENT EYE operation Press •... - Page 20 INTELLIGENT EYE Operation [Example] When someone is in the When no one is in the room Someone is back in the room room „ 20 minutes after, start energy Normal operation saving operation. Back to normal operation. „ „ • The air conditioner is in normal •...
-
Page 21: Powerful Operation
POWERFUL Operation POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. You can get the maximum capacity. „ To start POWERFUL operation Press during operation. • POWERFUL operation ends in 20 minutes. Then the system automatically operates again with the previous settings which were used before POWERFUL operation. -
Page 22: Outdoor Unit Quiet Operation
OUTDOOR UNIT QUIET Operation OUTDOOR UNIT QUIET operation lowers the noise level of the outdoor unit by changing the frequency and fan speed on the outdoor unit. This function is convenient during the night. To start OUTDOOR UNIT QUIET operation Press •... -
Page 23: Econo Operation
ECONO Operation ECONO operation is a function which enables effi cient operation by limiting the maximum power consumption value. This function is useful for cases in which attention should be paid to ensure a circuit breaker will not trip when the product runs alongside other appliances. To start ECONO operation Press during operation. -
Page 24: Off Timer Operation
OFF TIMER Operation Timer functions are useful for automatically switching the air conditioner on or off at night or in the morning. You can also use OFF TIMER and ON TIMER in combination. „ To use OFF TIMER operation • Check that the clock is correct. -
Page 25: On Timer Operation
ON TIMER Operation „ To use ON TIMER operation • Check that the clock is correct. If not, set the clock to the present time. Page 10 Press • “ ” is displayed on the LCD. • “ ” blinks. •... -
Page 26: Weekly Timer Operation
WEEKLY TIMER Operation Up to 4 timer settings can be saved for each day of the week. It is convenient if the WEEKLY TIMER is set according to the family’s life style. Setting example of the WEEKLY TIMER Example: e l i made for the weekend. - Page 27 „ To use WEEKLY TIMER operation Setting mode • Make sure the day of the week and time are set. If not, set the day of the week and time. Page 10 Program 1 Program 2 Program 3 Program 4 [Monday] 25°C 27°C...
- Page 28 WEEKLY TIMER Operation Press to select the desired time. • The time can be set between 0:00 and 23:50 in 10 minute intervals. • To return to the ON/OFF TIMER mode setting, press • Go to step when setting the OFF TIMER. Press •...
- Page 29 Copy mode • A reservation made once can be copied to another day of the week. The whole reservation of the selected day of the week will be copied. Program 1 Program 2 Program 3 Program 4 [Monday] 25°C 27°C 6:00 8:30 17:30...
- Page 30 WEEKLY TIMER Operation „ Con¿ rming a reservation • The reservation can be con¿ rmed. Setting Displays Normal Con¿ rmation Press • The day of the week and the reservation number of the current day will be displayed. Press to select the day of the week and the reservation number to be con¿...
- Page 31 To delete reservations The individual reservation Press • The day of the week and the reservation number will be displayed. Press to select the day of the week and the reservation number to be deleted. Press • “ ” and “ ”...
-
Page 32: Note For Multi System
Note for Multi System Multi system has one outdoor unit connected to multiple indoor units. Selecting the operation mode With the priority room setting present but A room B room the priority unit inactive or not present. When more than one indoor unit is operating, priority is given to the fi rst unit that was turned on. - Page 33 „ COOL/HEAT mode lock The COOL/HEAT mode lock requires initial programming during installation. Please consult your authorized dealer for assistance. The COOL/HEAT mode lock sets the unit forcibly to either COOL or HEAT operation. This function is convenient when you wish to set all indoor units connected to the multi system to the same operation mode. NOTE •...
-
Page 34: Care And Cleaning
Care and Cleaning Quick reference How to open / close the front panel • Hold the front panel by the panel tabs on the both sides and open it. Panel tab • Press the front panel at both sides to close it. Cleaning parts Front panel •... -
Page 35: Air Filter
Air filter Pull out the air fi lters. If the dust does not come off easily • Open the front panel. • Wash the air lters with neutral detergent thinned with • Secure the front panel with the panel support lukewarm water, then dry them up in the shade. - Page 36 Care and Cleaning Titanium apatite photocatalytic air-purifying fi lter Take off the titanium [Replacement] apatite photocatalytic air- Remove the filter from the filter purifying fi lter. frame and attach a new one. • Open the front panel and pull out the air fi lters. •...
-
Page 37: Removing The Front Panel
„ Removing the front panel Remove the front panel. Clean the front panel. • Open the front panel. • Wipe it with a soft cloth soaked in water. • Open the front panel at least 90 degrees. • Only neutral detergent may be used. •... -
Page 38: Before A Long Idle Period
Care and Cleaning Check the units Check that the base, stand and other fi ttings of the outdoor unit are not decayed or corroded. Check that nothing blocks the air inlets and the outlets of the indoor unit and the outdoor unit. Check that the drain comes smoothly out of the drain hose during COOL or DRY operation. -
Page 39: Troubleshooting
Troubleshooting These cases are not troubles. • The following cases are not air conditioner troubles but have some reasons. You may just continue using it. Indoor unit The fl aps do not start swinging immediately. • The air conditioner is adjusting the position of the flaps. The fl aps will start moving soon. - Page 40 Troubleshooting • Troubleshooting measures are classi¿ ed into the following two types on a remedial basis. Take an appropriate measure according to the symptom. Not trouble Operation stopped suddenly. • These cases are not troubles. (Multi-monitor lamp À ashes.) Check •...
- Page 41 Hot air does not fl ow out soon after The outdoor fan rotates while the the start of HEAT operation. air conditioner is not in operation. After operation is stopped • The air conditioner is warming up. You should wait for 1 to 4 minutes.
-
Page 42: Call The Service Shop Immediately
Troubleshooting „ Call the service shop immediately WARNING „ When an abnormality (such as a burning smell) occurs, stop operation and turn the breaker off. • Continued operation in an abnormal condition may result in troubles, electric shocks or ¿ re. •... - Page 43 „ Fault diagnosis by remote controller • The remote controller can receive from the indoor unit a corresponding error code according to the fault. When is held down for 5 seconds, a “ ” indication blinks on the temperature display section. Press repeatedly until a continuous beep is produced.
- Page 44 Troubleshooting „ LED ON OUTDOOR UNIT PCB 3MXS, 4MXS, 5MXS series GREEN MICROCOMPUTER MALFUNCTION NORMAL DETECTION LED-A LED1 LED2 LED3 LED4 LED5 DIAGNOSIS NORMAL CHECK INDOOR UNIT HIGH PRESSURE PROTECTOR WORKED OR FREEZE-UP IN OPERATING UNIT OR STAND-BY UNIT ∗ OVERLOAD RELAY WORKED OR HIGH DISCHARGE PIPE TEMPERATURE FAULTY COMPRESSOR START INPUT OVERCURRENT...
- Page 45 01_EN_3P255639-2A.indd 42 2/16/2011 2:44:30 PM...
- Page 46 Quick Reference 3P291652-3B 2013.10 10/17/2013 9:11:52 AM...
