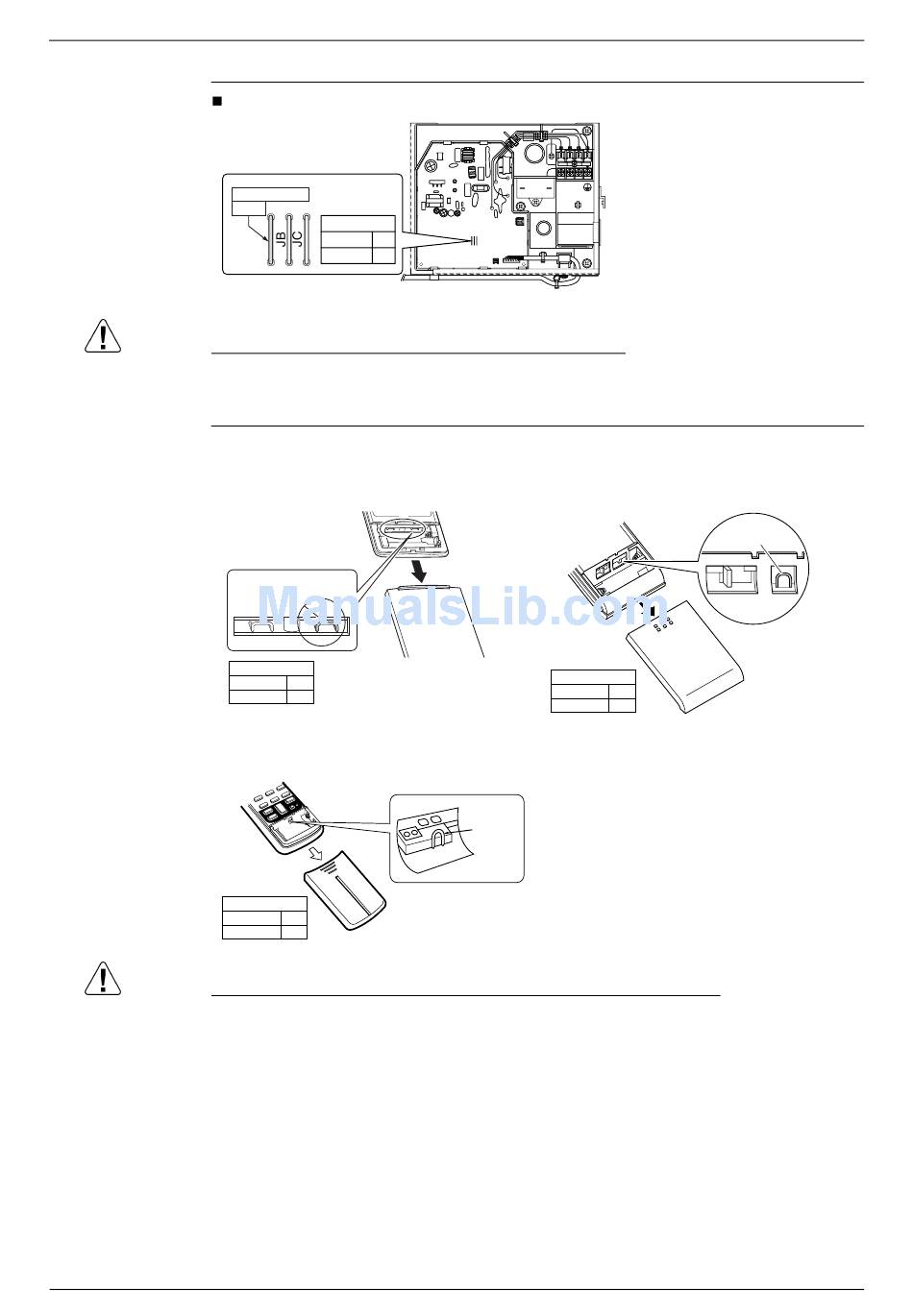

Field Settings
Duct Connected
Type
Caution Replace the PCB if you accidentally cut a wrong jumper.
Jumpers are necessary for electronic circuit. Improper operation may occur if you cut any of
them.
Wireless Remote (1) Remove the cover and take it off.
(2) Cut the address setting jumper.
Controller
<ARC466 series>
<ARC433 series>
Caution Replace the remote controller if you accidentally cut a wrong jumper.
Jumpers are necessary for electronic circuit. Improper operation may occur if you cut any of
them.
229
Cut the jumper JA on PCB.
A D D R E S S
J A
ADDRESS : JA
EXIST
1
CUT
2
Jumper
ADDRESS
EXIST 1
CUT 2
∗ Do not cut the left jumper.
ADDRESS
EXIST 1
CUT 2
1 2 3
(R17876)
<ARC452 series>
ADDRESS
EXIST 1
CUT 2
(R18416)
Jumper
(R6573)
SiBE121123_A
Jumper
(R12065)
Trial Operation and Field Settings
