SiBE121123_A

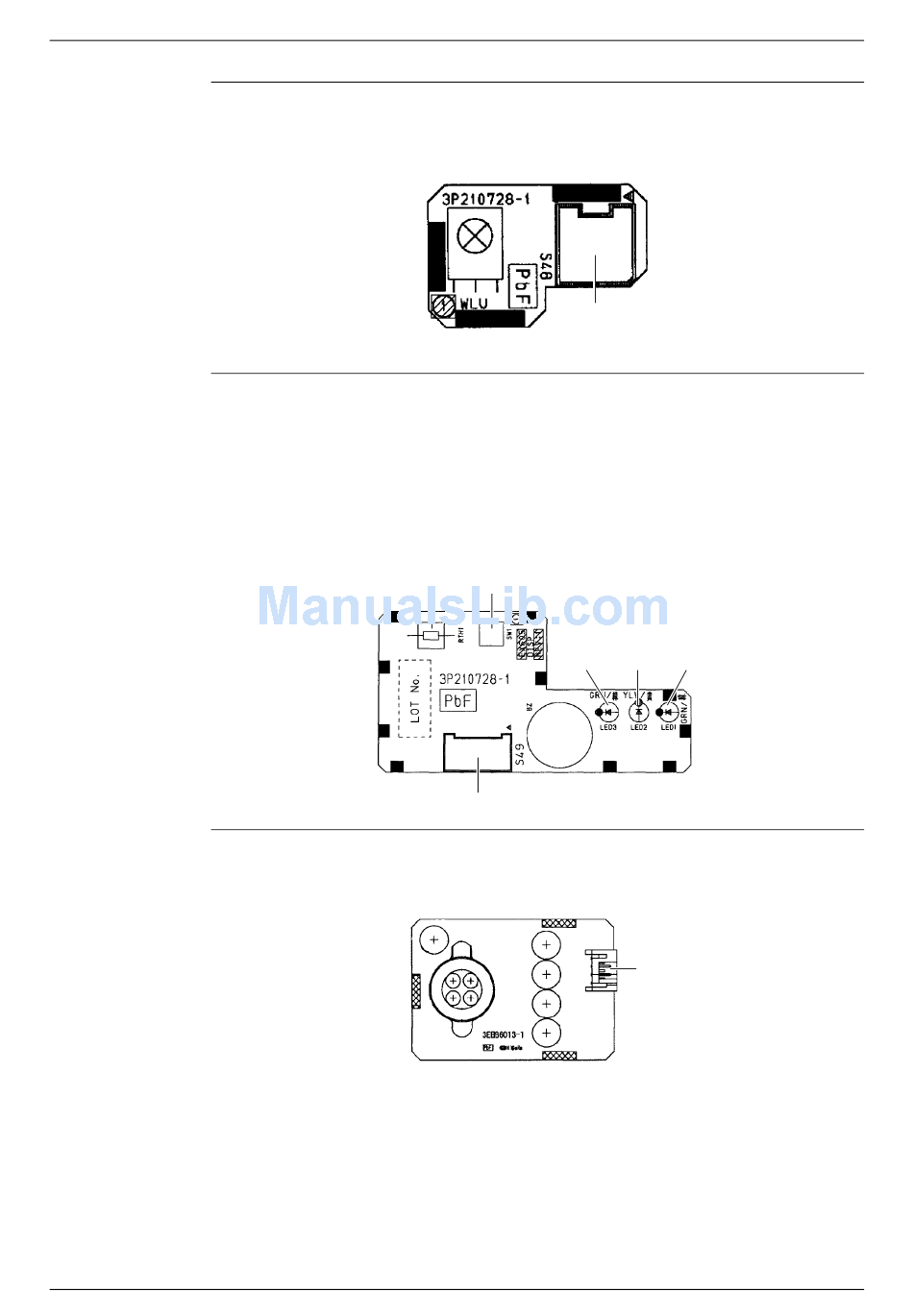

Signal Receiver
PCB
1) S48
Display PCB
1) S49
2) SW1
3) LED1 (H1P)
4) LED2 (H2P)
5) LED3 (H3P)
6) RTH1 (R1T)
INTELLIGENT
EYE Sensor PCB
1) S26
Printed Circuit Board Connector Wiring Diagram
Connector for control PCB
Connector for control PCB
Forced operation [ON/OFF] button
LED for operation (green)
LED for timer (yellow)
LED for INTELLIGENT EYE (green)
Room temperature thermistor
SW1
RTH1
S49
Connector for control PCB
S48
3P210728-1
LED3 LED2 LED1
3P210728-1
S26
3EB86013-1
Indoor Unit
