FTXS20/25/35/42/50J2V1B

Signal transmitter
Receiver
• To use the remote controller, aim the
transmitter at the indoor unit. If there
is anything to block signals between
the unit and the remote controller,
such as a curtain, the unit will not
operate.
• The maximum distance for
communication is approx. 7m.
FAN setting button
• Selects the airflow rate setting
every time you press this button.
Auto Indoor unit quiet
High Middle high
• In indoor unit quiet operation,
operation sound becomes weak.
(The airflow rate also decreases.)
• In DRY operation, the airflow rate
setting is not available.
Reference Refer to the following pages for detail.
Note: Refer to the operation manual of applicable model for detail. You can download operation
manual from 'DISTRIBUTOR'S PAGE':
DISTRIBUTOR'S PAGE → Product Information → Operation/Installation Manual
(URL: http://global.daikin.com/Daikin/global/Distributors_admin/user_mng/login.php)
111
Low
Middle low
Middle
1 POWERFUL operation
< ARC452A3 >
P.72
SiBE121123_A
Display (LCD)
• Displays the current settings.
(In this illustration, each section is
shown with all its displays on for the
purpose of explanation.)
TEMPERATURE
adjustment buttons
• Changes the temperature setting.
18 ~ 30 °C
: AUTO
: DRY Not available
18 ~ 32 °C
: COOL
10 ~ 30 °C
: HEAT
: FAN Not available
ON/OFF button
• Press this button once to
start operation.
Press once again to stop it.
1
POWERFUL button
• POWERFUL operation.

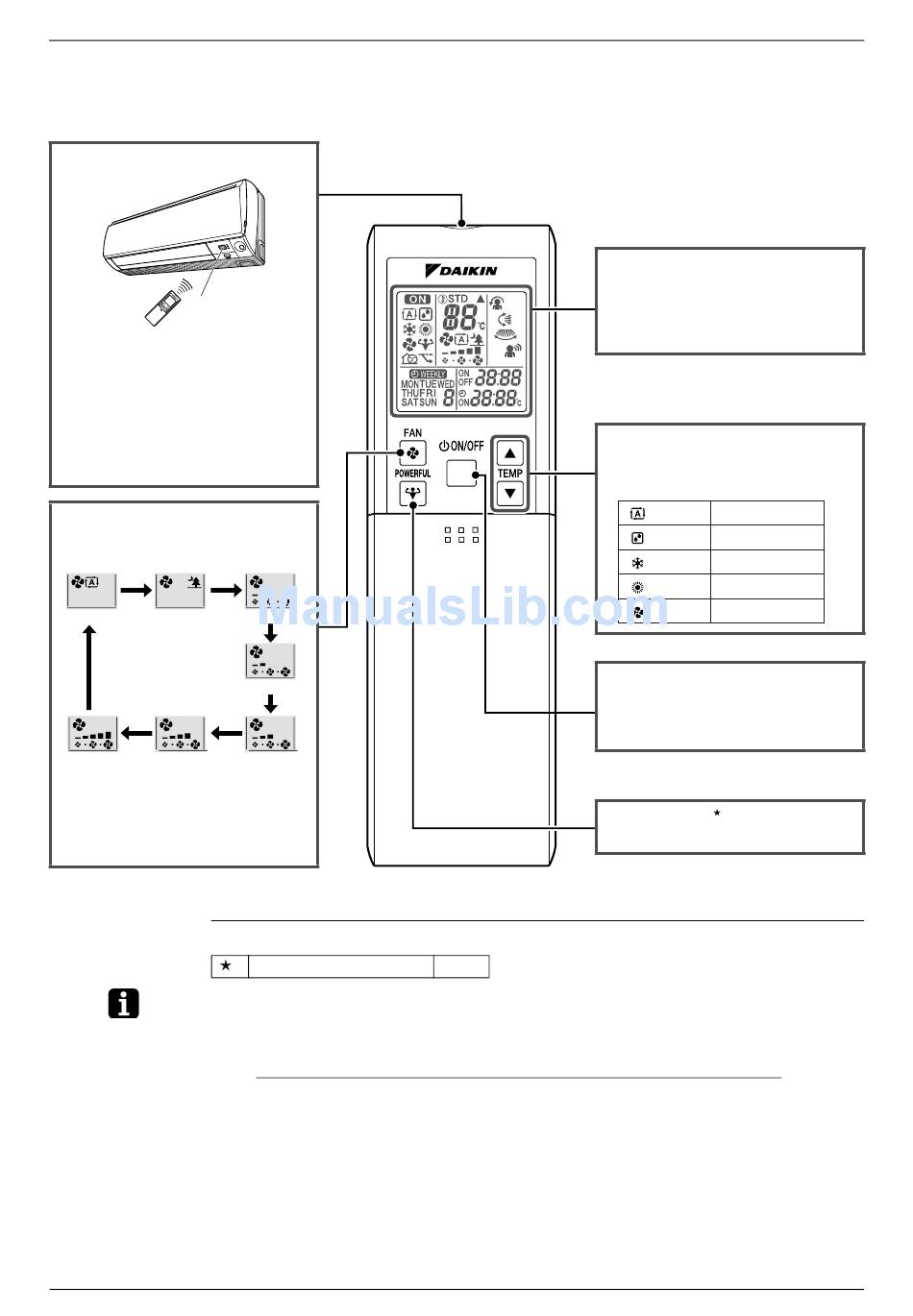

Remote Controller
(R18208)
