Daikin 2MXS40H2V1B Service Manual page 41

SiBE121123_A

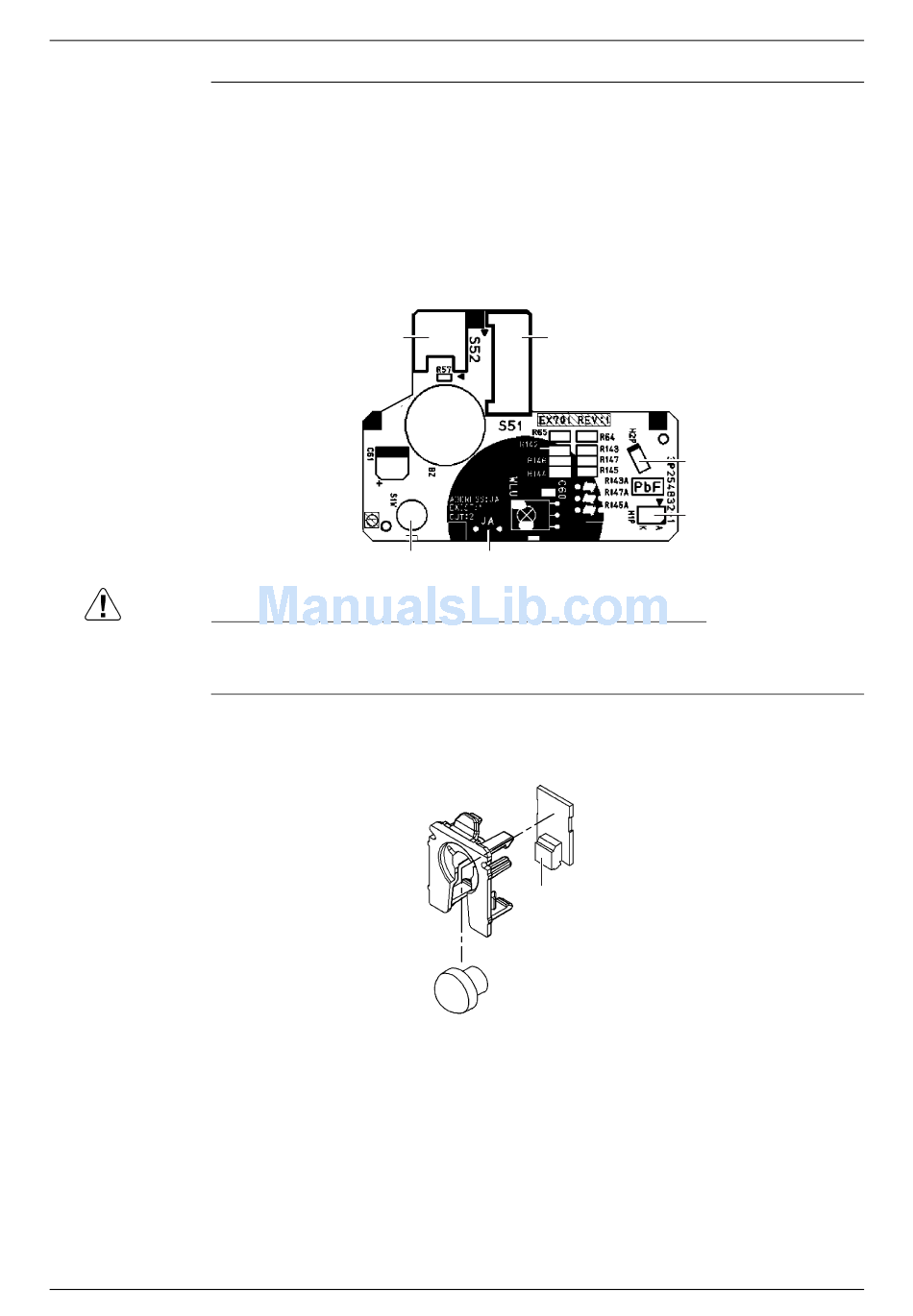

Signal Receiver /
Display PCB
1) S51
2) S52
3) S1W
4) H1P
5) H2P
6) JA
Caution Replace the PCB if you accidentally cut the jumpers other than JA.
Jumpers are necessary for electronic circuit. Improper operation may occur if you cut any of
them.
INTELLIGENT
EYE Sensor PCB
1) S36
Printed Circuit Board Connector Wiring Diagram
Connector for control PCB
Connector for room temperature thermistor
Forced operation [ON/OFF] button
LED for operation (multi-color)
LED for INTELLIGENT EYE (green)
Address setting jumper
∗ Refer to page 226 for detail.
S52
S1W JA
Connector for control PCB
S51
H2P
H1P
3P254832-1
S36
3P255914-1
Indoor Unit
30
