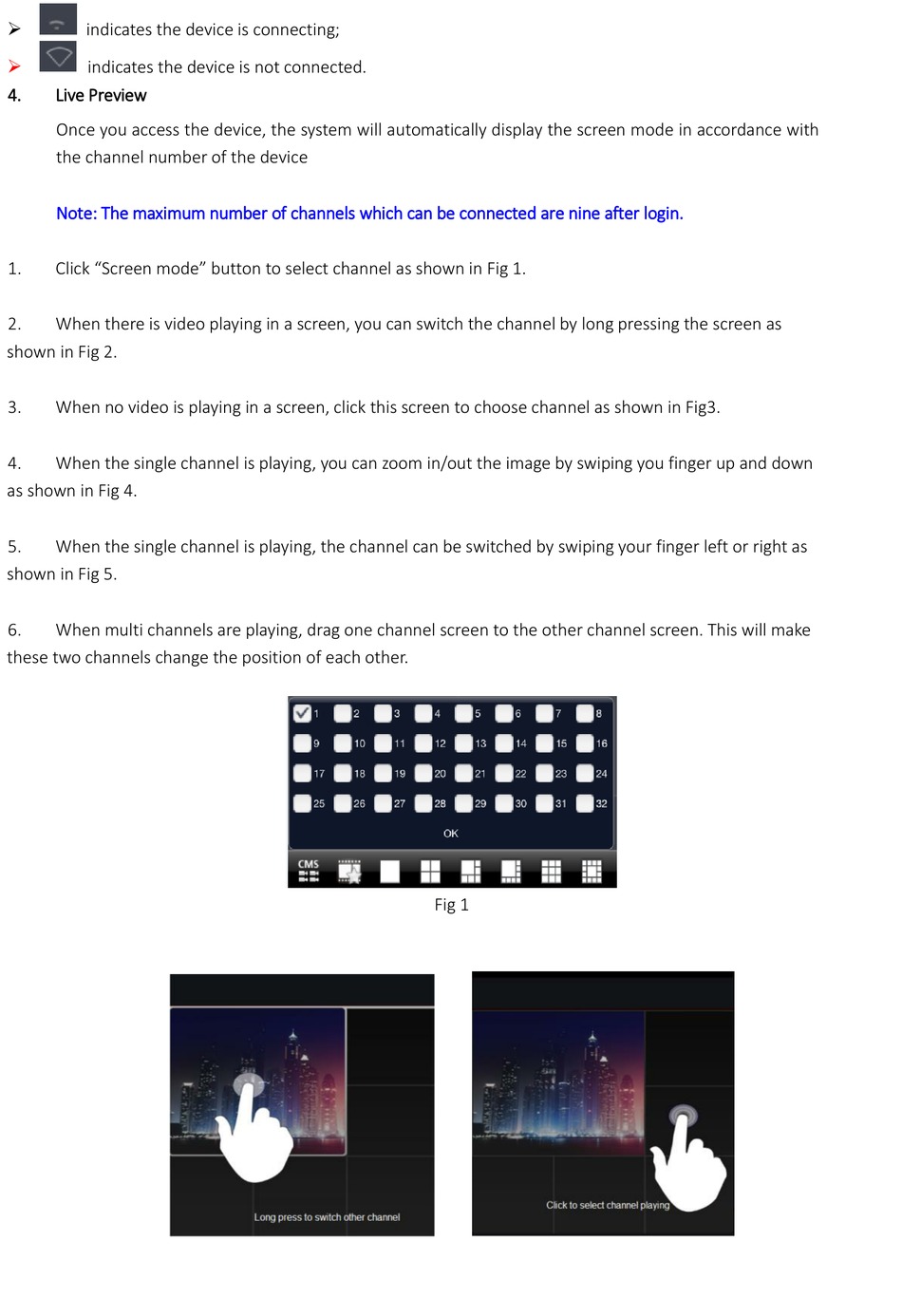

Provision ISR IP series User Manual page 61


indicates the device is connecting;

indicates the device is not connected.
4. Live Preview
Once you access the device, the system will automatically display the screen mode in accordance with
the channel number of the device
Note: The maximum number of channels which can be connected are nine after login.
1. Click "Screen mode" button to select channel as shown in Fig 1.
2. When there is video playing in a screen, you can switch the channel by long pressing the screen as
shown in Fig 2.
3. When no video is playing in a screen, click this screen to choose channel as shown in Fig3.
4. When the single channel is playing, you can zoom in/out the image by swiping you finger up and down
as shown in Fig 4.
5. When the single channel is playing, the channel can be switched by swiping your finger left or right as
shown in Fig 5.
6. When multi channels are playing, drag one channel screen to the other channel screen. This will make
these two channels change the position of each other.
Fig 1
