Main Monitor; Mask - Provision ISR IP series User Manual

5.2.2

Main Monitor

The main monitor settings allow you to set camera sequence in live display mode.
Operate the following steps to set main monitor:
Step 1: Enter into MenuSetupLive Main Monitor interface. Refer to Fig 5-7:
Step 2: Select display mode and channel.
Step 3: Select dwell time. Click
button to set the dwell time of the latter channel groups.
Step 4: Click "Apply" to save the setting.
5.2.3

Mask

If there is something you don't want to display in the live image. You can set mask. For a given channel a
maximum of three areas can be masked. If the mask function is not available in the added IP camera, the
mask function here will not take effect.
To set up mask area:
Step 1: Enter into MenuSetupLive Mask interface.
Step 2: Click Setting button to go into live image.
Step 3: Press and drag the left mouse button to set mask area as shown below.
Step 4: Right click to exit the mask setting interface.
button to set up the dwell time of the previous channel groups. Click

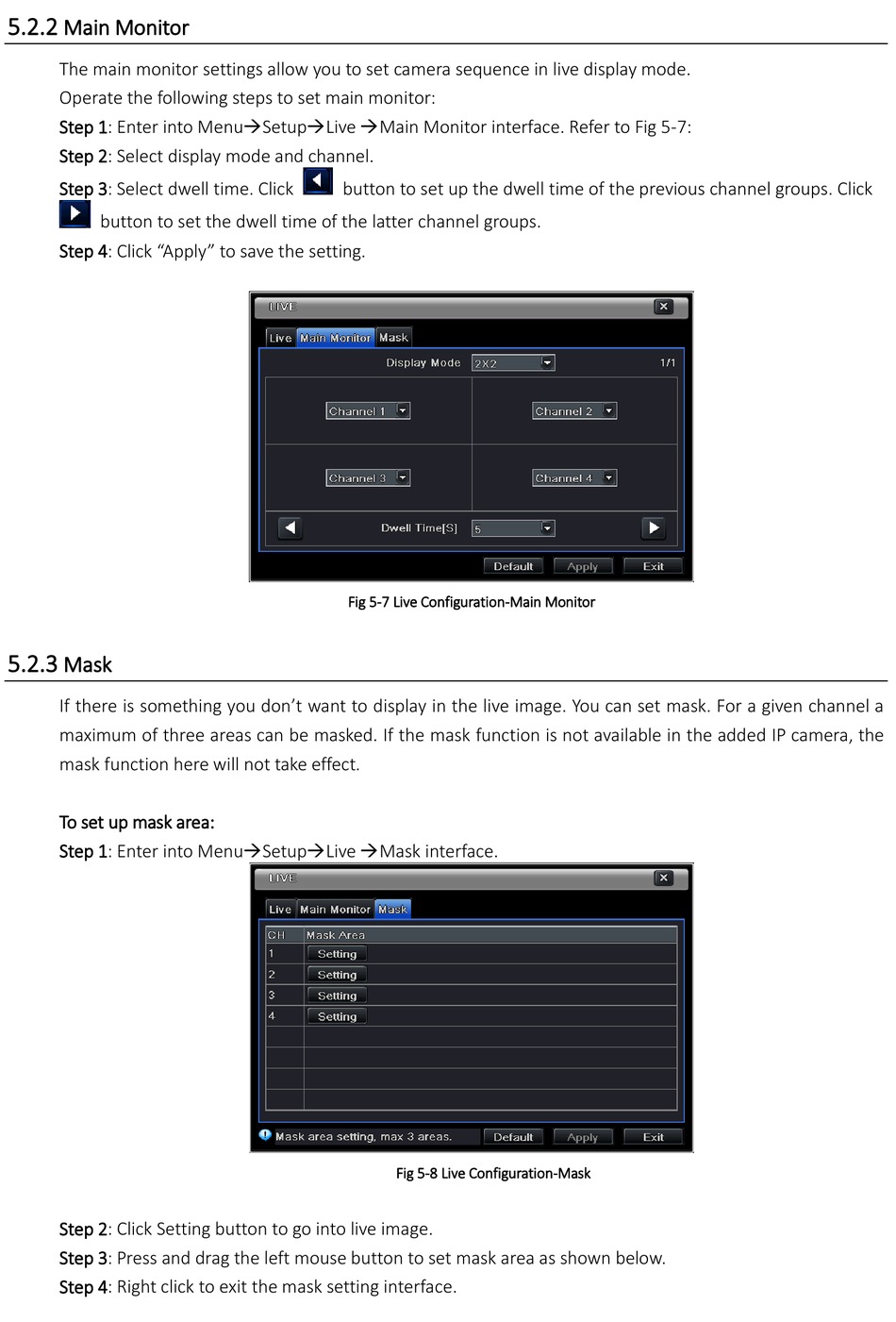

Fig 5-7 Live Configuration-Main Monitor
Fig 5-8 Live Configuration-Mask
