Main Menu Setup Guide

Click right mouse or press Exit/Fn button on the front panel to display the main menu toolbar on the bottom
of the screen. Refer to Fig 5-1:
Click the icon beside the screen mode to display a channel select dialog.
Screen Mode: You can choose a screen display mode to show the live images.
PIP: Click this button to set PIP. Click this button to choose the bigger picture and then click the little PIP
button beside the word "None" to set the smaller picture. After that, you can see a picture in picture.
Dwell: Dwell means to display live images from different cameras in a sequence. The images may be
displayed as a single channel or in a grid fashion from different cameras. Dwell mode is enabled only when
the chosen display mode is not able to display all the available cameras.
Color: If this button is enabled, you can adjust the color of live images.
E-Zoom: Single channel large screen electronic amplification.
Audio: Enable sound.
PTZ: Click the PTZ button to control rotation position, speed and auto scan of the PTZ connected to the IP
camera.
Record: Click this button to start/stop recording.
Playback: Click this button to playback the recorded files.
You can click Move Tool button and drag it anywhere with the left mouse to move the main menu bar
anywhere.
Click Main Menu button to pop up a window as Fig 5-2; you can also press MENU button on the front panel
or operate with remote controller to display the main menu. Clicking Setup icon will pop up the
configuration menu:

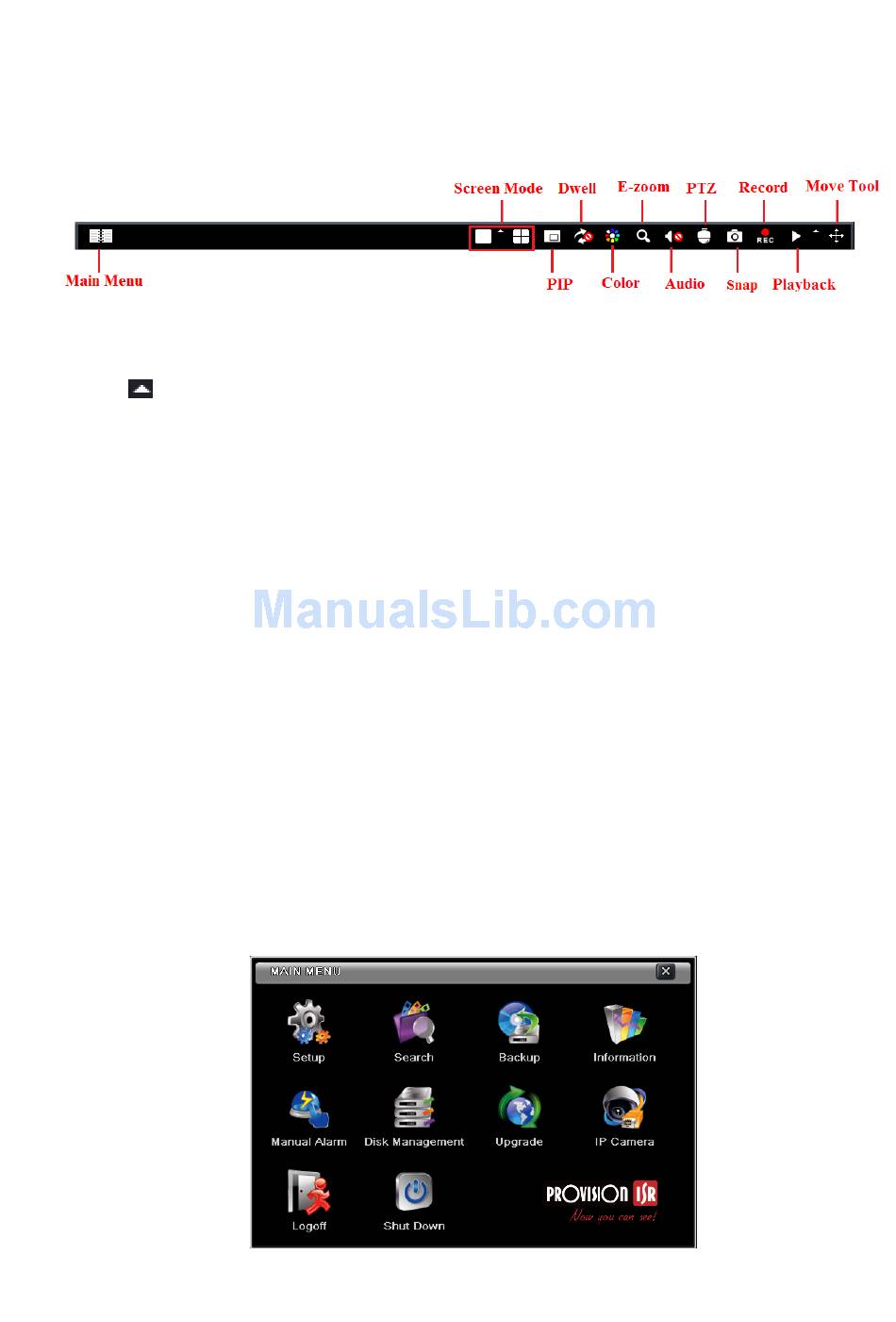

Fig 5-1 Main Menu Toolbar
Fig 5-2 Main Menu
