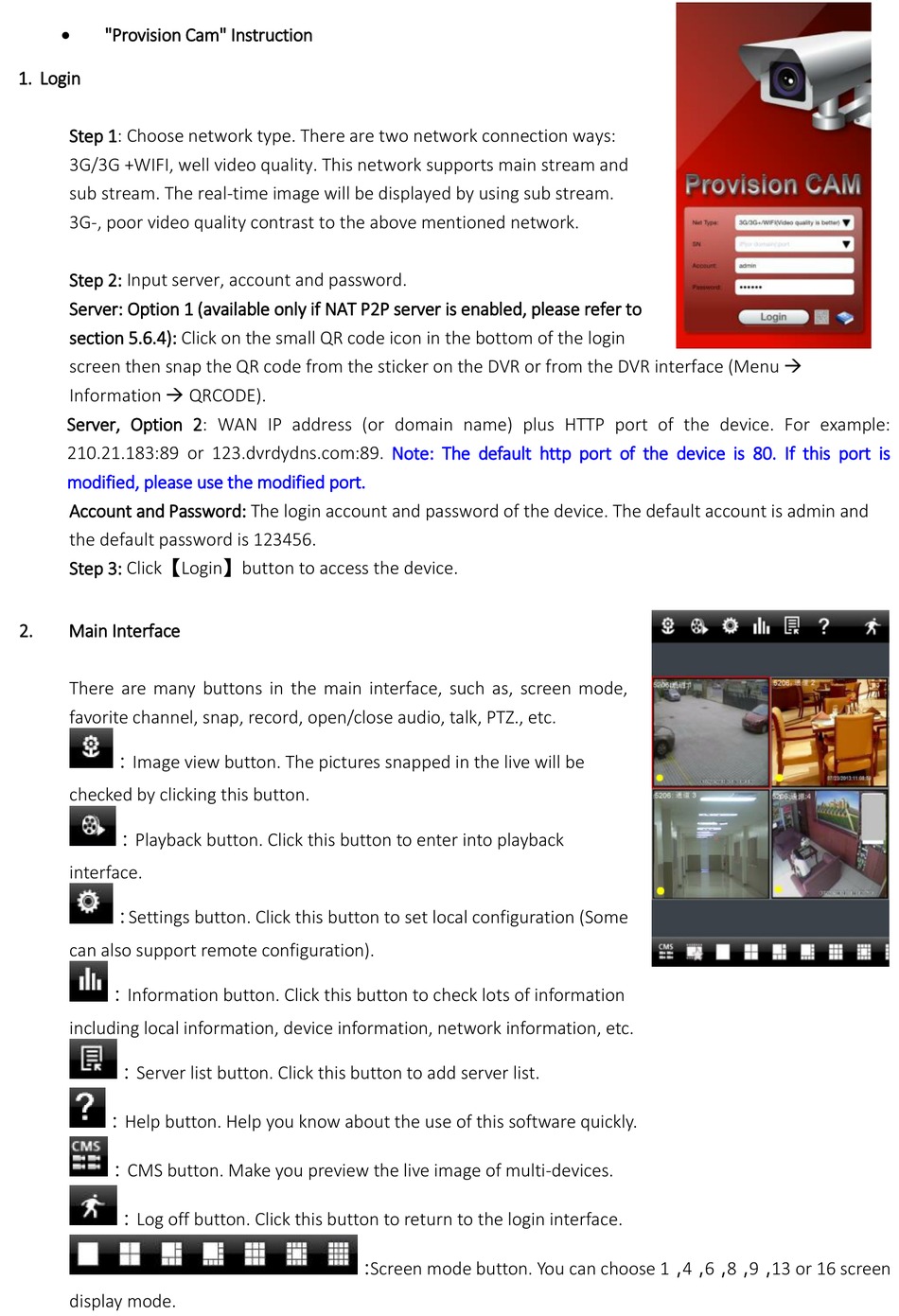

"Provision Cam" Instruction
1. Login
Step 1: Choose network type. There are two network connection ways:
3G/3G +WIFI, well video quality. This network supports main stream and
sub stream. The real-time image will be displayed by using sub stream.
3G-, poor video quality contrast to the above mentioned network.
Step 2: Input server, account and password.
Server: Option 1 (available only if NAT P2P server is enabled, please refer to
section 5.6.4): Click on the small QR code icon in the bottom of the login
screen then snap the QR code from the sticker on the DVR or from the DVR interface (Menu 
Information  QRCODE).
Server, Option 2: WAN IP address (or domain name) plus HTTP port of the device. For example:
210.21.183:89 or 123.dvrdydns.com:89.
modified, please use the modified port.
Account and Password: The login account and password of the device. The default account is admin and
the default password is 123456.
Step 3: Click【Login】button to access the device.
2. Main Interface
There are many buttons in the main interface, such as, screen mode,
favorite channel, snap, record, open/close audio, talk, PTZ., etc.
：Image view button. The pictures snapped in the live will be
checked by clicking this button.
：Playback button. Click this button to enter into playback
interface.
： Settings button. Click this button to set local configuration (Some
can also support remote configuration).
：Information button. Click this button to check lots of information
including local information, device information, network information, etc.
：Server list button. Click this button to add server list.
：Help button. Help you know about the use of this software quickly.
：CMS button. Make you preview the live image of multi-devices.
：Log off button. Click this button to return to the login interface.
display mode.
Note: The default http port of the device is 80. If this port is
： Screen mode button. You can choose 1， 4， 6， 8， 9， 13 or 16 screen
