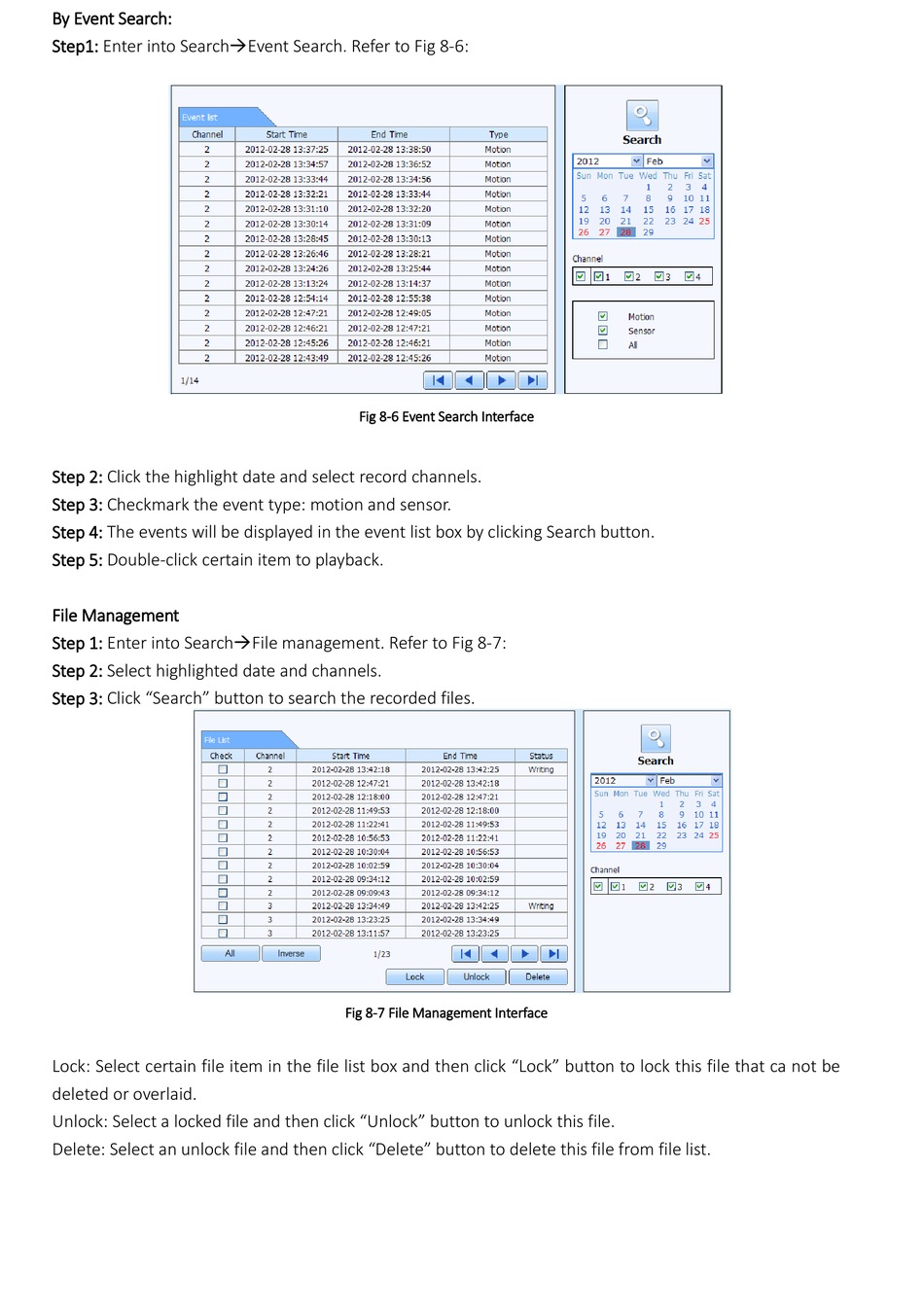

Provision ISR IP series User Manual page 55

By Event Search:
Step1: Enter into SearchEvent Search. Refer to Fig 8-6:
Fig 8-6 Event Search Interface
Step 2: Click the highlight date and select record channels.
Step 3: Checkmark the event type: motion and sensor.
Step 4: The events will be displayed in the event list box by clicking Search button.
Step 5: Double-click certain item to playback.
File Management
Step 1: Enter into SearchFile management. Refer to Fig 8-7:
Step 2: Select highlighted date and channels.
Step 3: Click "Search" button to search the recorded files.
Fig 8-7 File Management Interface
Lock: Select certain file item in the file list box and then click "Lock" button to lock this file that ca not be
deleted or overlaid.
Unlock: Select a locked file and then click "Unlock" button to unlock this file.
Delete: Select an unlock file and then click "Delete" button to delete this file from file list.
