Step 2: Input relay name and select hold time.
Step 3: Enter into Schedule tab. This will go into schedule setup interface. The setting steps for schedule
for alarm out are similar to normal schedule setup (see Chapter 5.4.1 for details).
This step is very important for alarm out. Even if you have enabled alarm out in the motion based alarm or
sensor based alarm, you will not see the result of alarm out if no schedule is added here.
To set up buzzer:
Step 1: Enter into MenuSetupAlarm Out Buzzer.
Step 2: Checkmark Buzzer and set buzzer alarm hold time. This would trigger the buzzer when the system
is on an alarm.
5.6

Network Configuration

Network configuration includes four submenus: network, Email, server and other settings. Network
settings must be configured if NVR is used for monitoring over network.
5.6.1

Network

To set up network:
Step 1: Enter into MenuSetupNetworkNetwork tab. Refer to Fig 5-23:
Step 2: Set HTTP port. The default HTTP port is 80. If the value is changed, you shall add the port number
when typing IP address in IE address blank. e.g. If HTTP port is set to 82 and IP address is

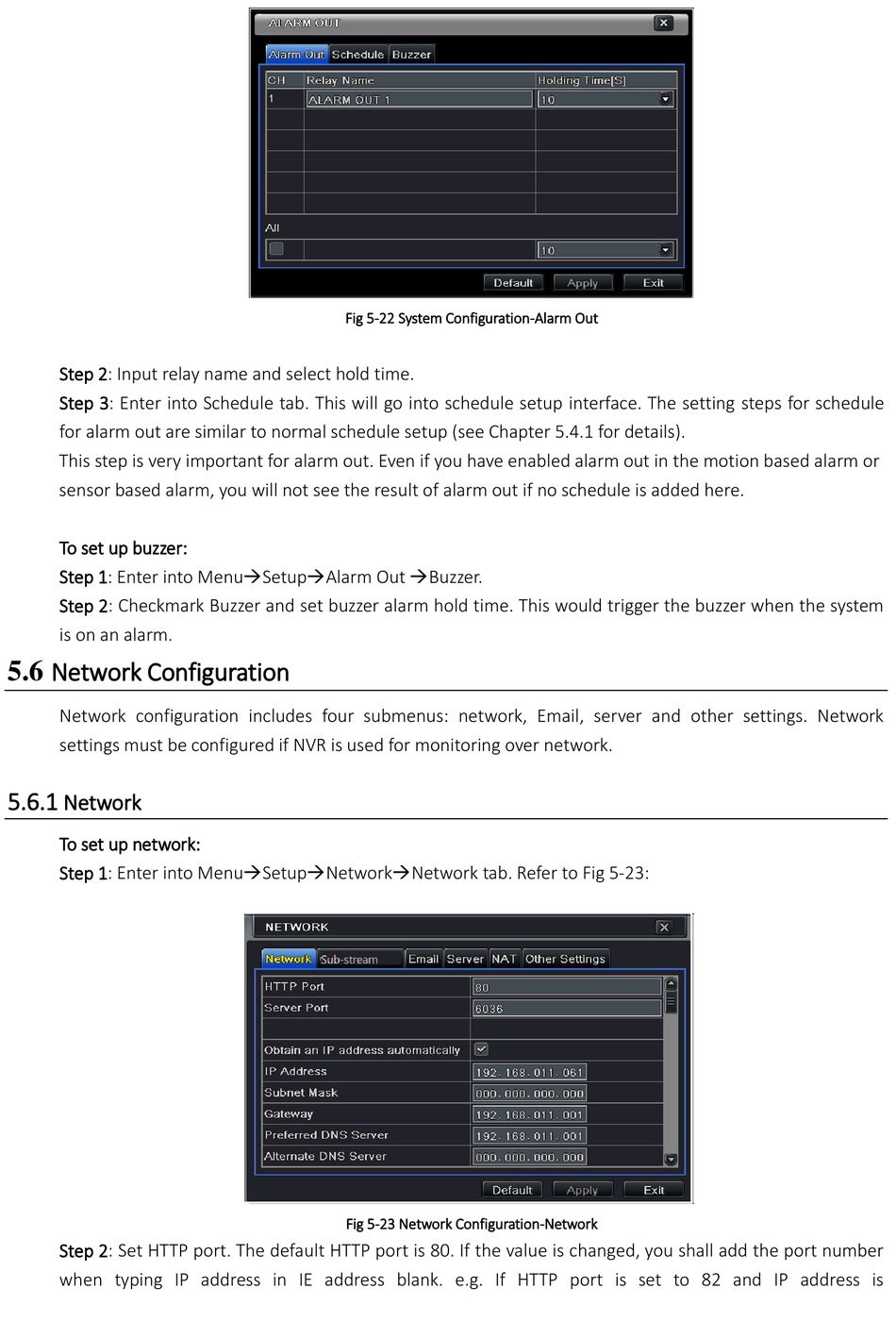

Fig 5-22 System Configuration-Alarm Out
Fig 5-23 Network Configuration-Network
