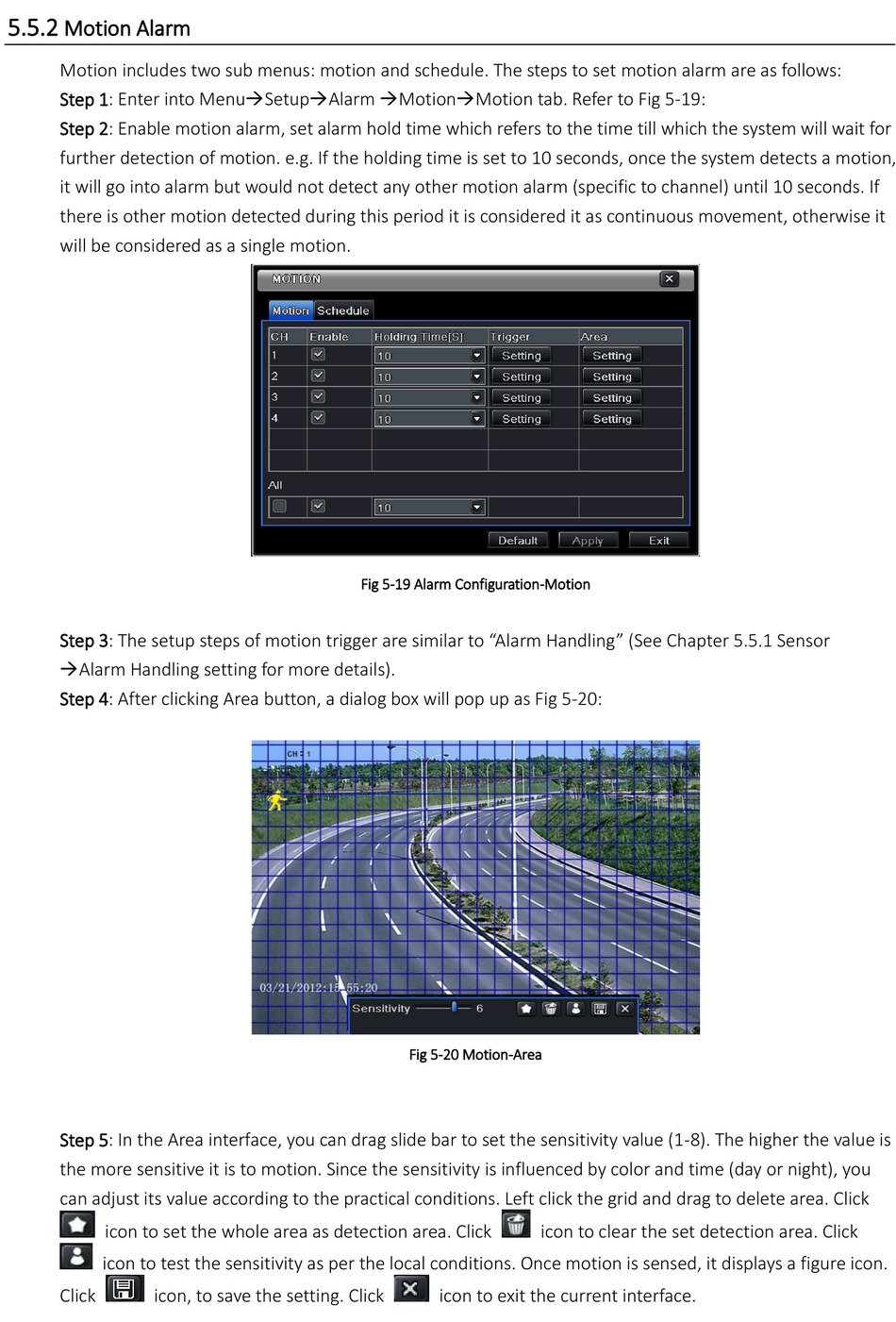

Motion Alarm - Provision ISR IP series User Manual

5.5.2

Motion Alarm

Motion includes two sub menus: motion and schedule. The steps to set motion alarm are as follows:
Step 1: Enter into MenuSetupAlarm MotionMotion tab. Refer to Fig 5-19:
Step 2: Enable motion alarm, set alarm hold time which refers to the time till which the system will wait for
further detection of motion. e.g. If the holding time is set to 10 seconds, once the system detects a motion,
it will go into alarm but would not detect any other motion alarm (specific to channel) until 10 seconds. If
there is other motion detected during this period it is considered it as continuous movement, otherwise it
will be considered as a single motion.
Fig 5-19 Alarm Configuration-Motion
Step 3: The setup steps of motion trigger are similar to "Alarm Handling" (See Chapter 5.5.1 Sensor
Alarm Handling setting for more details).
Step 4: After clicking Area button, a dialog box will pop up as Fig 5-20:
Fig 5-20 Motion-Area
Step 5: In the Area interface, you can drag slide bar to set the sensitivity value (1-8). The higher the value is
the more sensitive it is to motion. Since the sensitivity is influenced by color and time (day or night), you
can adjust its value according to the practical conditions. Left click the grid and drag to delete area. Click
icon to set the whole area as detection area. Click icon to clear the set detection area. Click
icon to test the sensitivity as per the local conditions. Once motion is sensed, it displays a figure icon.
Click icon, to save the setting. Click icon to exit the current interface.
