  • Page 2: User Manual

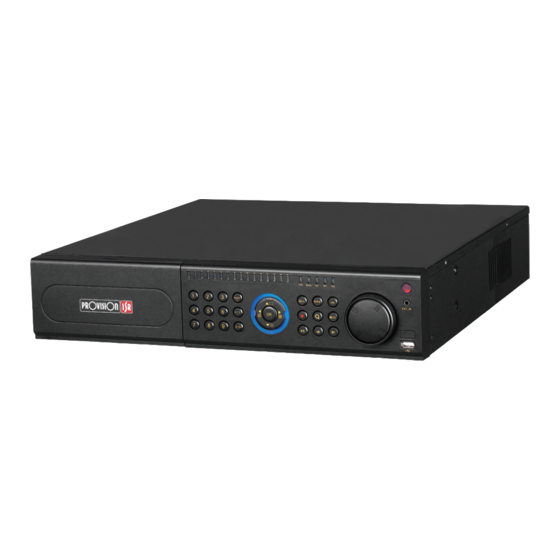

    PROVISION-ISR NVR-16400 User Manual 16CH 720P Real-Time Conventional NVR For H.264 16-channel network video recorder All rights reserved...
  • Page 3  Refer all servicing to qualified service personnel.  Do not try to repair the device by yourself without technical aid or approval.  This manual is suitable for the 16 channel Network video recorder (NVR-16400)

  • Page 4: Table Of Contents

    Contents Introduction ..........................6 1.1 NVR Introduction ......................6 1.2 Main Features ......................... 6 Hardware Installation ....................... 8 2.1 Install Hard Drive ......................8 2.2 Front Panel Descriptions ....................9 2.3 Rear Panel Instructions ....................10 2.4 Remote Controller ....................... 11 2.5 Control with Mouse .....................
  • Page 5 5.6.2 Email ........................... 33 5.6.3 Server ........................... 33 5.6.4 Other Settings ........................34 5.7 User Management Configuration ................37 5.8 Advanced ........................38 5.8.1 Reset ............................ 38 5.8.2 Import/Export ........................39 5.8.3 Block/Allow List ......................... 39 Search, Playback & Backup ....................40 6.1 Time Search ........................

  • Page 6: Introduction

    1 Introduction 1.1 NVR Introduction This is a standard 16 CH real-time 1080P/720P/D1 high resolution NVR, which adopts the most advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system. This model supports 16CH IP input, simultaneous 16 CH playback, and HDMI 1080P high resolution display.
  • Page 7 SECURITY  Customize user right: log search, system setup, two way audio, file management, disk management, remote login, live view, manual record, and playback.  Support 1 administrator and 63 user designated usernames and passwords.  Support event log recording and checking, events unlimited NETWORK ...

  • Page 8: Hardware Installation

    Hardware Installation Check the unit and the accessories after getting the device. Please don’t power up the unit till the physical installation is complete. 2.1 Install Hard Drive Notice: 1. This series supports one SATA hard drive. Please use the hard drive the manufacturers recommend specially for security and safe field.

  • Page 9: Front Panel Descriptions

    2.2 Front Panel Descriptions Notice: The front panel descriptions are only for reference; please make the object as the standard. Front panel description: Type Item Name Description Work state Power Power indicator, when connection , the light is blue indicator When HDD is writing and reading , the light is blue When access to network , the light is blue Backup...

  • Page 10: Rear Panel Instructions

    2.3 Rear Panel Instructions The interfaces of the rear panels are for reference only. Please take the real object as standard. Fig 2-5 Rear Panel for 16-ch Item Name Description Audio out Audio output, connect to the sound box Audio in 1 CH audio input Alarm in Alarm Inputs for connecting sensors...

  • Page 11: Remote Controller

    2.4 Remote Controller It uses two AAA size batteries.  Open the battery cover of the Remote Controller.  Place batteries. Please take care of the polarity (+ and -).  Replace the battery cover. Button Function Manually start/stop record (manual mode). Search Open the search menu.

  • Page 12: Control With Mouse

    2.5 Control with Mouse 2.5.1 Connect Mouse It supports USB mouse through the ports on the rear panel. If mouse is not detected or doesn't work, check below steps: 1. Make sure the mouse is plugged in the USB mouse port. 2.

  • Page 13: Basic Function Instruction

    Basic Function Instruction 3.1 Startup and Shutdown Please make sure all the connections are done properly before you power on the unit. Proper startup and shutdown are crucial to expanding the life of your NVR. 3.1.1 Startup Step 1: Connect with the source power. Step 2: The device will boot and the power LED would turn blue.

  • Page 14: Live Preview

    Fig 3-1 Login Notice: The default user name and password is “admin” and 123456”. For complete operational steps for changing password, adding or deleting user please refer to section 5.7 User management Configuration. 3.3 Live Preview Fig 3-2 Live Preview Interface Symbol Meaning Green...
  • Page 15 Fig 3-3 Live Playback...

  • Page 16: Add Ip Cameras

    Add IP Cameras This chapter mainly introduces how to connect multiple IP cameras through NVR. Once you finish adding IP cameras, you can see the live images through the monitor of the NVR. Here we will introduce how to add cameras via WAN/LAN network. To add IP cameras via LAN: Step 1: Please Enter into MenuIP Camera tab.
  • Page 17 Step 3: Choose the searched devices and click “OK” button to add these devices. The added cameras will be listed in the device management interface. Step 4: Choose the camera device and click “Setup” button to enable the camera. Refer to Fig 4-3.

  • Page 18: Main Menu Setup Guide

    Main Menu Setup Guide Click right mouse or press ESC/Stop button on the front panel to display the main menu toolbar on the bottom of the screen. Refer to Fig 5-1: Fig 5-1 Main Menu Toolbar Click the icon beside the screen mode to display a channel select dialog. Screen Mode: You can choose a screen display mode to show the live images.

  • Page 19: Basic Configuration

    System Setup 5.1 Basic Configuration Basic configuration includes three sub menus: system, date & time and DST. 5.1.1 System Step 1: Enter into MenuSetupBasicSystem. Refer to Fig 5-3: Fig 5-3 Basic Configuration-Basic Step 2: In this interface you can setup the device name, device ID, video format, max network user, VGA resolution and language.

  • Page 20: Date & Time

    Video Output: Resolution of live display interface. Language: To set up the menu language. Note: After changing the language and video output, the device needs to login again. Logout After (Minutes): You can setup the screen interval time (30s, 60s, 180s, 300s). If there is no any operation within the setting period, the device will auto logout and return to the login interface.

  • Page 21: Live Configuration

    Step 2: In this interface, enable daylight saving time, time offset, mode, start & end month/week/date, etc. Step 3: Click “Apply” button to save the setting. 5.2 Live Configuration Live configuration includes three submenus: live, main monitor and mask. 5.2.1 Live In this interface, you can set up camera name.

  • Page 22: Main Monitor

    Step 2: In this interface, you can adjust brightness, hue, saturation and contrast in live. Click “OK” button to save the setting. 5.2.2 Main Monitor The main monitor settings allow you to set camera sequence in live display mode. Operate the following steps to set main monitor: Step 1: Enter into MenuSetupLive Main Monitor interface.

  • Page 23: Record Configuration

    Step 2: Click Setting button to go into live image. Step 3: Press and drag the left mouse button to set mask area as shown below. Step 4: Right click to exit the mask setting interface. Step 5: Click Apply button to save the setting. To delete mask area Step 1: Click Setting button in the mask interface.

  • Page 24: Record Bitrate

    Parameter Meaning Record To enable/disable recording for the channel Audio To enable/disable audio recording for the channel 5.3.2 Record Bitrate Step 1: Enter into MenuSetupRecord Record Bitrate. Refer to Fig 5-11: Step 2: Set up rate, resolution, quality, encode and max bit stream. Step 3: Select “All”...

  • Page 25: Stamp

    Fig 5-12 Record Configuration-Time Pre-alarm Record Time: Set the time in seconds to pre-record before the actual recording begins. Post-alarm Record Time: Set the time in seconds to post-record after the actual recording has finished, five options: 10s, 15s, 20s, 30s, 60s, 120s, 180s and 300s. Expire Time: Set the expiration time for recorded video.

  • Page 26: Recycle Record

    Before drag After drag Step 3: Select “All” to set up all channels with the same parameters. 5.3.5 Recycle Record This option is used to recycle the HDD space once it is full. If enabled, the system will automatically delete the old records and recycle the space if it is completely utilized. The setting steps are as follows: Step 1: Enter into MenuSetupRecord Recycle Record interface;...

  • Page 27: Motion Schedule

    Fig 5-14 Schedule Configuration-Schedule You can also set week schedule by double-clicking in the grinding area. This will take you to see a dialog box as Fig 5-15. Step 1: Select a day and click “Add” button to schedule start time and end time. Then click to save.

  • Page 28: Sensor Schedule

    5.4.3 Sensor Schedule This tab allows to set schedule for sensor based recording. The setting steps are as follows: Step 1: Enter into MenuSetupScheduleSensor interface. Step 2: The setup steps for schedule for sensor based recording are similar to normal schedule setup (see Chapter 5.4.1 Schedule for details).
  • Page 29 Fig 5-17 Alarm Configuration-Sensor-Alarm Handling Step 6: Enter into alarm tab to select the options to handle alarm. Fig 5-18 Alarm Handling-Trigger Buzzer: If selected, the local buzzer would be activated on an alarm. Show Full Screen: If selected, there will pop up the chosen channel on the monitor on an alarm trigger.

  • Page 30: Motion Alarm

    5.5.2 Motion Alarm Motion includes two sub menus: motion and schedule. The steps to set motion alarm are as follows: Step 1: Enter into MenuSetupAlarm MotionMotion tab. Refer to Fig 5-19: Step 2: Enable motion alarm, set alarm hold time which refers to the time till which the system will wait for further detection of motion.

  • Page 31: Other Alarm

    area. Click icon to clear the set detection area. Click icon to test the sensitivity as per the local conditions. Once motion is sensed, it displays a figure icon. Click icon, to save the setting. Click icon to exit the current interface. Note: Prior to setting motion detection field, it is recommended that you click icon to clear the existing field and set afresh.

  • Page 32: Network Configuration

    Fig 5-22 System Configuration-Alarm Out Step 2: Input relay name and select hold time. Step 3: Enter into Schedule tab. This will go into schedule setup interface. The setting steps for schedule for alarm out are similar to normal schedule setup (see Chapter 5.4.1 for details). This step is very important for alarm out.

  • Page 33: Email

    Step 2: Set HTTP port. The default HTTP port is 80. If the value is changed, you shall add the port number when typing IP address in IE address blank. e.g. If HTTP port is set to 82 and IP address http://192.168.0.25 should...

  • Page 34: Other Settings

    Step 1: In the server interface, select “Enable” as shown in the Fig 5-25. Fig 5-25 Network Configuration-Server Step 2: Check the IP address and port of the transfer media server in the ECMS/NVMS. The default server port for auto report is 2009. If it is modified, please enter into the transfer media interface to check.
  • Page 35 Note: DDNS is used to register for a hostname with DDNS username and password. Provision ISR now allows you to use our mint DDNS server in order to create a virtual address for your DVR on the internet. Each account can create up to 35 different addresses using your preferred domain name address instead of using IP addresses.
  • Page 36 If there is no problem with the domain registration you will see the following message: “Your domain was successfully created.” If you do not see this message, the domain name you requested is already in use and you will be requested to provide an alternate domain name (please note: domain name is sometimes called host name).

  • Page 37: User Management Configuration

    Make sure you have the preferred & alternate DNS servers filled in (under the “Network” settings section): the preferred server should be the Internet gateway and the alternate server should be a different DNS server– for example one of Google's DNS servers (IP 8.8.8.8 or 8.8.4.4) Click the “Test”...

  • Page 38: Advanced

    “Binding PC MAC Address” and input this address. Step 4: Click “OK” to save the setting. Note: When the default value of binding PC MAC Address is 0, the user is not bound with the specified computer. If the bind option is used, the user would be able to log into the NVR only through the specific computer (carrying the MAC address).

  • Page 39: Import/Export

    5.8.2 Import/Export User can export the data files into mobile storage devices as backup function, and then import specified data files from mobile storage device to NVR. 5.8.3 Block/Allow List Fig 5-30 Block/Allow List Here authorized user can prohibit computer users within a certain IP address range from accessing to NVR or allow computer users within a certain IP address range to access NVR.

  • Page 40: Search, Playback & Backup

    6 Search, Playback & Backup Search configuration includes four submenus: time search, event search, file management and image. 6.1 Time Search Step 1: Enter into MenuSearch Time Search. Refer to Fig 6-1: Fig 6-1 Search Configuration-Time Search Step 2: Select date and channels on the right hand side and press the ‘Search’ button. A date with highlighted borderline indicates presence of data.

  • Page 41: File Management

    Fig 6-2 Search Configuration-Event Search Step 2: Select date and channels on the right hand side. A data with highlighted borderline indicates presence of data. Step 3: Checkmark Motion, sensor or All accordingly. Step 4: Click Search button to display the searched event information in the event list box. Step 5: Double check a certain record file to playback.

  • Page 42: Search By Image

    deleted or covered. Unlock: Select a locked file and click “Lock” button to unlock this file Delete: Select an unlocked file and click “Delete” button to delete this file. 6.4 Search by Image Step 1: Enter into Menu  Search  Image tab. Step 2: Select data and channels on the right hand side.
  • Page 43 Fig 6-5 Backup Configuration Step 3: Select a required file or checkmark “All” to select all data files. Click Backup button to display Backup information window. Step 4: In the backup information interface, you can check the relevant information of backup files, storage type, save file type, etc.

  • Page 44: Manage Nvr

    7 Manage NVR 7.1 Check System Information Check system information includes six submenus: system, event, log, network, online user and record. 7.1.1 System Information In this interface, user can check the hardware version, MCU version, kernel version, device ID, etc. 7.1.2 Event Information In this tab, you can search for events like motion, sensor and video loss.

  • Page 45: Disk Management

    7.3 Disk Management Format the disk Step1: Enter into disk management tab. Note: please format the hard disk before recording. If formatted, it will show the status of the disk-free space, and total space at the bottom of screen. Step2: Click Refresh button to refresh the disk information in the list box. Step3: Select a hard disk and click Format button to start format.

  • Page 46: Remote Surveillance

    8 Remote Surveillance 8.1 IE Remote Surveillance In order to view the NVR from a network, it must be connected to a LAN/WAN or internet. The network setup should be done accordingly. Please refer to 5.6 Network Setup. This NVR supports IE browser, on Windows XP and Vista platform.

  • Page 47: Remote Surveillance Through Apple Pc

    (user can enter into Main menuInformationNetwork interface to check IP address). Step 3: If users want to utilize dynamic domain name, please apply for a domain name in a DNS server supported by the NVR or router. Then add to the NVR. Step 4: The following setting steps are as the same as Step3 and Step 4 in Point 1.
  • Page 48 Step 2: Enter into Network interface and then click “Ethernet Connected” to check the internet connection of Apple PC. Step 3: After acquiring the IP address, Subnet Mask and so on, please enter into the NVR’s Main MenuSetupNetwork interface to manually input IP address, Subnet Mask and Gateway according to the configuration of PC.

  • Page 49: On Wan

    Input the name and password of Apple PC and then click “OK” to install this Active X control. Step 6: After finishing installing the Active X control, please quit from the Safari browser. Right click Safari icon on the desktop and then select “Quit” button to quit the browser. Then restart Safari browser.
  • Page 50 Symbol and function Definitions: Channel indicator Screen display mode Volume Start IE record Snap Start talking Start recording Playback Master/sub stream status Color P.T.Z control button to record manual and the record file will be saved in user’s PC. Note: Click Screen display mode: Snap pictures The system will automatically capture pictures and save those pictures in the computer by...
  • Page 51 'Iris' button. Click button near 'Iris' button to increase light of the dome. Click button near 'Iris' button to decrease light of the dome. 'Zoom' button. Click button near 'Zoom' button to zoom in the locale picture of this camera. Click button near 'Zoom' button to zoom out the locale picture of this camera.

  • Page 52: Remote Playback & Backup

    8.4 Remote Playback & Backup 8.4.1 Remote Playback Click button to enter into record playback interface. Refer to Fig 8-3: Select the record date and channels and double-click the file name in the record file list box. Then user can play that file and preview the picture. Fig 8-3 Play Record File Interface This NVR supports remote time search, event search and file management.
  • Page 53 Step 4: Set the Start time and display mode in the area① as required. Step 5: Click “play” button to playback. Step 6: Click the relevant buttons in the interface for operation, like FF, pause, change channel mode, research, etc. Please refer to Fig 8-5: Fig 8-5 Time Search Playback By Event Search: Step 1: Enter into SearchEvent Search.

  • Page 54: Remote Backup

    Step 3: Click “Search” button to search the recorded files. Fig 8-7 File Management Interface Lock: Select certain file item in the file list box and then click “Lock” button to lock this file that ca not be deleted or overlaid. Unlock: Select a locked file and then click “unlock”...

  • Page 55: Remote System Configuration

    8.5 Remote System Configuration You can do remote setup of the device which includes functions like basic, live configuration, record, schedule, alarm, network and user configuration. You should select an option from the menu list on the left and then setup the relative parameters. Only one user can do configuration setup at a given point of time.
  • Page 56 Fig 8-10 Remote Information Search Note: There may be slight differences with respect to functions of remote surveillance between through IE and through Apple PC. Here we only take IE remote access for example.

  • Page 57: By Phones With Iphone Os

    8.8 By Phones with iPhone OS  Install through Iphone. Step 1: Open App Store software as shown in the figure on the left. Step2: Search “Provision Cam” and click “Free” button as shown in the figure on the right. Step 3: Click “Install App”...
  • Page 58  "Provision Cam" Instruction 1. Login Step 1: Choose network type. There are two network connection ways: 3G/3G +WIFI, well video quality. This network supports main stream and sub stream. The real-time image will be displayed by using sub stream. 3G-, poor video quality contrast to the above mentioned network.
  • Page 59 ：Screen mode button. You can choose 1，4，6，8，9，13 or 16 screen display mode. ：Favorite channel display button. If you save your favorite channel in the favorite server list, clicking this button will directly play all favorite channels you have saved. ：Snap button. Choose the channel and click this button to capture the channel image. ：Local record button.
  • Page 60 all devices. Then you can click “Restore” button to restore all device information after you re-install the client or delete the device uncarefully.  indicates the device has been connected;  indicates the device is connecting;  indicates the device is not connected. Live Preview Once you access the device, the system will automatically display the screen mode in accordance with the channel number of the device...
  • Page 61 Fig 4 Fig 5 CMS Function This function makes multi-device managements and preview come true. Step 1: Click to enable CMS function. When this icon turns green, it means this function is enabled. Step 2: Click to choose channel as shown in the right picture.
  • Page 62  Favorite groups of CMS Enable CMS function and enlighten the group to save the favorite groups as shown in the following picture on the right. Then click button to play. Only one favorite group can be collected. ：Color means the channel or group has been collected. Grey means the channel or group isn’t collected.

  • Page 63: By Phones With Android

    8.9 By Phones with Android Software Installation Step 1: Run “Play Store” (or Google market) program. Step 2: Search “Provision Cam”. Step 3: Press “Install” button. Step 4: Install the software subject to the notes. Once the downloading is done, the software will install automatically Login Menu Step 1: Configure the network of your device and mobile phone.
  • Page 64 Record Playback: first picture previous picture Next picture The last picture Zoom in Zoom out Delete Click “Playback” in the main menu interface to enter playback interface. Then choose the channel you want to playback. This will take you to see the record file. Click this file to play. Pause/Play Stop Forward...
  • Page 65 Settings: In the main menu interface, click “Settings” to enter the settings interface where you can configure local settings. Click “Local” to enter local settings interface. In this interface, you can set favorite channel and storage. Favorite Channel: Check the favorite channels and click “Save” button to save these channels. Then go into live interface and click button to play these favorite channels.

  • Page 66: Appendix A Faq

    Appendix A FAQ Q1. The NVR fails to turn on even after connecting to the power, why? a. The power adapter could have gone bad. Please change a new power adapter. b. The power from the adapter may be not enough for operating the NVR. Please use the power adaptor supplied along with the NVR.
  • Page 67 Q8. ActiveX control cannot be downloaded. How can I do? a. IE browser blocks ActiveX control. Please do setup as per the steps mentioned below. ① Open IE browser. Click Tools-----Internet Options. ② Select Security------Custom Level….Refer to Fig 8-1. ③ Enable all the sub options under “ActiveX controls and plug-ins”. Refer to Fig 8-2. ④...
  • Page 68 Q11: A hard disk is being identified as a new device however it was being used with another NVR of same model. Should it be formatted prior to use? It is possible to migrate an HDD from one NVR to another provided that the NVRs are of the same model and that the HDD being migrated would be used as the sole disk in the new NVR.
  • Page 69 and backup player. Double click icon to install backup player. After you install it, open this player and click “Open Path” button to open your backup file. Next, click play button to play the backup file. Double click the image and then right click to enable audio.

  • Page 70: Appendix B Calculate Recording Capacity

    Appendix B Calculate Recording Capacity You can calculate the size of hard disk according to the storage time and NVR recording settings. The formula is as follows in full frame rate condition. Used space per hour (MB/h) = Bitrate(kbps) ÷ 8 × 3600 ÷ 1024. The below are the details at different settings. Resolution Frame Rate Bit Rate (kbps)

  • Page 71: Appendix C Compatible Devices

    Appendix C Compatible Devices Compatible USB drive after test. Brand Capacity 512MB, 1G, 2GB Netac Kingston Aigo Smatter vider SanDisk 3. Compatible HDD list Brand Capacity Seagate Barracuda 80G/160G/250G/320G /1.5T/2TB/3TB Seagate SV35.3 Seagate Pipeline HD.2 500G Maxtor Diamondmax 160G HITACHI Deskstar 80G/160G WD WD1600JS 160G...

  • Page 72: Appendix D Nvr Specifications

    Appendix D NVR Specifications Model/Specifications NVR-16400 Format ONVIF NVR Number of Channels (PoE) 16 (No) Playback Channels (remote) 16 (4) Live Preview While Playback Loop (Image Capture) No (No) Output Type CVBS,VGA,HDMI Dual Display Case Small 1U Audio Input (Output)
