Provision ISR IP series User Manual page 19

To add IP cameras via WAN:
Step 1: Please enter MenuIP Camera tab. Refer to Fig 4-1.
Step 2: Click "Add" button to pop up a window similar to Fig 4-3. You need to check "Enable" box, select
channel, manufacturer and product model and manually input IP address, server port, username and
password of this device.
Note: If the NVR and the IP cameras you want to add are both in WAN, the IP address of the IP
camera input here must be WAN IP. You should forward the LAN IP address and port of the IP
camera in the router and use its WAN IP address, provided that the IP camera is in local area
network, otherwise, the NVR cannot connect this IP camera.

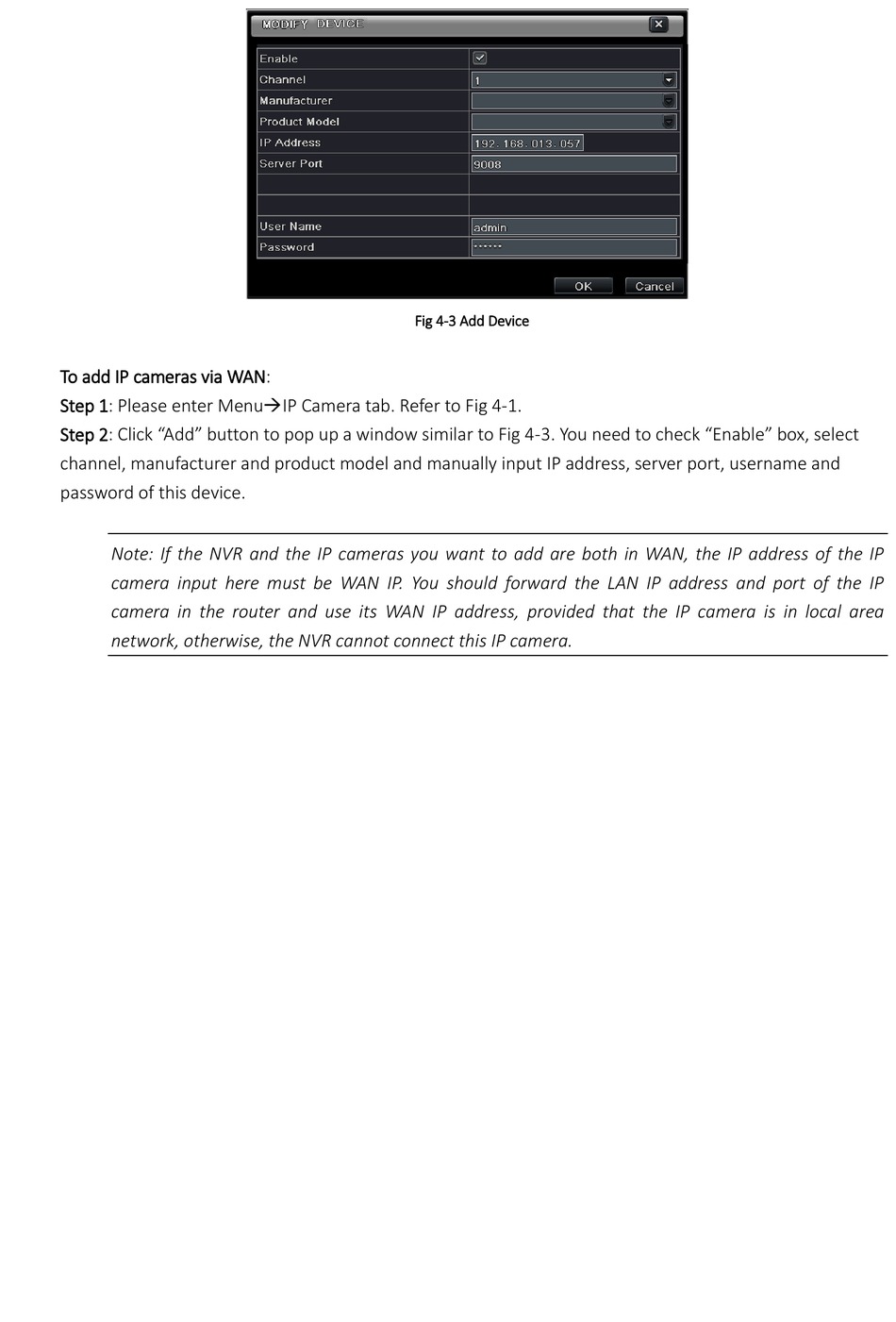

Fig 4-3 Add Device
