Sub-Stream; Email - Provision ISR IP series User Manual

http://192.168.0.25
Step 3: Set server port. The default server port is 6036.
Step 4: Connect internet. There are three ways to connect internet.

If you have a DHCP server running and would like your NVR to automatically obtain an IP address
and other network settings, check the checkbox beside "Obtain an IP address automatically". Then
the device will distribute IP address, subnet mask, and gateway IP and DNS server.

If you want to configure your own settings, disable "Obtain an IP address automatically" item and
input the IP address, subnet mask, gateway IP and DNS server.

If you connect internet through PPPoE, disable "Obtain an IP address automatically" item and check
PPPoE checkbox and then enter username and password. Once the setup is completed, your NVR
will automatically dial up into your network.
Step 5: Test the effectiveness of the network by clicking "Test" button after you set up the network.
Step 6: If the network is well connected, please click "Apply" button to save the setting.
5.6.2

Sub-stream

System configuration  network configuration  sub stream; refer to Fig 4-30
Select fps, resolution, quality, encode and max bit rate
To setup all channels with the same parameters choose "all" and then apply to save relevant setup to all
channels.
Reset to default setting; click the "default" button and then "apply" button to save the setting.
5.6.3

Email

To set up Email:
Step 1: Enter into MenuSetup NetworkEmail tab. Refer to Fig 5-24:
you should input the following IP address: http://192.168.0.25:82 into IE browser.
,

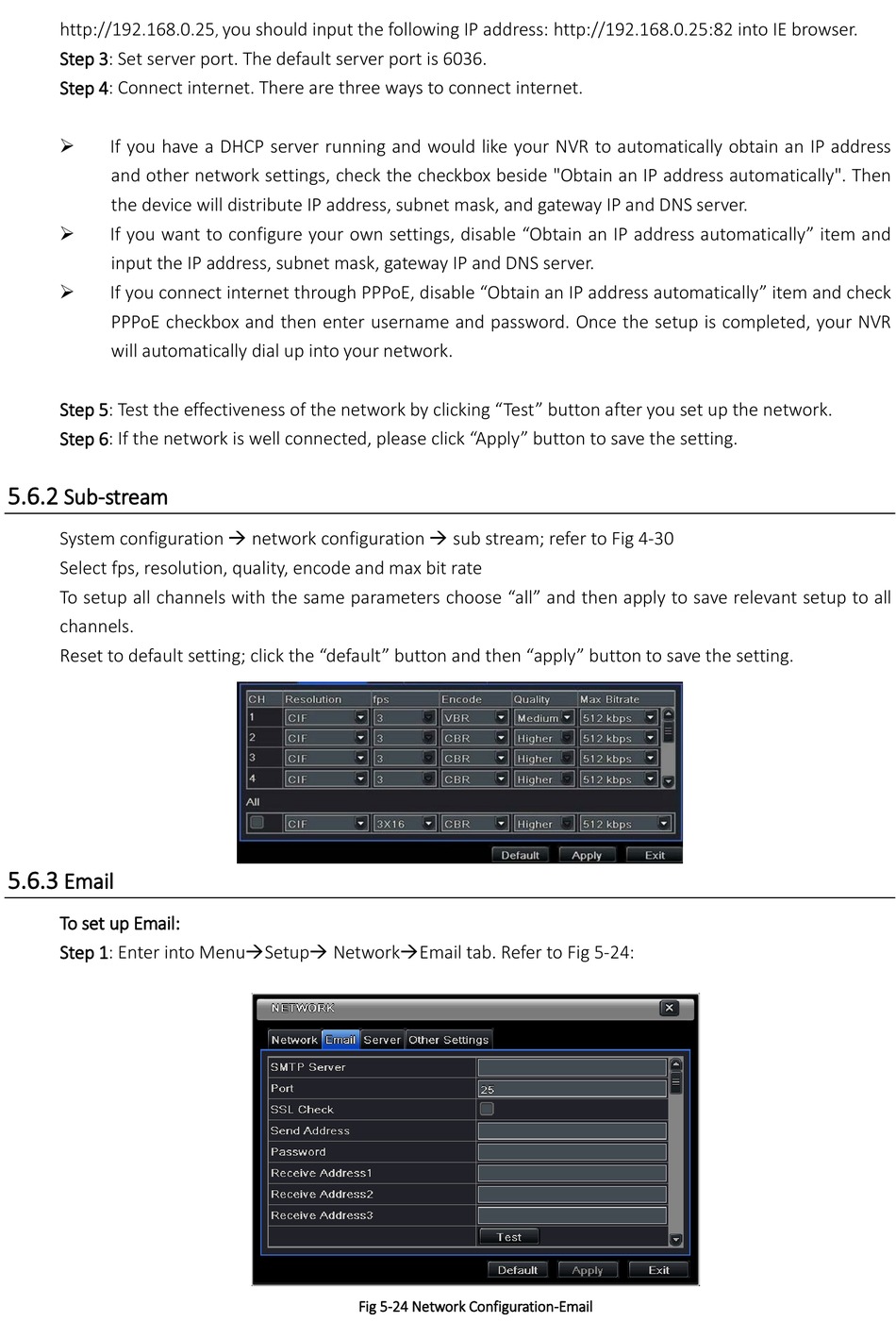

Fig 5-24 Network Configuration-Email
