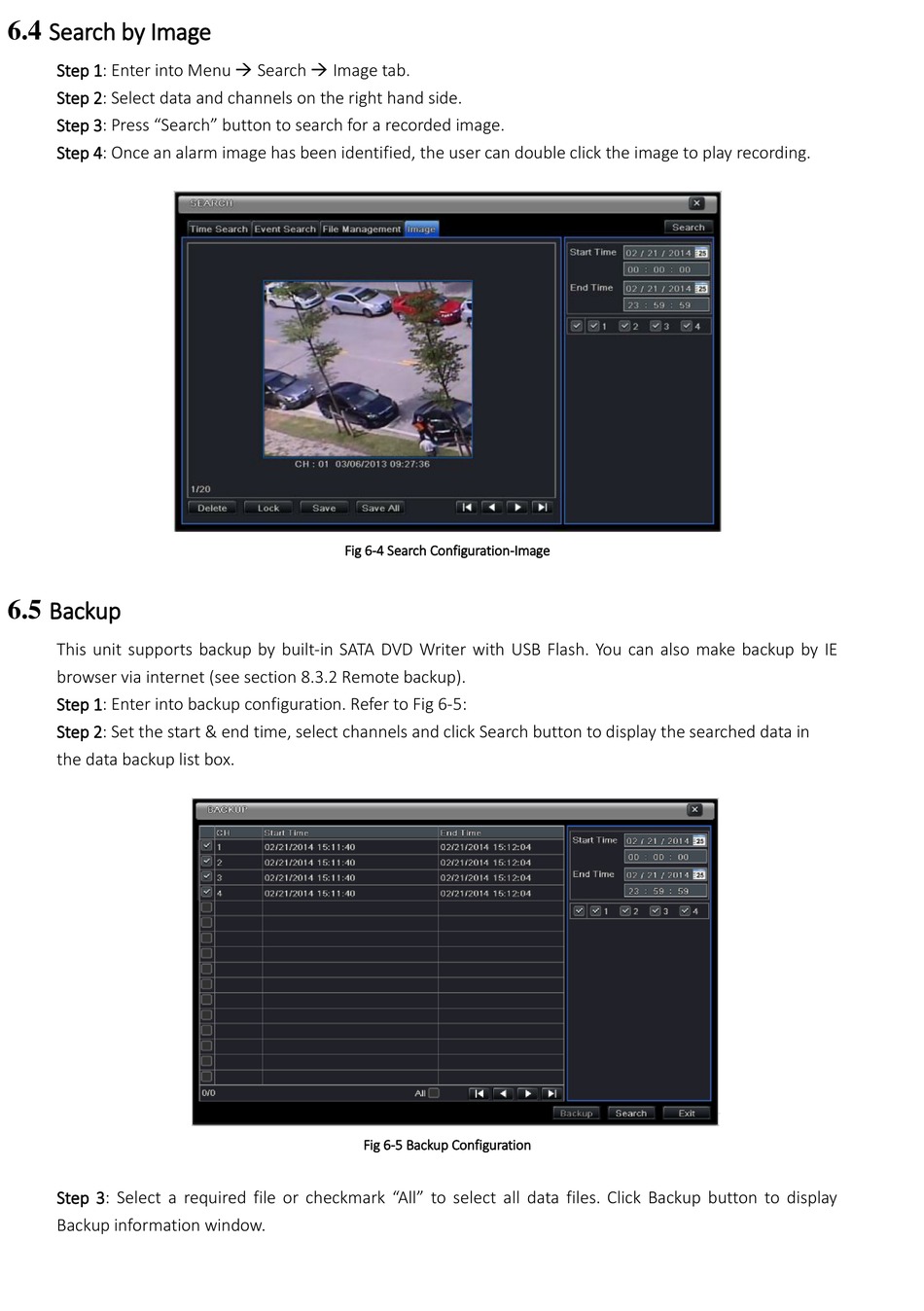

Search by Image

6.4
Step 1: Enter into Menu  Search  Image tab.
Step 2: Select data and channels on the right hand side.
Step 3: Press "Search" button to search for a recorded image.
Step 4: Once an alarm image has been identified, the user can double click the image to play recording.
6.5

Backup

This unit supports backup by built-in SATA DVD Writer with USB Flash. You can also make backup by IE
browser via internet (see section 8.3.2 Remote backup).
Step 1: Enter into backup configuration. Refer to Fig 6-5:
Step 2: Set the start & end time, select channels and click Search button to display the searched data in
the data backup list box.
Step 3: Select a required file or checkmark "All" to select all data files. Click Backup button to display
Backup information window.
Fig 6-4 Search Configuration-Image
Fig 6-5 Backup Configuration
