2.2

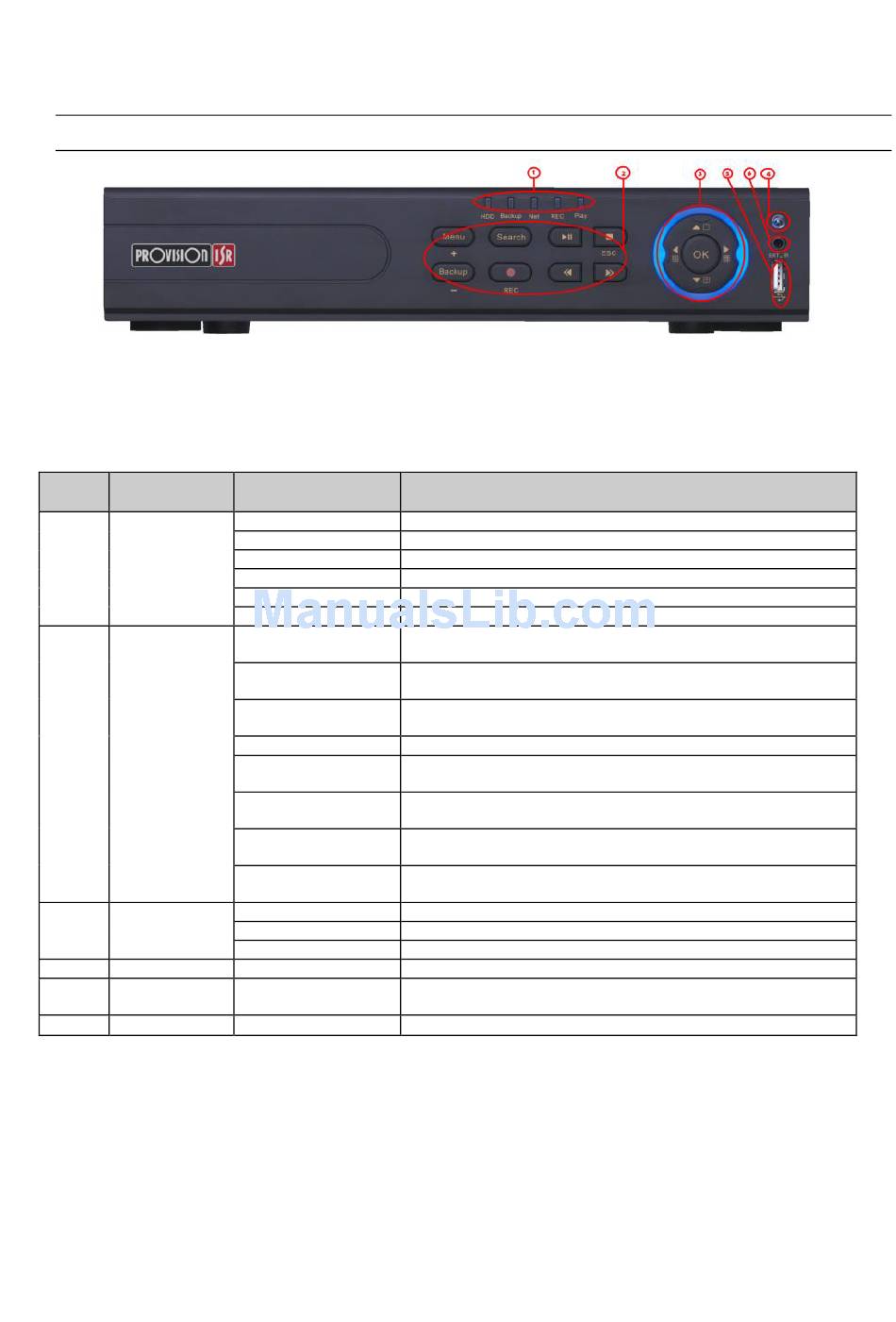

Front Panel Descriptions

Notice: The front panel descriptions are only for reference; please make the object as the standard.
Front panel description:
Type
Item
Work state
indicator
1
Compound
button
2
Input button
3
4 IR receiver
USB
5
External IR
6
Small 1U Case
Name
Power Power indicator, when connection , the light is blue
HDD When HDD is writing and reading , the light is blue
Net When access to network , the light is blue
Backup When backup files and data, the light is blue
Play When playing video, the light is blue
REC When recording, the light is blue
1. Enter menu in live
MENU/+
2. Increase the value in setup
1. Decrease the value in setup
BACKUP/-
2. Enter backup mode in live
1. Record manually
RECORD/FOCUS
2. FOCUS function enables at PTZ mode.
REW/SPEED 1. Rewind key
1. Enter search mode
SEARCH/ZOOM
2.ZOOM function enables at PTZ mode.
1. Enter play interface
PLAY /IRIS
2. IRIS function enables at PTZ mode
1. Fast forward
FF/ P.T.Z.
2. Enter PTZ mode in live
1. Quit play mode
STOP/ESC
2. Exit the current interface or status
Direction button Change direction to select items
Multi-screen Change screen display mode like1/4/9 channel
Enter button Confirm selection
IR For remote controller
external USB devices (USB flash, USB HDD for backup, update firmware,
USB port
USB mouse)
EXT_IR Extension for the IR receiver
Description
2. SPEED function enables at PTZ mode
