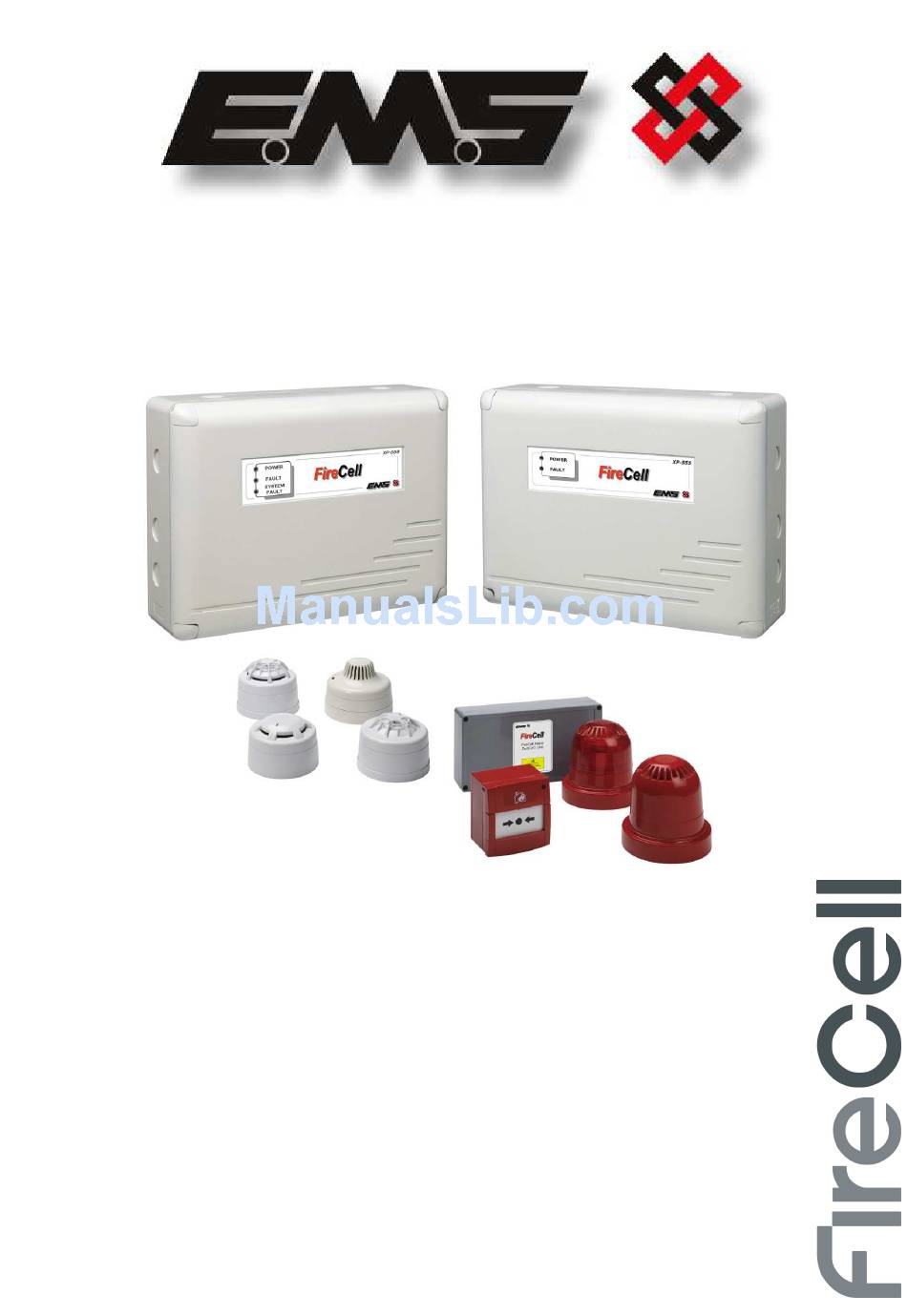

  • Page 1 FIRECELL SYSTEM PROGRAMMING MANUAL...
  • Page 3: Table Of Contents

    6.0 DEVICE ANALOGUE VALUE & FAULT RECTIFICATION PROCESSES ............33 6.1 Signal Level Requirements....................................34 6.2 Flowchart on How to Improve Device Signal Levels.............................1 EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk...
  • Page 4: Introduction

    1.0 INTRODUCTION • This manual provides a comprehensive guide to the programming of the EMS FireCell Radio System. • The EMS FireCell System comprises of Radio Hub capable of receiving information from a maximum of 31 EMS Radio Cluster Communicators (RCC’s). The RCC’s are each capable of receiving information from up to 31 radio devices.
  • Page 5: System Overview

    All installation work should be carried out in accordance with the survey and system design. • It is recommended that the EMS Fire Cell Radio Hub, Radio Cluster Communicators and radio devices are located in accordance with the radio survey and system design. This should be established before installation work commences.
  • Page 6: Packaging

    All products should be kept in their packaging until they are due to be installed, to minimise the risk of damage. Retain all packaging until the installation activities have been completed. Should any product be found to be surplus to requirements, or require returning to EMS, the original packaging should be used.
  • Page 7: Equipment Familiarisation

    Smoke Detector Strobe /Detector Radio Sounder Radio Sounder Beacon Radio Call Point EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk Website:www.emsgroup.co.uk System Programming Manual (Rev2 iss4)
  • Page 8: Device Power, Logon & Ident Orientations

    Combined Sounder/Detector Log On Button 4 way DIL switch (Switch 1 on = power on) Ident Number EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk Website:www.emsgroup.co.uk...
  • Page 9 Log On Button & LED Ident Number Power Jumper Radio Cluster Communicator (RCC) Log On Button EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk Website:www.emsgroup.co.uk...
  • Page 10: Quick Step By Step Guide To System Programming

    Available times are between 1-60 minutes, for more information see Radio Channels within the Menu Structure section. EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk...
  • Page 11: Step 3:- Radio Cluster Communicator (Rcc) Installation And Programming

    Note: Having assigned the Radio Channels we must now re visit ‘Step 4 – Assign RCCs’ to re assign the RCCs. EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk...
  • Page 12: Step 6:- Device Programming And Installation

    Press the ‘Enter’ Button to enter. Confirmation of the addition to the system should now be shown. • Once complete, press the ‘Exit’ button to exit the menu. EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk Website:www.emsgroup.co.uk...
  • Page 13: Controls And Indications

    A yellow LED will illuminate constantly if a checksum error is detected in either the software program or configuration data. EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk...
  • Page 14 The loop connections are used for passing device data to the control panel. Note; Loop 1 connections are used to apply power to the Radio Hub. EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk...
  • Page 15: Radio Cluster Communicator

    RF2 TX LED A yellow LED will flash when data is transmitted to a Radio Hub or Radio Cluster Communicators. EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk...
  • Page 16 A yellow LED will illuminate to indicate that the battery is not charging. Input L, N Mains Connections EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk Website:www.emsgroup.co.uk...
  • Page 17: Radio Devices

    LED will be illuminated. The LED’s will be illuminated for 10 minutes and then automatically time out. EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk...
  • Page 18: Menu Structure & Layout

    Input/Output Device Types RCC Comms Path Chg RCC Comm Path Replace RCC Sounder Mode EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk Website:www.emsgroup.co.uk System Programming Manual (Rev2 iss4)
  • Page 19: Front Display

    The menu structure section details each of the menu options, highlighting their effect within the FireCell system. A quick step by step guide is shown at the end of each of the menu descriptions to aid navigation.
  • Page 20: Menu Explaination

    Multi = Multi-sensor Detector Heat = Heat Detector Ht Heat = High Temperature Detector MCP = Manual Callpoint EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk Website:www.emsgroup.co.uk...
  • Page 21: Fault Status

    In Fire – this indicates the device is currently in a fire alarm condition. In Pre-Alarm – this indicates the device is currently in a Pre-alarm condition. EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk...
  • Page 22: I/0 Status

    The battery must be inserted on the device for continued reliable operation. This is represented by displaying an X symbol. EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk...
  • Page 23: Signal Level

    Control when the RCC number is displayed and then selecting a new RCC from the available list. Front Display Device Status Select Desired Device No RCC** ID***** EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk Website:www.emsgroup.co.uk...
  • Page 24: Software V

    NOTE: RCC’s can only be removed from the system when no devices are allocated to that particular RCC. Front Display Hub/RCC Options Remove RCC EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk Website:www.emsgroup.co.uk...
  • Page 25: Hub / Rcc Status

    RCC Ch1 RFI Det – this description indicates that a radio frequency interference signal has been detected on radio channel 1 that the RCC network communication path is operating on. EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk...
  • Page 26: Signal Level

    Indicates a Caution Signal Level 7dB or less Indicates a Fault Signal Level Indicates No Signal Level Received EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk Website:www.emsgroup.co.uk...
  • Page 27: Manual Update

    Front Display Hub/RCC Options Hub / RCC Status Select Desired Device No Software Version EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk Website:www.emsgroup.co.uk System Programming Manual (Rev2 iss4)
  • Page 28: Radio Channels

    Ch24: 868.924 MHz Ch12: 868.323 MHz Ch28: 869.024 MHz Ch16: 868.423 MHz Ch32: 869.125 MHz EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk Website:www.emsgroup.co.uk System Programming Manual (Rev2 iss4)
  • Page 29: Multiple Rcc Channel Allocation Example

    Ch12: 868.323 MHz Ch28: 869.024 MHz Ch16: 868.423 MHz Ch32: 869.125283 MHz Radio Hub to all RCC’s EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk Website:www.emsgroup.co.uk...
  • Page 30: Rcc Rcc Ch

    Manual Select For example:- Device to RCC Communication path Low Band Ch 4 High Band Ch 29 EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk Website:www.emsgroup.co.uk...
  • Page 31: Advanced

    Input /Output units. Front Display Advanced Individual test EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk Website:www.emsgroup.co.uk...
  • Page 32: Start Fast Test

    30 min cut off which will turn all radio sounders off after 30 minutes to conserve battery life. Any subsequent fire alarm activations will re-activate the sounders again. Front Display Advanced Sounder Mode EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk Website:www.emsgroup.co.uk...
  • Page 33: Device Analogue Value & Fault Rectification Processes

    Detector in alarm condition. Ensure that the environment of the devices location is free of smoke residue and dust. EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk...
  • Page 34: Signal Level Requirements

    Loop 1 Address 15 L1 A015 45dB Sounder Beacon Loop 1 Address 16 L1 A016 20dB EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk Website:www.emsgroup.co.uk...
  • Page 35: Flowchart On How To Improve Device Signal Levels

    Contact EMS Technical Support Department for further advice 0871 2710804 Completed EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk Website:www.emsgroup.co.uk System Programming Manual (Rev2 iss4)
  • Page 37 EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk Website:www.emsgroup.co.uk System Programming Manual (Rev2 iss4)
  • Page 38 EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8JZ, England Technical Helpline Tel: +44 (0) 8712 710804 Email: enquiries@emsgroup.co.uk Website:www.emsgroup.co.uk...
