EMS FireCell Installation Manual

Wireless Call Point

Installation Guide

1 Pre Installation
Installation must conform to applicable local installation
!
codes and should only be installed by a fully trained
competent person.
Ensure that the device is installed as per the site survey.
The use of a non-metallic spacer should be considered if
mounting the device on to a metal surface.
Do NOT Press the Log On button on a pre-programmed device,
as this will cause communication with the Control Panel to be
lost. Should this happen, delete the device from the system and
add it back on.
3 Fix Mounting Plate
Remove the mounting plate from the wireless call point. See
Step 5 for more information on unlocking the device.
Ensure mounting plate is fitted in the orientation shown.
Use both mounting holes.
Use suitable fasteners and fixings.
5 Device Locking
To open the call
loosen the fixing screw, then
slide the call point up, away
from the mounting plate.
When reassembling, observe
the hinged connection
located on the devices top
edge first, prior to closing
the unit. Finally lock the call
point into the mounting
plate by tightening the fixing
screw.
©2018 EMS Ltd. All rights reserved
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE
67mm
57mm
point,
Fixing screw
bottom view
of device
Part No

Product Description

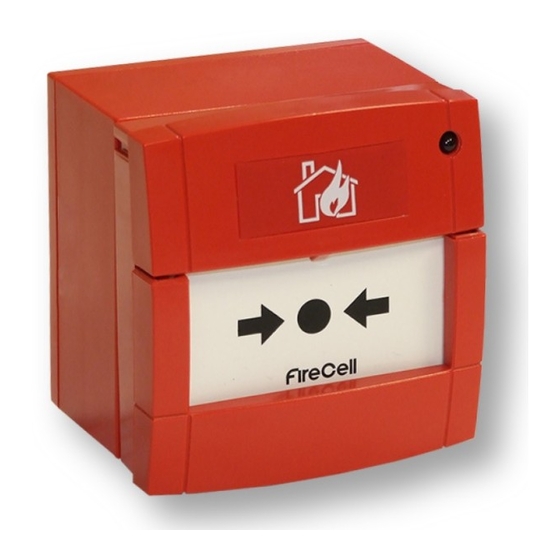

FC-200-002 Wireless Call Point
5-5201/EN54 Replacement Elements
2 Components
1
1
Protective Cover
Mounting Plate
4
4 Power Device
When fitting / replacing batteries; observe correct polarity,
using only specified batteries.
Connect the power jumper across the PIN header.
(both pins linked)
Once powered, reassemble the device.
6 Configuration
The device's loop address is configured within the menu structure
of the Radio Hub.
Refer to the programming manual (Doc Ref: MK98) for full
programming information.
Page 1 of 2
3
2
Wireless Call Point
2
Fixing Screw 3
device
unpowered
(pins unlinked)
device
powered
Free to download from
www.emsgroup.co.uk
TSD005 Iss 12 25/07/2018
4
SIZE AA
SIZE AA
SIZE AA
SIZE AA
SIZE AA
AJM
