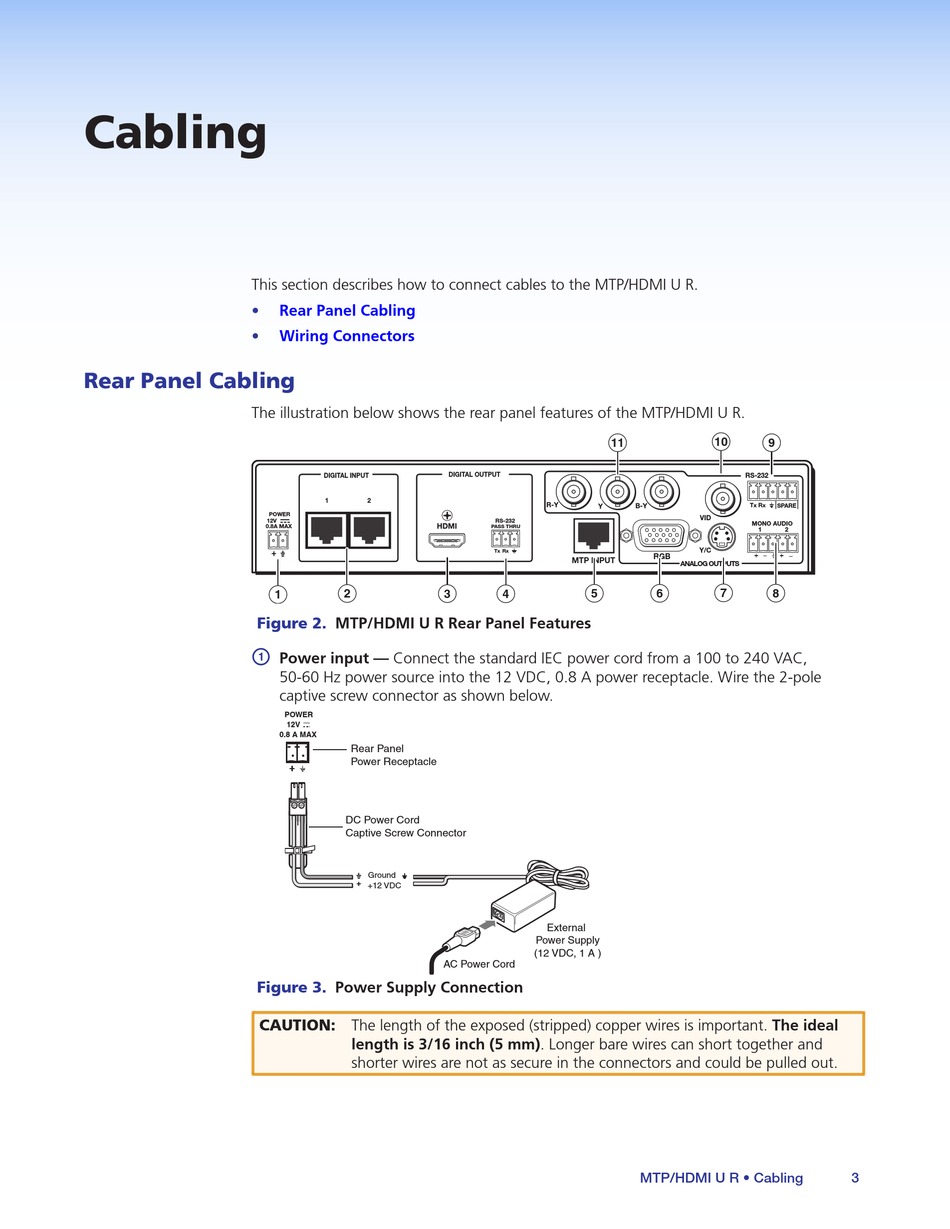

Cabling

This section describes how to connect cables to the MTP/HDMI U R.
•
•

Rear Panel Cabling

The illustration below shows the rear panel features of the MTP/HDMI U R.
Figure 2.
a
Figure 3.
CAUTION: The length of the exposed (stripped) copper wires is important. The ideal
Rear Panel Cabling
Wiring Connectors
DIGITAL INPUT
1 2
POWER
12V
HDMI
0.8A MAX
2 3
1
MTP/HDMI U R Rear Panel Features
Power input — Connect the standard IEC power cord from a 100 to 240 VAC,
50-60 Hz power source into the 12 VDC, 0.8 A power receptacle. Wire the 2-pole
captive screw connector as shown below.
POWER
12V
0.8 A MAX
Rear Panel
Power Receptacle
DC Power Cord
Captive Screw Connector
Ground
+12 VDC
AC Power Cord
Power Supply Connection
length is 3/16 inch (5 mm). Longer bare wires can short together and
shorter wires are not as secure in the connectors and could be pulled out.
11
DIGITAL OUTPUT
R-Y
Y
RS-232
PASS THRU
Tx Rx
MTP INPUT
4 5
External
Power Supply
(12 VDC, 1 A )
10
9
RS-232
B-Y Tx Rx
SPARE
VID
MONO AUDIO
1 2
Y/C
RGB
ANALOG OUTPUTS
6 7 8
MTP/HDMI U R • Cabling 3
