Extron electronics MTP/HDMI U R Setup Manual

MTP/HDMI U R • Setup Guide

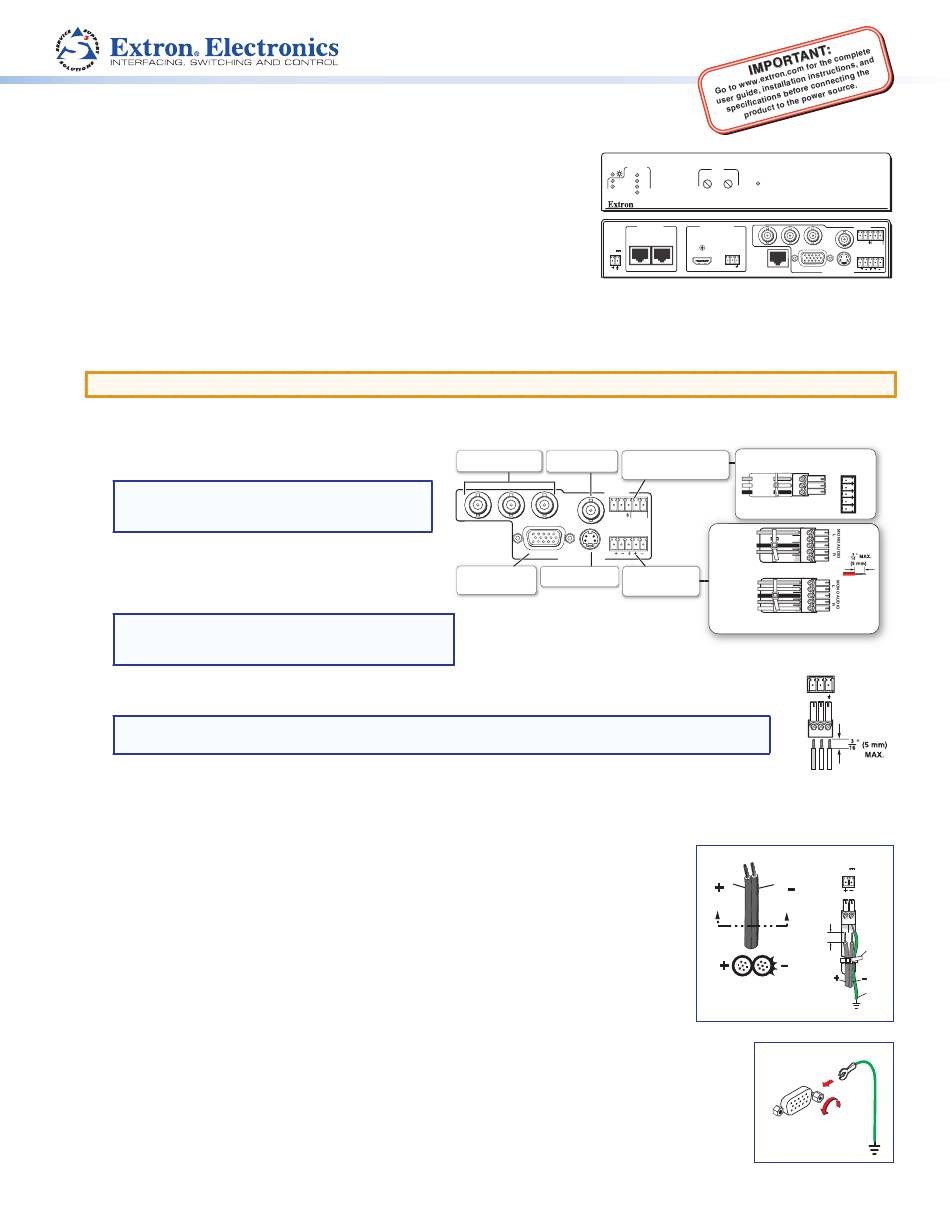

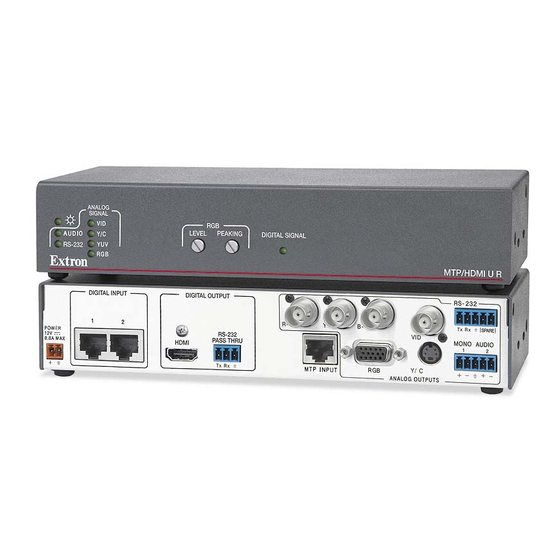

The Extron MTP/HDMI U R is a twisted pair and HDMI universal receiver for analog and
®
digital signals, and is compatible with MTP and HDMI 201 Tx transmitters.
For full details, see the MTP/HDMI U R User Guide at www.extron.com.
Installation
Step 1 — Mounting
Turn off or disconnect all equipment power sources and mount the device as required.
Step 2 — Connect Input
Connect up to two twisted pair cables from an HDMI 201 Tx to the RJ-45 connectors labeled Digital Inputs 1 and 2. Connect an MTP transmitter,
a switcher, or a Distribution Amplifier (DA) to the MTP input.
ATTENTION:
Do not connect the twisted pair input cables to a LAN port, or connect a LAN cable to the digital or MTP ports.
Step 3 — Connect Outputs and RS-232 Control Devices
•
Analog video— Connect output devices to the
Analog Output connectors (see image to the right).
NOTE: The analog outputs are the signals generated
on the MTP input. The signal is sent to the
appropriate detected analog output.
•
Audio — Connect a suitable audio device to the 5-pole
captive screw audio output connector for a balanced or
unbalanced, dual mono audio signal. Wire connector as
shown in the figure at right.
NOTE: The audio signal is detected from the MTP input,
and then is distributed to the audio connector for
output. Audio from the digital side is not available.
•
Control device (analog side) — Connect a serial communications port to the upper 3.5 mm, 5-pole captive screw
connector for bidirectional or unidirectional RS-232 communication. Wire the connector as shown in the figure above
NOTE: The RS-232 port configuration (analog side) as unidirectional or bidirectional is controlled by the internal
jumper settings (see
•
Digital video — Connect a suitable output to the female HDMI output.
Control device (digital side) — Connect a serial communications port to the 3.5 mm, 3-pole
captive screw connector for pass-through RS-232 bidirectional communication. Wire the
connector as shown on the right.
Step 4 — Connect Power
Wire a standard IEC power cord from a 100 to 240 VAC, 50 - 60 Hz power source into the 12 VDC,
0.8 A, 2-pole captive screw connector (see image
front panel power LED lights.
Grounding guidelines
Extron MTP/HDMI U R products can be adversely affected by electrostatic discharge (ESD) if
they are not grounded correctly.
To prevent malfunctions or product damage, an experienced installer can correctly ground an
Extron MTP/HDMI U R in either of two ways:
•
Ground the power input port — Insert one end of the grounding wire to the negative or ground
pin on the power input connector (see image
earth ground.
•
Ground the chassis — Use a connector hex nut as shown in image
end of the wire to an earth ground.
If you have any questions about how to ground a product in a specific application, contact an Extron
technical support specialist.
Setting the Jumpers
on the next page).
a
on the right). When power is applied the
a
on the right). Tie the other end of the wire to an
ANALOG
SIGNAL
AUDIO
RS-232
POWER
12V
0.8A MAX
Composite Video – RS-232 Control (Analog Side) –
Component Video –
Connect to this BNC. Connect to this captive screw
Connect to these 3 BNCs.
connector.
RS-232
R-Y
B-Y Tx Rx
Y SPARE
VID
MONO AUDIO
1
Y/C
RGB
ANALOG OUTPUTS
RGBHV and RGBS – S-video – Connect to Mono Audio – Connect
Connect to this VGA this mini DIN connector. to this captive screw
connector.
connector.
b
the right. Tie the other
RGB
VID
LEVEL PEAKING DIGITAL SIGNAL
Y/C
YUV
RGB
DIGITAL OUTPUT
DIGITAL INPUT
1 2
R-Y B-Y
Y
RS-232
HDMI
PASS THRU
Tx Rx
RGB
MTP INPUT
Wire the RS-232 connector as shown below.
Connected RS-232 Device Pins MTP/HDMI U R
Receive
Transmit
Ground
Mono output 1
2
NO GROUND.
Sleeve(s)
Mono output 2
NO GROUND.
Unbalanced Output
Mono output 1+
Mono output 1-
Sleeve(s)
Mono output 2+
Mono output 2-
Balanced Output
Wire the audio connector as shown above.
MTP/HDMI
RS-232
Pass-thru
Tx Rx
Rx Tx Grnd
Connected RS-232
Device Pins
.
a
Smooth
Ridges
A A
3/16"
(5 mm)
Max.
SECTION A–A
Power Supply
Output Cord
b
MTP/HDMI U R
RS-232
Tx Rx
SPARE
VID
MONO AUDIO
1 2
Y/C
ANALOG OUTPUTS
Pins
Tx
Rx
Gnd
Spare
Spare
Do not tin
the wires!
POWER
12V
xA MAX
Rear
Panel
Tie
Wrap
Ridges
Earth
Ground
