f g j k

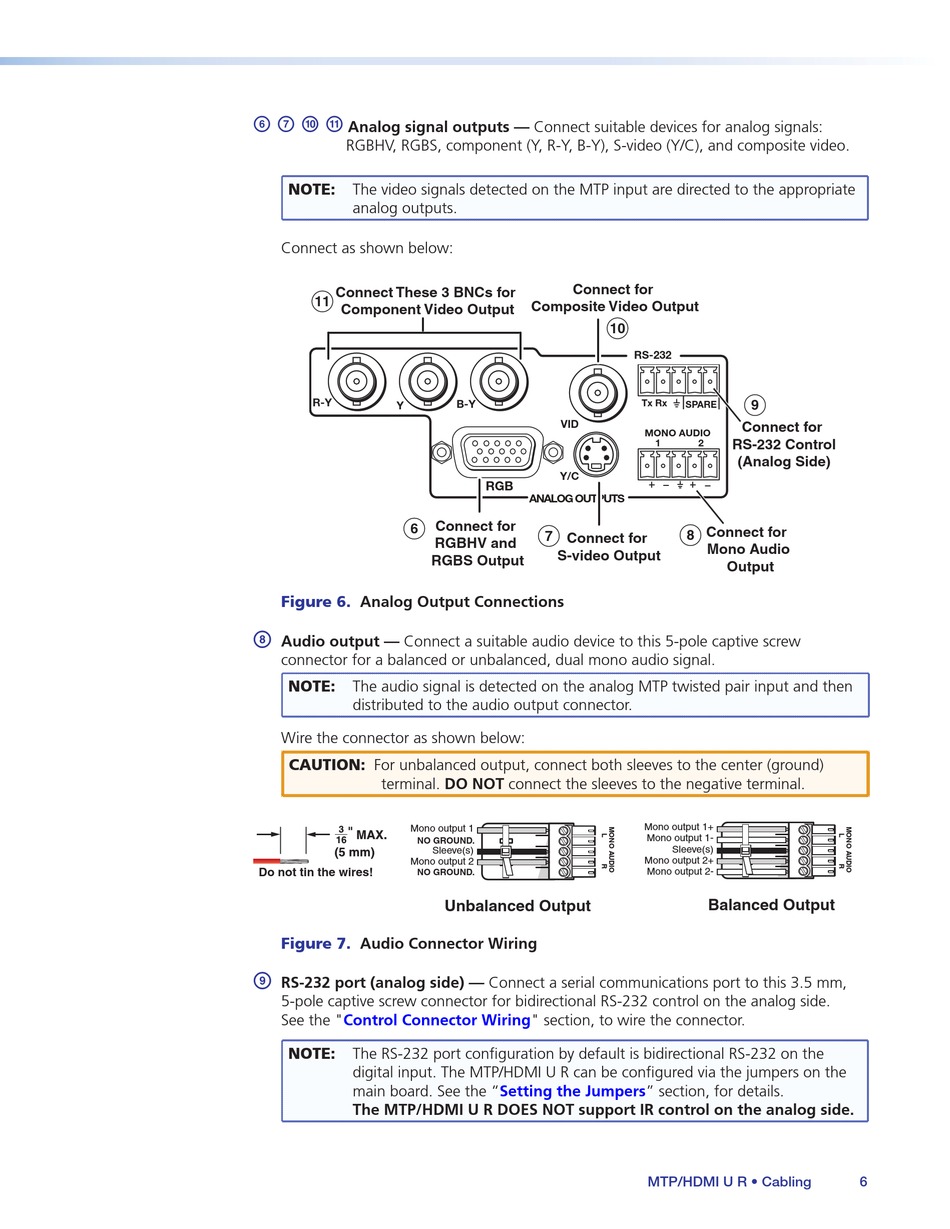

Analog signal outputs — Connect suitable devices for analog signals:
RGBHV, RGBS, component (Y, R-Y, B-Y), S-video (Y/C), and composite video.
NOTE:
The video signals detected on the MTP input are directed to the appropriate
analog outputs.
Connect as shown below:
Connect These 3 BNCs for
11
Component Video Output
R-Y
Y
6
RGBS Output
Figure 6.
Analog Output Connections
h
Audio output — Connect a suitable audio device to this 5-pole captive screw
connector for a balanced or unbalanced, dual mono audio signal.
NOTE:
The audio signal is detected on the analog MTP twisted pair input and then
distributed to the audio output connector.
Wire the connector as shown below:
CAUTION: For unbalanced output, connect both sleeves to the center (ground)
terminal. DO NOT connect the sleeves to the negative terminal.
Mono output 1
NO GROUND.
Sleeve(s)
Mono output 2
Do not tin the wires!
NO GROUND.
Figure 7.
Audio Connector Wiring
i
RS-232 port (analog side) — Connect a serial communications port to this 3.5 mm,
5-pole captive screw connector for bidirectional RS-232 control on the analog side.
"Control Connector
See the
NOTE:
The RS-232 port configuration by default is bidirectional RS-232 on the
digital input. The MTP/HDMI U R can be configured via the jumpers on the
main board. See the
The MTP/HDMI U R DOES NOT support IR control on the analog side.
Connect for
Composite Video Output
10
B-Y
VID
Y/C
RGB
ANALOG OUTPUTS
Connect for
7
Connect for
RGBHV and
S-video Output
Unbalanced Output
Wiring" section, to wire the connector.
"Setting the
Jumpers" section, for details.
RS-232
9
Tx Rx
SPARE
Connect for
MONO AUDIO
RS-232 Control
1
2
(Analog Side)
Connect for
8
Mono Audio
Output
Mono output 1+
Mono output 1-
Sleeve(s)
Mono output 2+
Mono output 2-
Balanced Output
MTP/HDMI U R • Cabling
6
