Control Connector Wiring

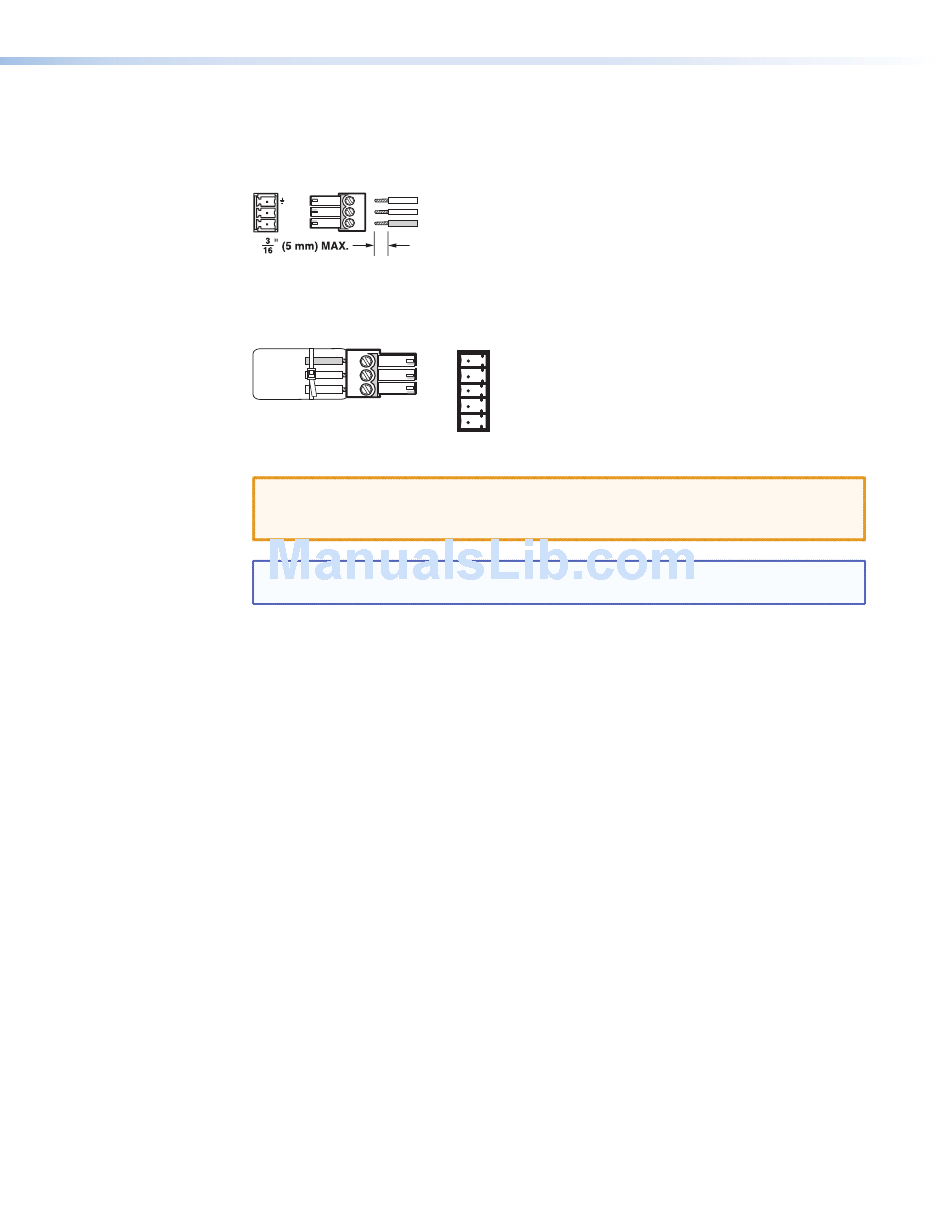

For the 3-pole (digital side) RS-232 pass-through connector, wire as shown below:
Tx/Rx
Pins
Rx
Tx
Figure 10.
For the 5-pole (analog side) RS-232 connector, wire as shown below:
Connected RS-232
Device Pins
Receive
Transmit
Ground
Figure 11.
CAUTION: The length of the exposed (stripped) copper wires is important. The ideal
NOTE:
Connected RS-232
Device Pins
Ground
Transmit pin on connected unit
Receive pin on connected unit
3-pole RS-232 Connector Wiring
MTP/HDMI U R
Pins
Tx
Rx
Gnd
Spare
Spare
5-pole RS-232 Connector Wiring
length is 3/16 inch (5 mm). Longer bare wires can short together and
shorter wires are not as secure in the connectors and could be pulled out.
Do not tin the wires before installing them in the connector. Tinned wires are
not as secure and could be pulled out.
MTP/HDMI U R • Cabling 8 8
