User's Guide
MTP U R RSA SEQ, MTP U R RS SEQ,
MTP U R RS, and MTP U R A
Mini Twisted Pair Universal Receivers
68-1367-01
Rev. B
09 08

Advertisement

Table of Contents
loading

Related Manuals for Extron electronics MTP U R A

Summary of Contents for Extron electronics MTP U R A

  • Page 1 User’s Guide MTP U R RSA SEQ, MTP U R RS SEQ, MTP U R RS, and MTP U R A Mini Twisted Pair Universal Receivers 68-1367-01 Rev. B 09 08...
  • Page 2 Safety Instructions • English This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment. This symbol is intended to alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock.
  • Page 3 安全须知 • 中文 这个符号提示用户该设备用户手册中 有重要的操作和维护说明。 这个符号警告用户该设备机壳内有暴 露的危险电压，有触电危险。 注意 阅读说明书 • 用 户 使 用 该 设 备 前 必 须 阅 读 并 理 解 所 有 安 全 和 使 用 说 明 。 保存说明书 • 用户应保存安全说明书以备将来使 用。 遵守警告 • 用户应遵守产品和用户指南上的所有安 全和操作说明。...

  • Page 5: Table Of Contents

    Table of Contents About this Manual About the MTP Universal Receivers TP cable advantages ... 4 Transmission distance ... 4 Receiver Jumpers Setting JMP1 for RS-232 communication ... 5 Setting the jumpers to positive vertical and/or horizontal sync polarity ... 6 Transmitter Jumper Application Diagrams Installation...

  • Page 6: About This Manual

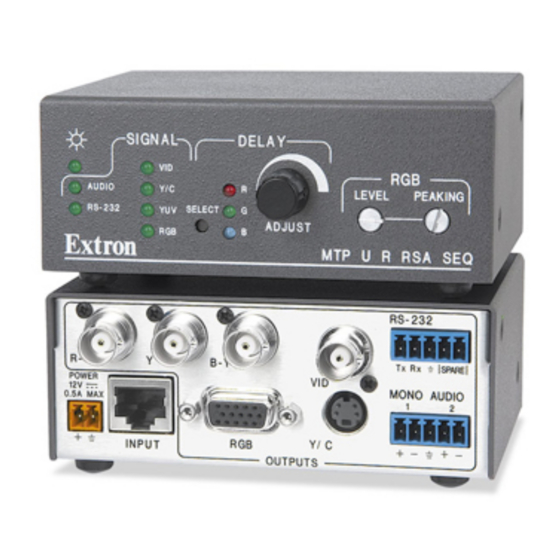

    About the MTP Universal Receivers Extron MTP U R RSA SEQ, MTP U R RS SEQ, MTP U R RS, and MTP U R A receivers are for long distance distribution of RGB, component (bi/tri level), S-video, or composite video signals over twisted pair cables.
  • Page 7 The MTP U Rs are a part of the Extron VersaTools distribution amplifiers, switchers, transmitters, receivers, and associated video accessories. The MTP U R models receive signals (high resolution RGB video, bi-level or tri-level component video, S-video and composite video) on an RJ-45 connector over Extron’s Enhanced Skew-Free™...

  • Page 8: Tp Cable Advantages

    The maximum distance is determined by the frequency and resolution of the signal transmitted. The following table specifies the recommended maximum transmission distances and transmitter Pre-Peak switch positions using Extron Enhanced Skew-Free A/V UTP cable or UTP CAT 5/5e/6 cable, terminated with CAT 5 rated connectors.

  • Page 9: Receiver Jumpers

    Receiver Jumpers The MTP U R receivers have three jumpers on the main board. Jumper 1 (JMP1) controls RS-232 directional communication, and Jumpers 2 (JMP2) and 3 (JMP3) control vertical and horizontal sync respectively. By default, JMP1 is closed on all models and configured to send serial data both ways (bidirectional), transmitter-to-receiver and receiver-to-transmitter.

  • Page 10: Setting The Jumpers To Positive Vertical And/Or Horizontal Sync Polarity

    Introduction, cont’d If applicable, reinstall the receiver and reconnect all cables. Setting the jumpers to positive vertical and/or horizontal sync polarity Jumper 2 is the controlling jumper for vertical sync, and Jumper 3 for horizontal sync. Jumpers 2 and 3 are to the left of Jumper 1, when viewed from the rear of the receiver.

  • Page 11: Application Diagrams

    MTP U R RSA SEQ MTP U R RSA SEQ RS-232 OUTPUT INSERT MTP U R Receivers S-Video MTP U R A Audio Transmitters MTP T 15HD A Audio MTP U R RSA SEQ MTP T 15HD A Audio The MTP transmitter jumper needs to be set to tri-level for 720p and 1080i HDTV component video applications For 1080p HDTV applications set the jumper to bi-level.

  • Page 12: Installation

    Installation Installation The 1U high, quarter rack width, MTP U R receiver can be mounted on a rack shelf, to a rack without a shelf, under a desk or tabletop, or on a projector bracket. UL guidelines for rack mounted devices The following Underwriters Laboratories (UL) guidelines pertain to the safe installation of the MTP U R receiver in a rack.
  • Page 13 • RSU 129, Standard universal 1U rack shelf kit (part #60-190-01) • RSB 129, Basic universal 1U rack shelf (part #60-604-02) On the standard rack shelf, the MTP U R mounts in one of four locations to the rear of the rack or in one of four locations to the front of the rack.

  • Page 14: Back Of The Rack Mounting

    Installation, cont’d Install false faceplate(s) or other unit(s) to the rack shelf. Mount the shelf into the rack. Back of the rack mounting The MTP can be mounted to the rear of a rack using the Extron MBB 100, VersaTools (part #70-367-01).

  • Page 15: Furniture Or Projector Mounting

    Figure 11 — Typical back of the rack installations Furniture or projector mounting Use the optional mounting kit (MBU 123, furniture, part #70-212-01, or PMK 100, projector, part #70-217-01) to mount the MTP as follows: Projector Mounting Bracket Projector Figure 12 — Desk and projector mounting the MTPs Rear I E S I/ O...
  • Page 16 Installation, cont’d Remove the feet from the bottom of the MTP, if they are installed. Attach the mounting brackets to the MTP with the machine screws provided. For furniture mounting, hold the MTP with the attached brackets against the mounting surface. Mark the bracket screw hole locations on the mounting surface.

  • Page 17: Connections And Settings

    M TP U R R S S EQ POWER 0.5A MAX MTP U R RS MTP U R RS POWER 0.5A MAX MTP U R A M TP U R A POWER 0.5A MAX Figure 13 — Receivers’ rear panel features INPUT 1 OUTPUTS...
  • Page 18 Installation, cont’d Power connector — Plug the included external 12 VDC power supply into this 2-pole captive screw connector. See “Power supply wiring” to wire the connector. Input 1 connector — Connect one end of the cable from the transmitter. See “TP cable termination”...
  • Page 19 RS-232 output insert connections on the matrix. Audio connector (MTP U R RSA SEQ and MTP U R A models only) — Connect a suitable audio device to this 5-pole captive screw connector for mono audio output.

  • Page 20: Power Supply Wiring

    Installation, cont’d Power supply wiring Wire the supplied male power connector (plug) as in figure 16. Smooth Figure 16 — Power connector wiring To verify the polarity before connection, plug in the power supply with no load and check the output with a voltmeter. As an alternative, an Extron P/S 123 Universal 12 VDC Power Supply, part #60-814-01, can power multiple MTPs or other Extron 12 VDC devices using only one AC power connector.

  • Page 21: Tp Cable Termination

    TP cable termination Figure 17 details the recommended termination of TP cables with RJ-45 connectors in accordance with the TIA/EIA T 568A or TIA/EIA T 568B wiring standards. Either standard can be used with CAT 5/5e/6 cable, but ensure that the same standard is used on both ends of the cable.

  • Page 22: Front Panel Controls And Indicators

    MTP U R Series • Installation SIGNAL DELAY AUDIO SELECT RS-232 SIGNAL DELAY SELECT SIGNAL SIGNAL LEVEL PEAKING ADJUST MTP U R RSA SEQ LEVEL PEAKING ADJUST MTP U R RS SEQ LEVEL PEAKING MTP U R A LEVEL PEAKING MTP U R RS...
  • Page 23 Power LED — Indicates power is applied to the MTP. Signal LEDs — The appropriate LED lights when its signal type is present and auto-detected. The signal types indicated are either composite video, Y/C, YUV, or RGB. Select button (SEQ models only) — This recessed button selects the red, green, or blue video signal to adjust and resets all three video signals to a skew delay of zero nanoseconds.

  • Page 24: Peaking And Level Adjustment

    Installation, cont’d The maximum setting (at the clockwise limit) provides 100% peaking. Adjust this control while viewing the displayed image to obtain the optimum picture sharpness. See “Peaking and Level Adjustment” section below for details. Audio LED (MTP U R RSA SEQ models only) — This LED lights in audio mode by default.

  • Page 25: Skew Delay Compensation

    Skew Delay Compensation CAT 5/5e/6 TP cable can lead to registration errors between the red, green, and blue video signals. Pair skew can be measured with test equipment or identified by viewing a crosshatch test pattern with a critical eye to determine if either the red, green, or blue video image leads (appears to the left of) the other two video images.

  • Page 26: Non-Seq Receivers Skew Compensation

    Non-SEQ receivers skew compensation Try using the following methods to minimize or eliminate pair skew: • Switch to Extron’s Enhanced Skew-Free A/V UTP cable. • Add a skew compensation cable equal to the length of pair skew to the receiver’s output.

  • Page 27: Specifications

    Output level ... 4.0 V to 5.0 Vp-p, unterminated Output impedance ... 87 ohms (24 mA) Polarity... Positive or negative (selectable) Audio — MTP U R RSA SEQ, MTP U R A Gain ... Unbalanced output: 0 dB; Frequency response ... 20 Hz to 20 kHz, ±1 dB...
  • Page 28 THD + Noise ... 0.15% @ 1 kHz, 0.3% @ 20 kHz at nominal S/N ... >70 dB at maximum output (unweighted) Audio input — MTP U R RSA SEQ, MTP U R A — See MTP Series transmitters’ audio output specifications Number/signal type ...
  • Page 29 Protocol is mirrored between the transmitter and the receiver. Serial control pin configurations . Captive screw connectors: General External power supply ... 100 VAC to 240 VAC, 50/60 Hz, external, Power input requirements ... 12 VDC, 0.5 A emperature/humidity ... Storage: -40 to +158 °F (-40 to +70 °C) / Cooling ...

  • Page 30: Part Numbers

    Part Numbers MTP receivers Receiver MTP U R RSA SEQ receiver MTP U R RS SEQ receiver MTP U R A receiver MTP U R RS receiver Accessories Accessories P/S 123 Multiple output 12 V power supply 19" 1U Universal Rack Shelf 19"...
  • Page 31 Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:...
  • Page 32 Extron USA - West Extron USA - East Headquarters +800.633.9876 +800.633.9876 Inside USA / Canada Only Inside USA / Canada Only +1.919.863.1794 +1.714.491.1500 +1.919.863.1797 FAX +1.714.491.1517 FAX Extron EMEA Extron Asia Extron Japan +800.3987.6673 +800.7339.8766 +81.3.3511.7655 Inside Europe Only Inside Asia Only +81.3.3511.7656 FAX +31.33.453.4040 +65.6383.4400...
