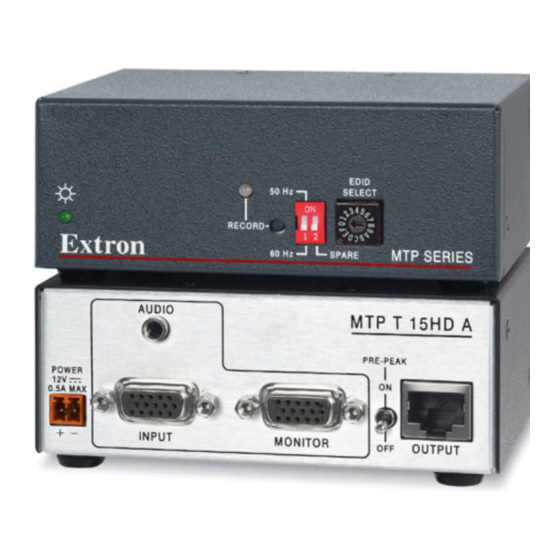

Extron electronics VersaTools MTP 15HD A Series User Manual

High resolution video and audio mini twisted pair transmitters and receivers
Hide thumbs Also See for VersaTools MTP 15HD A Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Enlarged version
Extron Electronics, USA
Extron Electronics, Europe
1230 South Lewis Street
Beeldschermweg 6C
Anaheim, CA 92805
3821 AH Amersfoort, The Netherlands
800.633.9876 714.491.1500
+800.3987.6673 +31.33.453.4040
FAX 714.491.1517
FAX +31.33.453.4050
www.extron.com
© 2007 Extron Electronics. All rights reserved.
Extron Electronics, Asia
Extron Electronics, Japan
135 Joo Seng Rd. #04-01
Kyodo Building, 16 Ichibancho
PM Industrial Bldg., Singapore 368363
Chiyoda-ku, Tokyo 102-0082
+800.7339.8766 +65.6383.4400
Japan
FAX +65.6383.4664
+81.3.3511.7655 FAX +81.3.3511.7656
User's Guide
VersaTools
®
High Resolution Video and Audio
Mini Twisted Pair Transmitters and Receivers
MTP 15HD A Series
68-956-01 Rev. C
03 07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VersaTools MTP 15HD A Series and is the answer not in the manual?

Questions and answers

Related Manuals for Extron electronics VersaTools MTP 15HD A Series

Summary of Contents for Extron electronics VersaTools MTP 15HD A Series

  • Page 1 3821 AH Amersfoort, The Netherlands PM Industrial Bldg., Singapore 368363 Chiyoda-ku, Tokyo 102-0082 68-956-01 Rev. C 800.633.9876 714.491.1500 +800.3987.6673 +31.33.453.4040 +800.7339.8766 +65.6383.4400 Japan 03 07 FAX 714.491.1517 FAX +31.33.453.4050 FAX +65.6383.4664 +81.3.3511.7655 FAX +81.3.3511.7656 www.extron.com © 2007 Extron Electronics. All rights reserved.
  • Page 2 Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal particular use. In no event will Extron Electronics be liable for direct, indirect, or calificado. En el interior no hay partes a las que el usuario deba acceder. Para Precaucion evitar riesgo de electrocución, no intentar personalmente la reparación/...

  • Page 4: Table Of Contents

    VersaTools ® MTP 15HD A Series About this Manual ..............2 About the MTP Transmitters and Receivers ....2 TP cable advantages ..............3 Transmission distance ............... 3 Setting the Transmitter Sync Jumper (Component Video) ..............5 End Unit RL Receiver DIP Switch ........

  • Page 5: Mtp 15Hd A Series

    VersaTools ® MTP 15HD A Series, cont’d The receiver inputs the transmitted proprietary signal on an About this Manual RJ-45 connector and converts the signal back into its high This manual details the installation and operation of the resolution video and mono audio components. The receiver following products: outputs the video on a 15-pin HD connector and the two sets of identical mono audio signals on a single 3.5 mm captive screw...

  • Page 6: Setting The Transmitter Sync Jumper (Component Video)

    VersaTools ® MTP 15HD A Series, cont’d Recommended Pre-Peak switch positions and Setting the Transmitter Sync Jumper transmission distances at 60 Hz (Component Video) Video Pre-Peak Pre-Peak Max. distance Max. distance By default, the MTP T 15HD transmitter is configured to send format (high quality) (variable quality)

  • Page 7: End Unit Rl Receiver Dip Switch

    VersaTools ® MTP 15HD A Series, cont’d End Unit RL Receiver DIP Switch consideration of equipment nameplate ratings should be used when addressing this concern. Set the RL receiver’s rear panel End Unit DIP switch up only if Reliable earthing (grounding) — Reliable earthing of either of the following is true: rack-mounted equipment should be maintained.

  • Page 8: Back Of The Rack Mounting Instructions

    VersaTools ® MTP 15HD A Series, cont’d Back of the rack mounting instructions The MTP can be mounted to the rear of a rack using the Extron MBB 100 VersaTools back of the rack mounting kit (part #70-367-01) (figure 4). The kit allows the product to be vertically mounted to the front or rear rack supports and facing either towards the front or the rear of the rack.

  • Page 9: Furniture Or Projector Mounting

    VersaTools ® MTP 15HD A Series, cont’d For furniture mounting, drill 3/32" (2 mm) diameter pilot holes, 1/4" (6.3 mm) deep in the mounting surface at the marked screw locations. Mounting Projector Bolt Mounting Bracket Rear Front Projector Figure 6 — Desk and projector mounting the MTPs For furniture mounting, insert #8 wood screws into the four pilot holes.

  • Page 10: Connections And Settings

    VersaTools ® MTP 15HD A Series, cont’d Connections and Settings Audio input connector — Plug a 3.5 mm stereo audio plug AUDIO into this jack for unbalanced audio input. Wire the plug as Do not connect these devices to a computer data or CAUTION shown in figure 8.

  • Page 11: Receiver

    VersaTools ® MTP 15HD A Series, cont’d Receiver See the table on page 4 for recommended transmission ranges. The recommendations in the table apply equally Figure 9 shows an MTP RL 15HD A receiver, which has all of the for a single transmitter and receiver and for a daisy connectors and other features that are on any receiver in the chain.

  • Page 12: Power Supply Wiring

    VersaTools ® MTP 15HD A Series, cont’d DIP switches If there are one or more receivers connected to the Buffered Output RJ-45 connector on the receiver being configured, set Horizontal Sync switch (1) — Set this switch up that receiver’s End Unit switch down. for positive horizontal sync (or positive composite sync if the Composite Sync switch is on) or down Power supply wiring...

  • Page 13: Tp Cable Termination

    VersaTools ® MTP 15HD A Series, cont’d TP cable termination The green, brown, and blue wire pairs of this cable have virtually identical lengths and should be used to RJ-45 termination with CAT 5, CAT 5e, or CAT 6 cable transmit the RGB signals.

  • Page 14: Skew Delay Compensation

    VersaTools ® MTP 15HD A Series, cont’d For best results when using an RL receiver, connect a The selected Red, Green, or Blue LED ( ) flashes to load to the receiver’s buffered output before adjusting the indicate that the control has reached the minimum level.

  • Page 15: Non-Seq Receivers Skew Compensation

    VersaTools ® MTP 15HD A Series, cont’d Use a Tweeker or other small screwdriver to press the Video output — receivers Select button one more time to save the most recent Number/signal type adjustment or allow the 10-second timeout to elapse. MTP R 15HD A ....

  • Page 16: Part Numbers

    VersaTools ® MTP 15HD A Series, cont’d Frequency response ..... 20 Hz to 20 kHz, ±1 dB Enclosure dimensions ....1.7" H x 4.3" W x 3.0" D (1U high, quarter rack wide) THD + Noise ........ 0.15% @ 1 kHz, 0.3% @ 20 kHz at nominal 4.3 cm H x 10.9 cm W x 7.6 cm D level (Depth excludes connectors.)

  • Page 17: Cables/Connectors

    VersaTools ® MTP 15HD A Series, cont’d Cables/connectors Enhanced Skew-Free™ A/V UTP cables are not recommended for Ethernet/LAN applications. Enhanced Skew-Free™ A/V cable Part number Enhanced Skew-Free A/V cable (cut, various lengths) 26-569-xx Enhanced Skew-Free A/V 1000' (Bulk) (non-plenum) 22-141-03 Plenum enhanced Skew-Free A/V 1000' (Bulk) 22-142-03 RJ-45 connector...
