- Page 1 User Guide MTP - Twisted Pair Series MTP 1500RL 15HD A and MTP 1500RL 15HD A SEQ Extended Distance Mini Twisted Pair Receivers 68-1554-01 Rev. C 05 17...
-
Page 2: Safety Instructions
Safety Instructions Safety Instructions • English Istruzioni di sicurezza • Italiano WARNING: This symbol, , when used on the product, is intended to AVVERTENZA: Il simbolo, , se usato sul prodotto, serve ad alert the user of the presence of uninsulated dangerous voltage within avvertire l’utente della presenza di tensione non isolata pericolosa the product’s enclosure that may present a risk of electric shock. - Page 3 ついては、 エクス トロンのウェブサイ ト より 『Extron Safety www.extron.com and Regulatory Compliance Guide』 (P/N 68-290-01) をご覧ください。 Copyright © 2017 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks( ®...
- Page 4 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 5: Table Of Contents
Contents MTP 1500RL 15HD A Series ....... 1 Connections and Settings........3 About this Guide ..........1 Front Panel Controls and Indicators ....7 About the MTP 1500RL 15HD A Series Peaking and Level Adjustment ......8 Receivers ............1 Skew Delay Compensation ...... - Page 6 MTP 1500RL 15HD A Series • Contents...
-
Page 7: Mtp 1500Rl 15Hd A Series

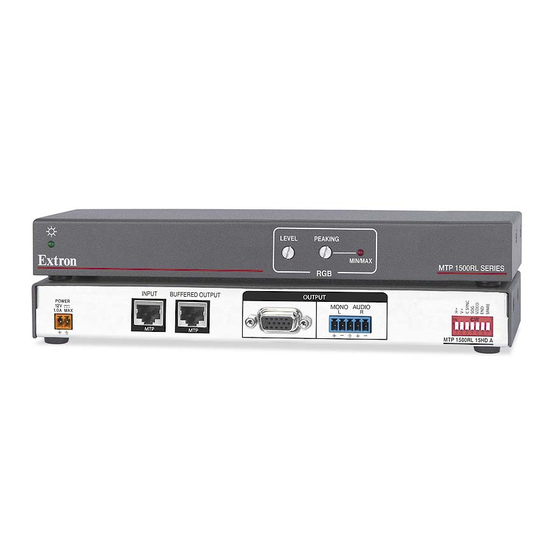

About the MTP 1500RL 15HD A Series Receivers The Extron MTP 1500RL 15HD A SEQ and MTP 1500RL 15HD A receivers are for long distance distribution of RGB, component (bi-level or tri-level sync), S-video, or composite video signals and audio over twisted pair cables. -
Page 8: Tp Cable Advantages
NOTE: The MTP 1500RL 15HD series of receivers cannot be used with VTT or TP transmitters. The receivers ship with external desktop 12 V, 1 A power supplies that accept 100 to 240 VAC, 50 Hz to 60 Hz input. TP Cable Advantages Twisted pair cable is much smaller, lighter, more flexible, and less expensive than coaxial cable. -
Page 9: Application Diagram
Transmitter Audio 1,000 ft UTP Cable (CAT 5/5e/6) Figure 1. Typical MTP 1500RL 15HD A SEQ Application Installation Mounting instructions can be found in Mounting the Receiver on page 10. Compatible optional hardware is listed on the Extron website (www.extron.com). - Page 10 Buffered output connector — Connect up to 8 daisy-chained MTP recievers to this RJ-45 connector. NOTE: In a daisy chain, the maximum distance from video source to display device should not exceed 1500 feet. High resolution video output connector — Connect a projector or other high resolution video device to this 15-pin HD connector for RGB output.
-
Page 11: Power Supply Wiring
Power Supply Wiring Figure 4 shows how to wire the connector. Insert the wired plug into the power connector on the rear panel. Do not power on the device at this time. 2-Pole Captive Screw 3/16” Connector (5 mm) Max. SECTION A–A Smooth Ridges... -
Page 12: Tp Cable Termination
ATTENTION: • Unless otherwise stated, the AC/DC adapters are not suitable for use in air handling spaces or in wall cavities. • Sauf mention contraire, les adaptateurs CA/CC ne conviennent pas à une utilisation dans les espaces d’aération ou dans les cavités murales. •... -
Page 13: Front Panel Controls And Indicators
No Signal B- Y - Front Panel Controls and Indicators Figure 6 shows the front panel features on the MTP 1500RL 15HD A SEQ. The MTP 1500RL 15HD A is similar but without the Delay controls (items through on the next page. -
Page 14: Peaking And Level Adjustment
Select button (SEQ receiver only, see the previous page) — This recessed button selects the red, green, or blue video signal to adjust and resets all three video signals to a skew delay of zero nanoseconds. Use a Tweeker to press and release this button to cycle and select the red, green, or blue video signal to adjust. -
Page 15: Skew Delay Compensation
Skew Delay Compensation CAT cable can lead to registration errors between the red, green, and blue video signals. Pair skew can be measured with test equipment or identified by viewing a crosshatch test pattern with a critical eye to determine if either the red, green, or blue video image leads (appears to the left of) the other two video images. -
Page 16: Mounting The Receiver
Mounting the Receiver ATTENTION: • Installation and service must be performed by authorized personnel only. • L’installation et l’entretien doivent être effectués par le personnel autorisé uniquement. The 1-inch high, half rack width receiver can be placed on a table, mounted in a rack, or mounted under a desk or table. - Page 17 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
