Extron electronics MTP 1500RL 15HD A SEQ User Manual

Extron electronics MTP 1500RL 15HD A SEQ User Manual

Extended distance twisted pair receiver
Hide thumbs Also See for MTP 1500RL 15HD A SEQ:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Setup Manual
User Guide
Twisted Pair
MTP 1500RL 15HD A SEQ
Extended Distance Twisted Pair Receiver
68-1554-01 Rev. B
01 12

Advertisement

Table of Contents
loading

Related Manuals for Extron electronics MTP 1500RL 15HD A SEQ

Summary of Contents for Extron electronics MTP 1500RL 15HD A SEQ

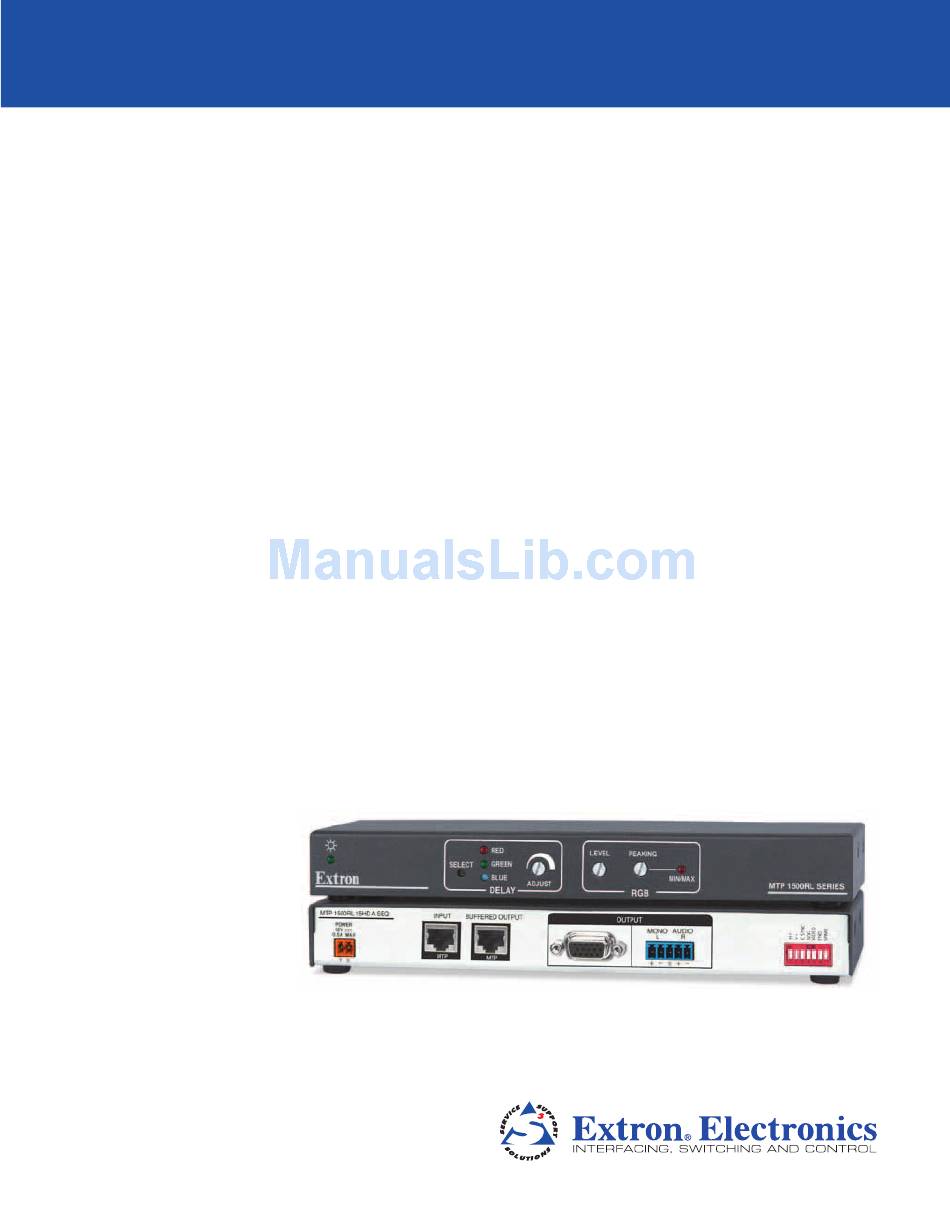

  • Page 1 User Guide Twisted Pair MTP 1500RL 15HD A SEQ Extended Distance Twisted Pair Receiver 68-1554-01 Rev. B 01 12...
  • Page 2 Precautions Safety Instructions • English Warning Power sources • This equipment should be operated only from the power source indicated on the product. This This symbol is intended to alert the user of important operating and maintenance equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third (servicing) instructions in the literature provided with the equipment.
  • Page 3 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 4 Selectable items, such as menu names, menu options, buttons, tabs, and field names are written in the font shown here: From the File menu, select Click the button. Copyright © 2012 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners.

  • Page 5: Table Of Contents

    Contents Introduction Reference Information ............1 ........11 MTP 1500RL 15HD A SEQ Description ....1 Specifications ............ 11 Features ............1 Part Numbers and Accessories ......13 Transmission Distance ........2 Included Parts ..........13 Optional Parts ..........13 Installation and Setup ..........
  • Page 6 MTP 1500RL 15HD A SEQ • Contents...

  • Page 7: Introduction

    Introduction This manual details the installation and operation of the Extron MTP 1500RL 15HD A SEQ Twisted Pair receiver with audio and skew equalization In this guide the following terms are used: “Transmitter” refers specifically to the MTP transmitter. “Receiver” or “SEQ receiver” refers specifically to the MTP 1500RL 15HD A SEQ receiver with skew equalization.

  • Page 8: Transmission Distance

    MTP 1500RL cable cable cable Display Source Device 15HD A Device Transmission distance with more than one device before the MTP 1500RL 15HD A SEQ 1500 feet (457 m) maximum Input MTP Tx MTP RL Rx MTP 1500RL cable cable...
  • Page 9 MTP 1500RL 15HD A SEQ Application Diagram RGBHV Audio Extron MTP T 15HD A Twisted Pair Transmitter E- PE D IO O FF N IT .5 A 500’ (152 m) UTP Cable (CAT 5/5e/6) Flat Panel Display Audio 1 5 H...

  • Page 10: Installation And Setup

    1A MAX MTP 1500RL 15HD A SEQ Figure 3. Rear Panel Features of the MTP 1500RL 15HD A SEQ Power connector — Plug the included external 12 VDC, 1 A, power supply into this “Power Supply Wiring” 2-pole captive screw connector (see section for wiring details).
  • Page 11 End unit switch — Set this switch up if either of the following is true: The receiver being configured is the only receiver connected to the transmitter. The receiver being configured is the last receiver in a daisy-chained system. MTP 1500RL 15HD A SEQ • Installation and Setup...

  • Page 12: Power Supply Wiring

    Remove power before wiring. As an alternative, an Extron PS 124 Universal 12 VDC Power Supply, part #60-1022-01, can power multiple MTPs or other Extron 12 VDC devices using only one AC power connector.. MTP 1500RL 15HD A SEQ • Installation and Setup...

  • Page 13: Tp Cable Termination

    Blue/H Sync + Blue/C Sync + No Signal No Signal B-Y + Blue/H Sync - Blue/C Sync - No Signal No Signal B- Y - Figure 7. MTP RJ-45 Pin Assignments MTP 1500RL 15HD A SEQ • Installation and Setup...

  • Page 14: Operation

    This section describes the operation details for the MTP 1500RL RS SEQ receiver. It covers: Front Panel Controls and Indicators Peaking and Level Adjustment Skew Delay Compensation Front Panel Controls and Indicators Front panel features on the MTP 1500RL 15HD A SEQ receiver are shown below. LEVEL PEAKING SELECT GREEN...

  • Page 15: Peaking And Level Adjustment

    This equalizes both the low frequency (white field) and the high frequency (alternating black and white field) to the same video level for best results. Do not over-peak the signal. MTP 1500RL 15HD A SEQ • Operation...

  • Page 16: Skew Delay Compensation

    Use a Tweeker or other small screwdriver to press the Select button one more time to save the most recent adjustment or allow the 10-second timeout to elapse. If the remaining color is left shifted, repeat step 3. MTP 1500RL 15HD A SEQ • Operation...

  • Page 17: Reference Information

    CMRR ..........>43 dB @ 20 Hz to 20 kHz Audio input — See MTP Series transmitters specifications NOTE: 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu MTP 1500RL 15HD A SEQ • Reference Information...

  • Page 18: Audio Output

    EMI/EMC ......... CE, C-tick, FCC Class A, ICES, VCCI MTBF ..........30,000 hours Warranty ........3 years parts and labor NOTE: All nominal levels are at ±10%. NOTE: Specifications are subject to change without notice. MTP 1500RL 15HD A SEQ • Reference Information...

  • Page 19: Part Numbers And Accessories

    CAT 6 jack (black) 10-463-10 CAT 6 jack (red) 10-463-11 CAT 6 jack (blue) 10-463-12 CAT 6 jack (orange) 10-463-13 CAT 6 jack (gray) 10-463-14 CAT 6 jack (white) 10-463-15 CAT 6 jack (ivory) 10-463-16 MTP 1500RL 15HD A SEQ • Reference Information...

  • Page 20: Mounting

    Reliable earthing (grounding) — Maintain reliable grounding of rack-mounted equipment. Pay particular attention to supply connections other than direct connections to the branch circuit (such as the use of power strips). MTP 1500RL 15HD A SEQ • Mounting...

  • Page 21: Rack Mounting Procedure

    (part number 70-077-01) by following the instructions provided with the kit. Through-desk Mounting Mount the unit through a desk or podium using the optional Extron MBD 129 through desk mounting kit (part number 70-077-02) by following the instructions provided with the kit. MTP 1500RL 15HD A SEQ • Mounting...
  • Page 22 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
