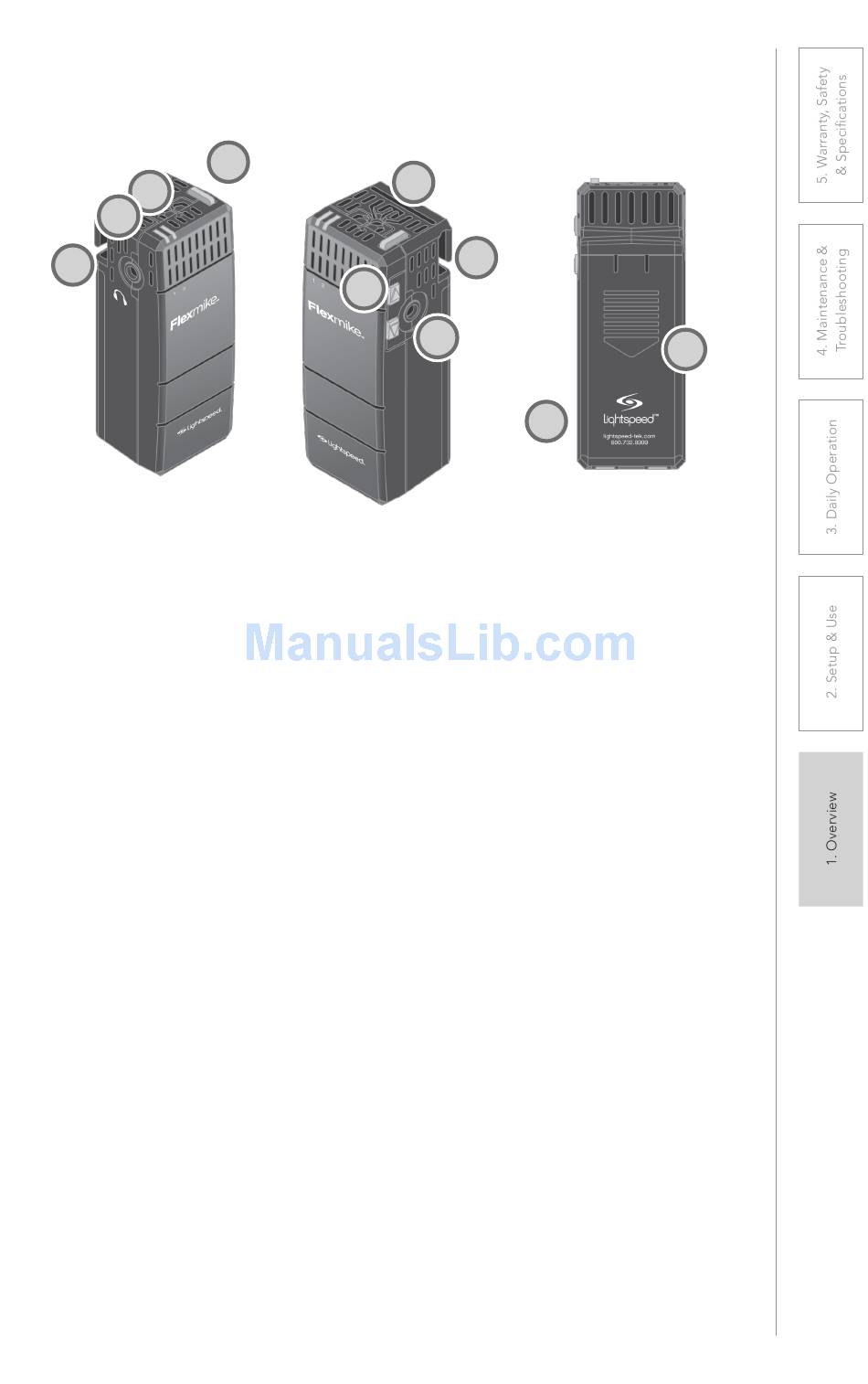

FLEXMIKE CONTROLS AND CONNECTIONS
3
2
4
1. POWER/MUTE SWITCH: press and hold to power on, press to
mute, press and hold to power off.
2. MIC 1 STATUS: lighted to indicate microphone is registered as
MIC 1
• Blue: solid = normal operation; Blue: flashing = linking in
process
• Red: solid = muted; Red: flashing = muted while linking in
process
3. MIC 2 STATUS: when using a second microphone, this LED is
lighted to indicate microphone is registered as MIC 2 (same
behavior as MIC 1 status light above)
4. EARBUD CONNECTION*: connect the earbud for monitoring
(*for use with Flexcat Pods only)
5. CHARGING/LOW BATTERY INDICATOR: lights red when
charging, green when fully charged. When in operation, turns red
to indicate low battery.
6. MICROPHONE VOLUME UP/DOWN
7. AUDIO INPUT: connect audio source to send to Redcat Access
8. LANYARD INTERFACE: insert the lanyard into this hook to wear
the Flexmike.
9. BATTERY DOOR: remove the battery door to replace the
rechargeable battery pack
10. REGISTRATION: (inside battery compartment - not shown) only
used when adding or replacing Flexmike.
