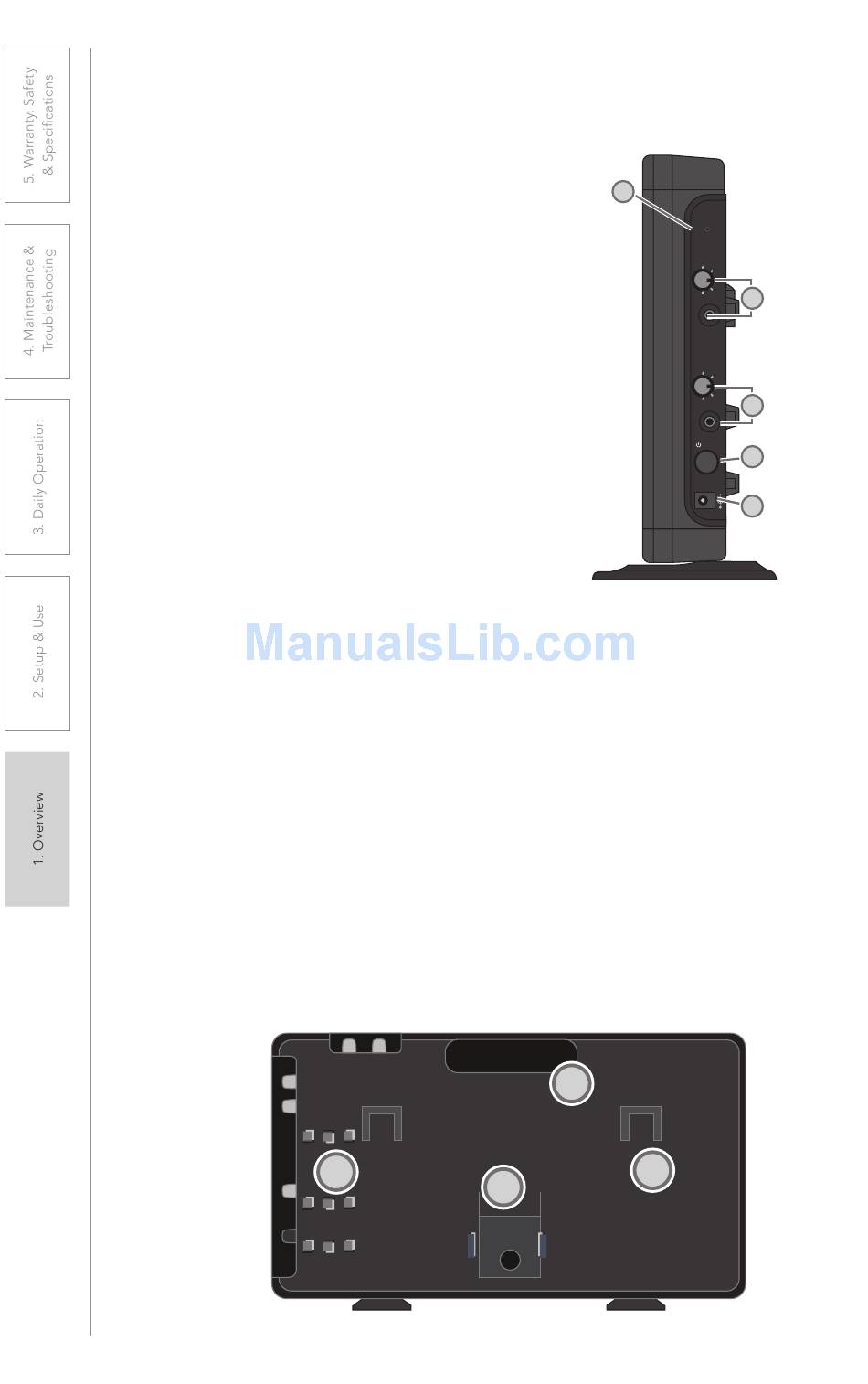

SIDE PANEL CONTROLS AND
CONNECTIONS
1. REGISTRATION: Press this button
if there is a new component, such
as a microphone, to be registered.
2.
AUDIO INPUT JACK & VOLUME
CONTROL:
for connecting classroom audio
sources to the Redcat Access.
Controls the volume level of the
audio input from the connected
audio source.
3.
AUDIO OUTPUT JACK & VOLUME
CONTROL
for connecting to an assisted
listening device (ALD) or to a
computer for recording. Controls
the volume level of the audio
output.
4.
POWER BUTTON:
used to turn the Redcat Access on
or off. The front panel blue light
will glow when power is on.
5.
DC INPUT JACK:
supply (16V/2.0A) into this jack.

REAR PANEL FEATURES

CARRYING INSET: Cutaway grip for moving or carrying
1.
the Redcat Access.
2. CABLE MANAGEMENT AND STRAIN RELIEF
3. WALL MOUNTING SLOTS
4. SECURITY BRACKET SLOT
8
3.5mm stereo connector
3.5mm stereo connector
This button is
Plug the power
2
Testing Purposes Only
1
1
3
4
REGISTER
AUDIO IN
MIN
2
MAX
AUDIO
(ALD) OUT
MIN
3
MAX
ON/OFF
4
DC INPUT
16V/2.0A
5
