5.6.3.1

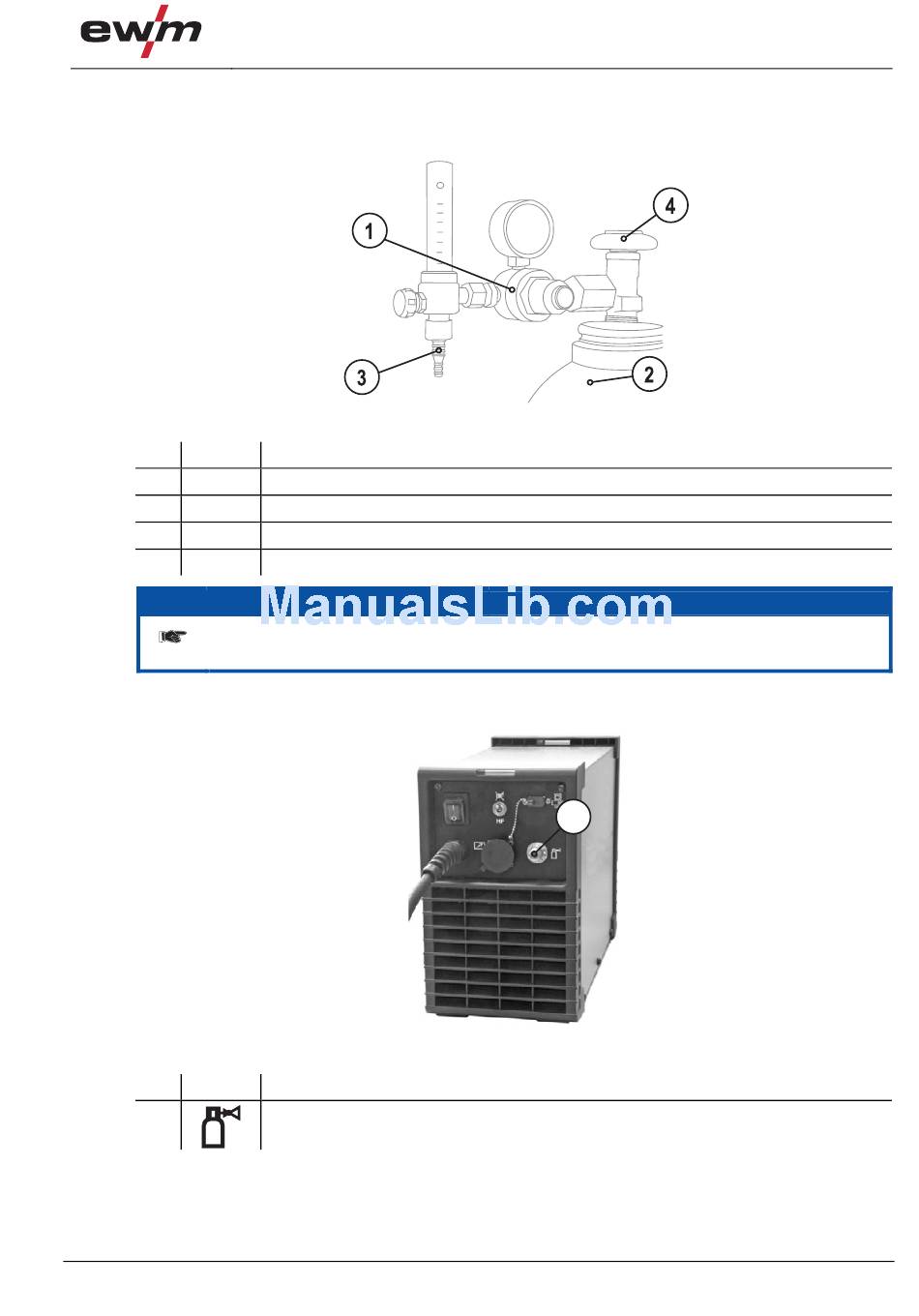

Connecting the shielding gas supply

• Place the shielding gas cylinder into the relevant cylinder bracket.
• Secure the shielding gas cylinder using a securing chain.
Item Symbol Description
1
2
3
4
Before connecting the pressure regulator to the gas cylinder, open the cylinder valve
briefly to expel any dirt.
• Tighten the pressure regulator screw connection on the gas bottle valve to be gas-tight.
• Screw gas hose connection crown nut onto the output side of the pressure regulator.
Item Symbol Description
1
• Connect crown nut of the shielding gas line to the G¼" connecting nipple.
099-000124-EW501
29.07.2011
0
Pressure regulator
Shielding gas cylinder
Output side of the pressure regulator
Cylinder valve
0
Connecting nipple G¼, shielding gas connection
Design and function
Figure 5-5
NOTE
1
Figure 5-6
TIG welding
