Machine description

Front view

4 Machine description

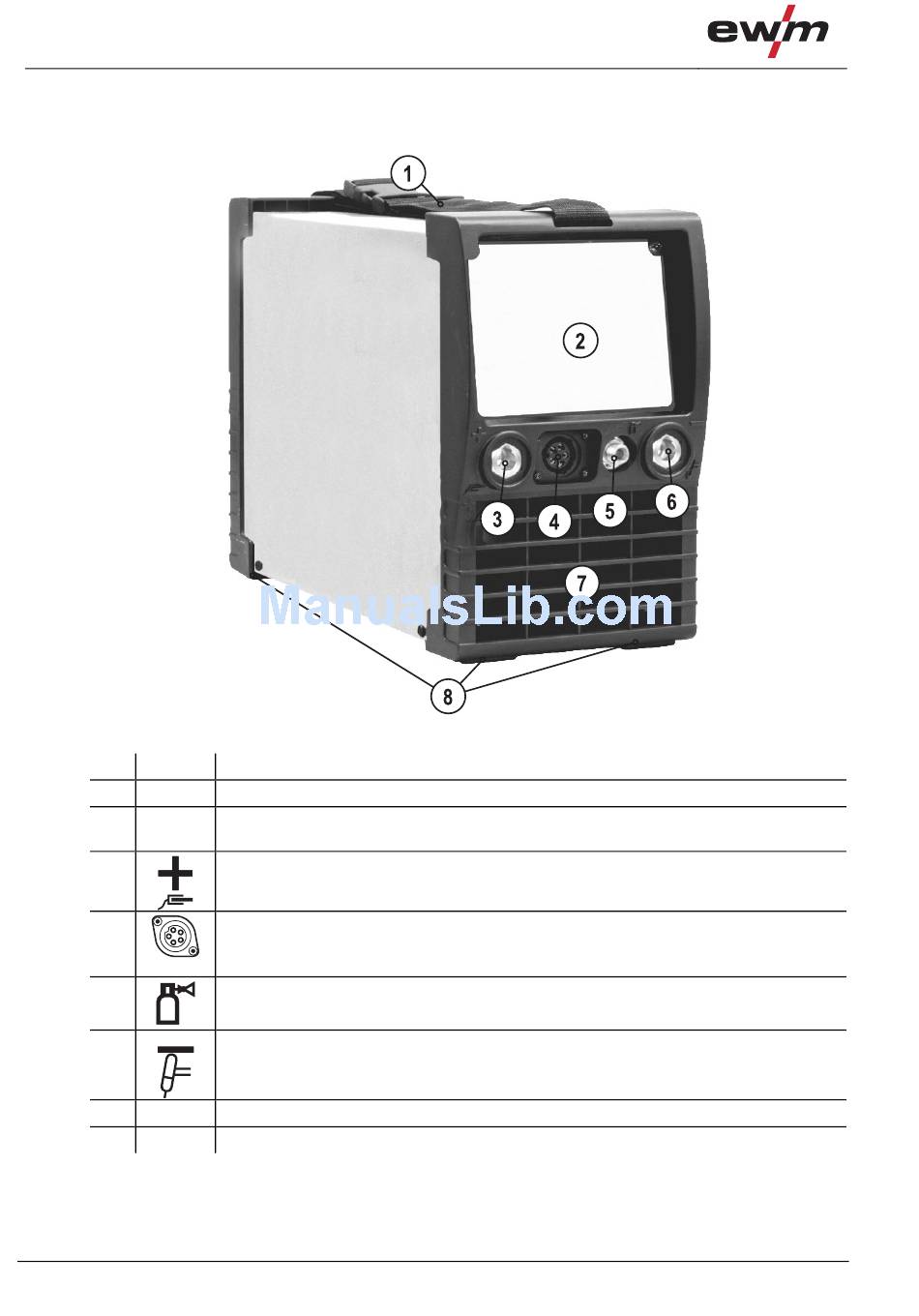

4.1 Front view
Item Symbol Description
1
2
3
4
5
6
7
8
16
0
Carrying strap
Machine control
See Machine control – operating elements chapter
Connection socket, "+" welding current
Connection for workpiece lead
Connection socket, 5-pole/8-pole
5-pole: Standard TIG torch control lead
8-pole: TIG Up/Down or potentiometer torch control lead
G¼" connecting nipple, "-" welding current
Shielding gas connection (with yellow insulating cap) for TIG welding torch
Connection socket, "-" welding current
TIG welding torch connection
Cooling air inlet
Machine feet
Figure 4-1
