Tig Up/Down Torch (8-Pole) - EWM Tetrix 180 Smart TGD Operating Instructions Manual

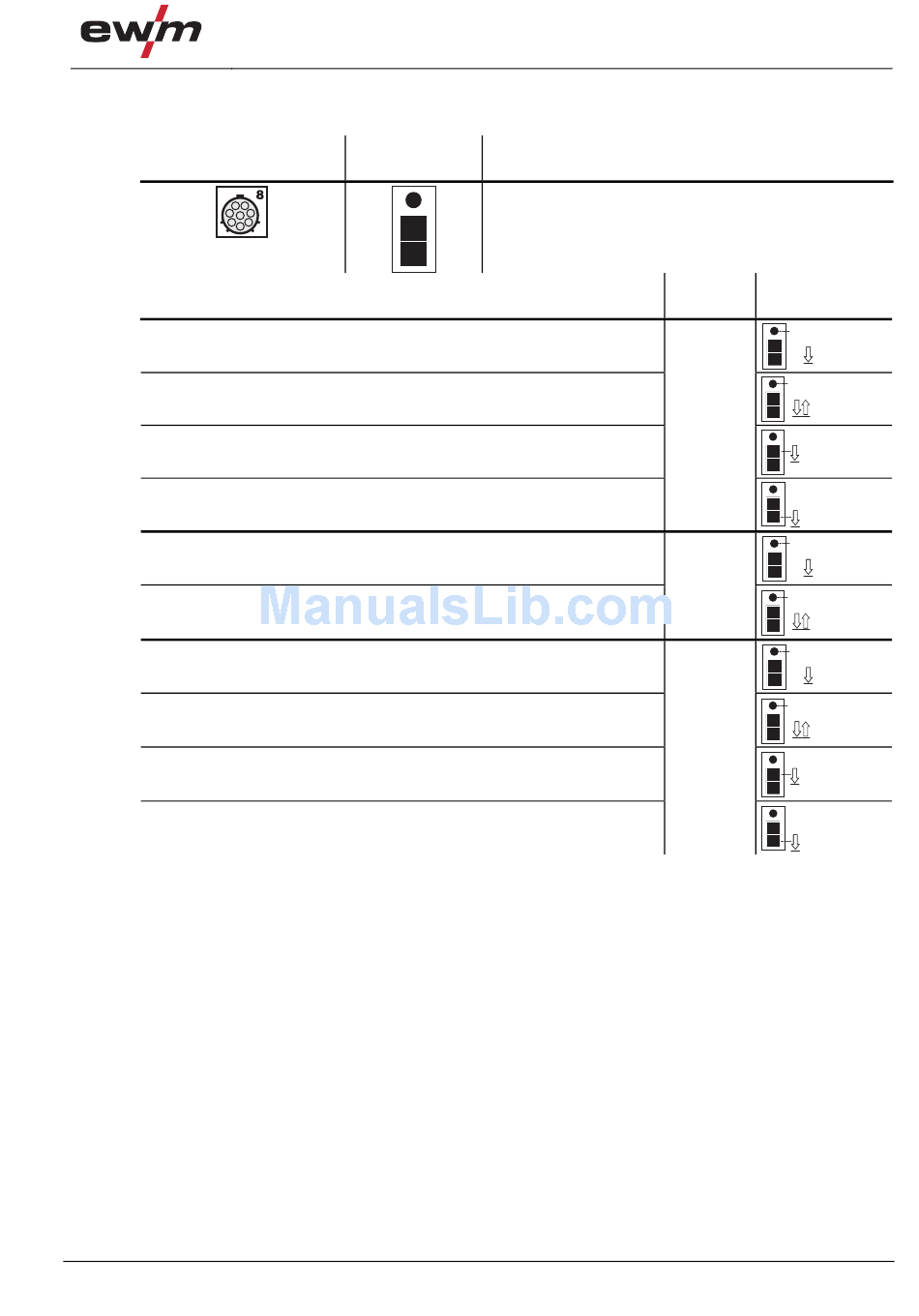

5.6.11.2 TIG up/down torch (8-pole)

Up/down torch with one torch trigger
Diagram
Functions
Welding current on/off
Secondary current (tapping mode) / (Latched mode)
Increase welding current, infinite adjustment (up function)
Reduce welding current, infinite adjustment (down function)
Welding current on/off
Secondary current (tapping mode)
Welding current on/off
Secondary current (tapping mode) / (Latched mode)
Increase welding current by an increment (see chapter "Setting the first
increment in modes 4 and 14")
Reduce welding current by an increment (see chapter "Setting the first
increment in modes 4 and 14")
099-000124-EW501
29.07.2011
Operating Explanation of symbols
elements
TT 1 = torch trigger 1
Design and function
TIG welding
Mode Operating
elements
BRT 1
BRT 1
1
(factory-
set)
Up
Down
BRT 1
2
BRT 1
BRT 1
BRT 1
4
Up
Down
41
