Dexcom G4 Platinum User Manual page 89

Most recent 5-minute
sensor glucose reading
Battery
Antenna
High glucose
alert setting
Glucose
target
range
Low glucose
alert setting

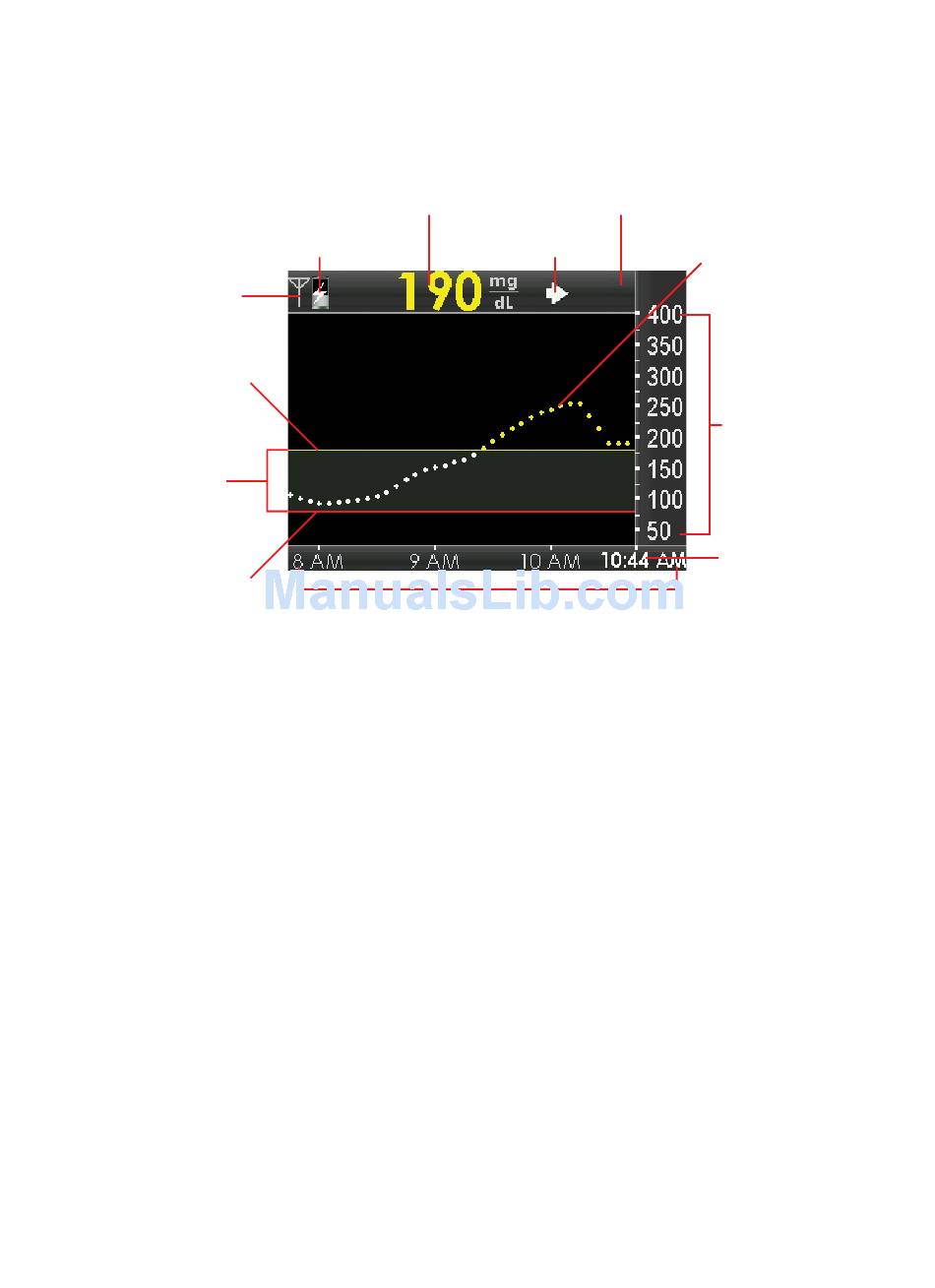

EXAMPLE: 3-Hour Trend Graph Screen
• Each "dot" on the trend graph is a sensor glucose reading reported
every 5 minutes.
• The trend graph shows the current time.
• The status area shows needed calibration updates, calibration errors
and sensor glucose reading issues.
• Your high alert setting shows as a yellow line across the trend graph.
• Your low alert setting shows as a red line across the trend graph.
• The gray zone highlights your target glucose range, based on your
high and low glucose alert settings.
• Your current sensor glucose reading is red if it is low and yellow if it
is high, based on your high and low glucose alert settings.
• If your low glucose alert is not set and your glucose is 55 mg/dL or
lower, your glucose value is red.
• If your sensor glucose readings are in between your high and low
glucose alert settings, the glucose value is white.
Trend arrow
Trend graph hours
Dexcom G4 PLATINUM (Pediatric) System User's Guide
Status area
Plot of most
recent sensor
glucose readings
Glucose
values
Current time
| 87
