Chapter 3. Using the Express Configuration Program

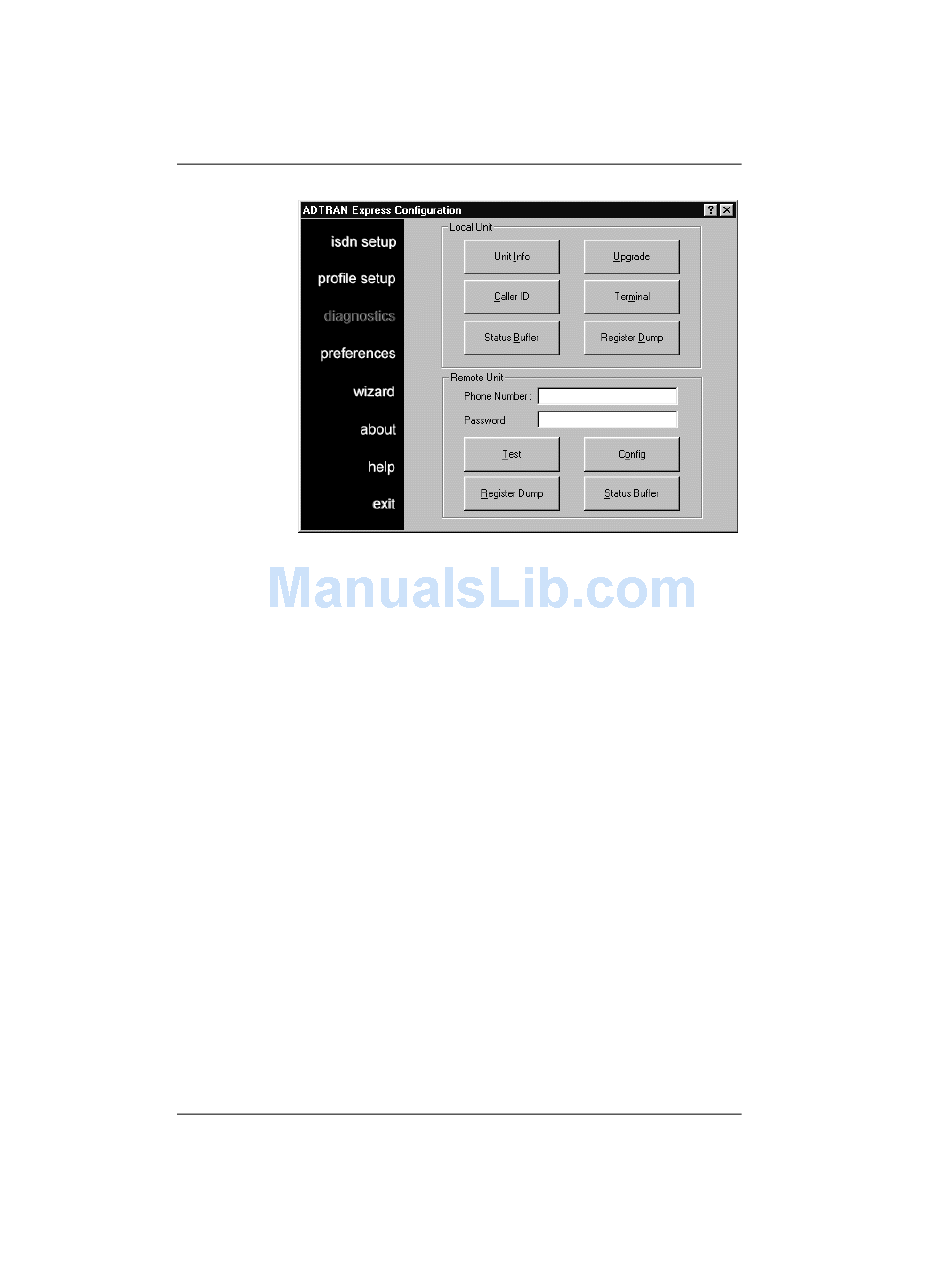

Figure 3-5. Diagnostics Window

Diagnosing Local Units

You can collect information about local units using the diagnostics
option. Click on the appropriate button to access the information you
want.

Displaying the Unit's Current Status

The Unit Info button (under diagnostics) displays the current status of
several items: ISDN Loop Status, Firmware Version, Firmware Check-
sum, and the status of an external modem.

Displaying the Express 3100's Caller ID Log Buffer

Click the Caller ID button (under diagnostics) to display the caller's
telephone number for incoming Voice and Audio calls while the log is
open. To clear the contents of the log buffer, click the Clear button.

Retrieving Current Settings

To retrieve the current Express 3100 settings, click the Register Dump
button (under diagnostics). The current settings display in a format
identical to the Preview list (see Preview Tab on page 3-9 or page 3-16).
3-22 Express 3100 User Manual 61200240L2-20
