ADTRAN TRACER E1 Quick Start Manual

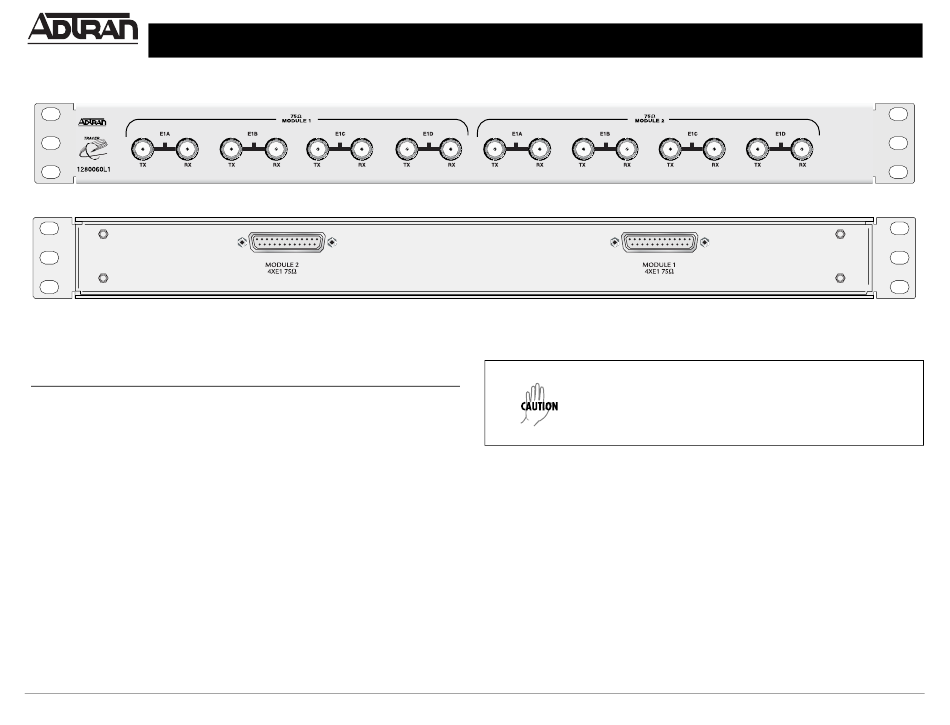

TRACER E1 BREAKOUT PANEL
Quick Start Guide
DB-25 (F ) C
EMALE ONNECTION
Pin Name
3 E1A RX TIP
6 E1A RX TIP
9 E1C RX TIP
12 E1D RX TIP
14 E1A TX TIP
17 E1B TX TIP
20 E1C TX TIP
23 E1D TX TIP
All other pins GND
Quick Start Guide, 61280060L1-13A, February 2005
P
INOUT
Description
Receive signal for E1 A interface
Receive signal for E1 A interface
Receive signal for E1 C interface
Receive signal for E1 D interface
Output signal for E1 A interface
Output signal for E1 B interface
Output signal for E1 C interface
Output signal for E1 D interface
Ground
Technical Support 1-888-4ADTRAN (1-888-423-8726)
For more detailed documentation, visit us online at
M I
OUNTING NSTRUCTIONS
Be careful not to compromise the stability of the
equipment mounting rack when installing this
product.
The TRACER E1 Breakout Panel comes ready for mounting in a 19-inch
stationary equipment rack. Mounting in a 23-inch rack requires additional
rackmount ears (ADTRAN P/N 3265622@A).
1. Position the TRACER E1 Breakout Panel in a stationary equipment
rack. This unit takes up 1U of space. To allow for proper grounding,
scrap the paint from the rack around the mounting holes where the
TRACER E1 Breakout Panel will be positioned.
2. Have someone else hold the unit in position as you install two mounting
bolts through the unit's brackets and into the equipment rack using a #2
Phillips screwdriver.
