ADTRAN NetVanta E1/FE1 Network Interface Module Quick Start Manual

Quick Start Guide

WAN-E1
S
PECIFICATIONS
E1/FE1 Interface Line Rate: 2.048 Mbps +/- 50 PPM
Line Code: AMI or HDB3
Framing: FAS with optional CRC-4
Receiver Sensitivity: -30 dB
FE1 Line Rate: Timeslot, channelized (in
multiples of 64 kbps)
Connector: RJ-48C
Clock Source Network, Internal
Diagnostics Test pattern generation and detection (QRSS,
511)
Network loopbacks
Alarm generation and detection
Network performance data (15 minutes and
24 hours)
I I
NSTALLATION NSTRUCTIONS
1. Remove power from the unit.
2. Slide the Network Interface Module (NIM) into the option
slot until the NIM is firmly seated against the front of the
chassis.
3. Secure the pins at both edges of the NIM.
4. Connect the cables to the associated device(s).
5. Complete the installation of the base unit.
6. Restore power to the unit.
Quick Start Guide, 61200868L1-13B, February 2004

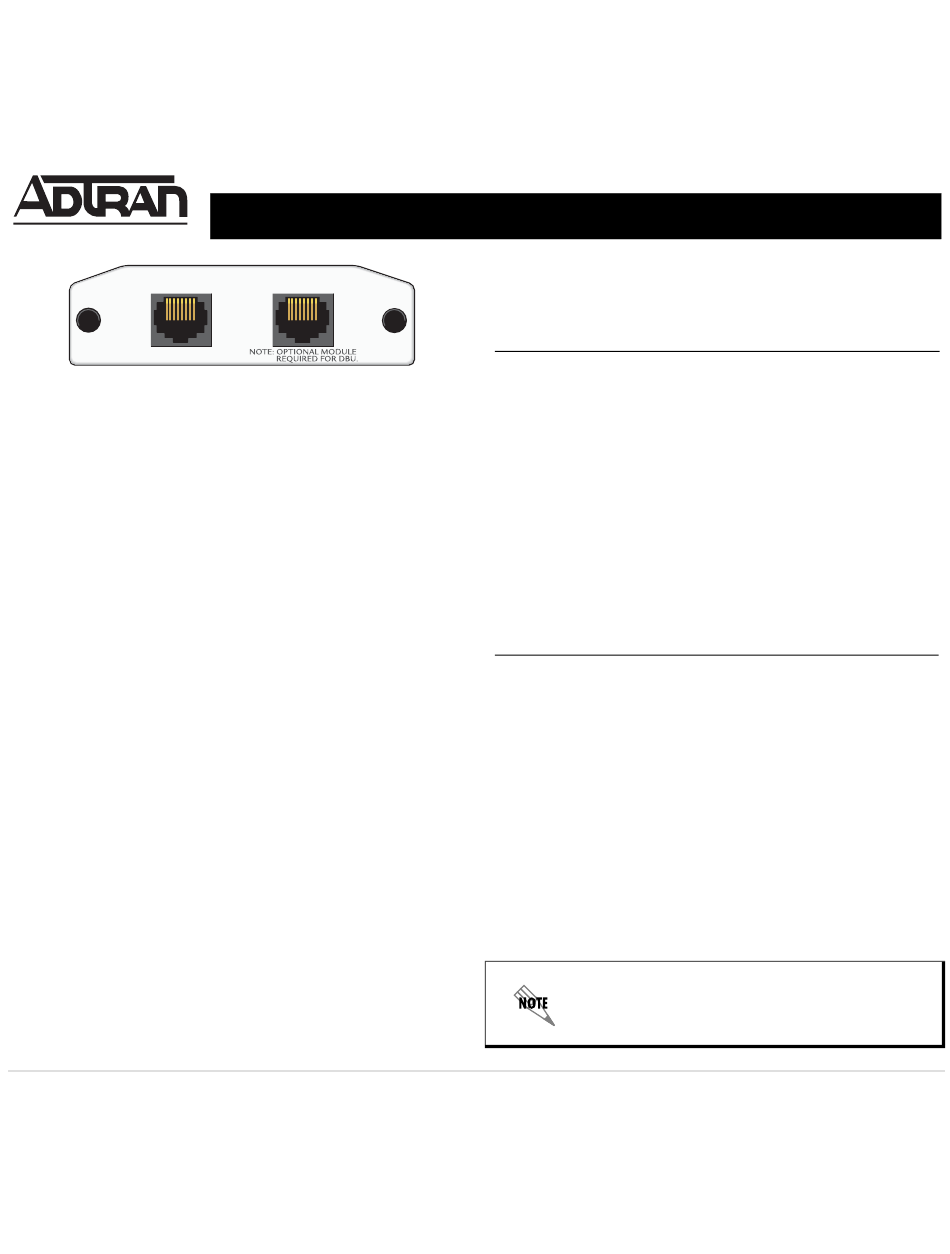

NETVANTA E1/FE1 NETWORK INTERFACE MODULE (NIM)
DBU
ADTRAN Technical Support (+1-256-963-8716)
For more detailed documentation, visit us online at
WAN-E1 N
ETWORK
P
INOUT
Pin Name Description
1 R1 Receive data from the network
2 T1 Receive data from the network
3 — Unused
4 R Transmit data toward the network
5 T Transmit data toward the network
6-8 — Unused
DBU (RJ-48C) C
ONNECTION
Pin Name Description
1-2 — Unused
3 R1 Network-Ring1
4 R Network-Ring
5 T Network-Tip
6 T1 Network-Tip1
7-8 — Unused
An optional Dial Backup Interface Module (DIM) is
required for dial backup applications.
www.adtran.com
P/N 1200868L1
(RJ-48C) C
ONNECTION
P
INOUT
© 2004 ADTRAN, All Rights Reserved
