ADTRAN NetVanta E1/FE1 + G.703 Network Interface Module Quick Start Manual

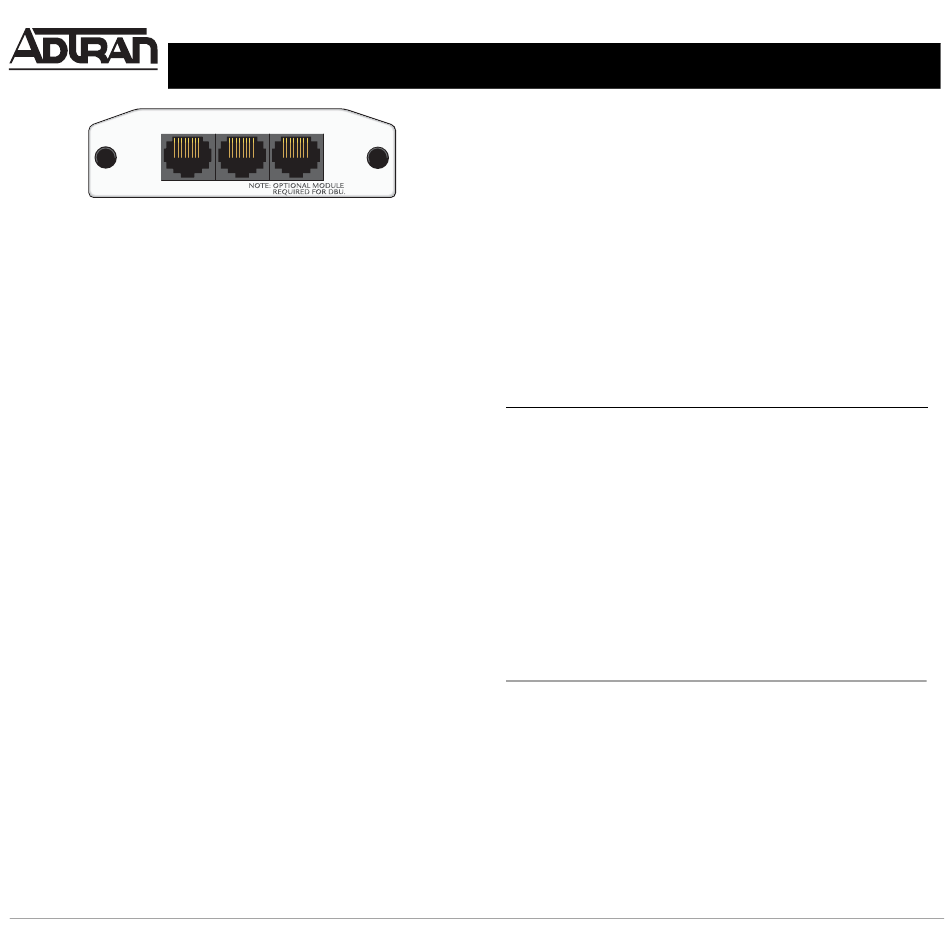

NETVANTA E1 W/ G.703 DROP NETWORK INTERFACE MODULE (NIM) P/N 1200878L1

Quick Start Guide

WAN-E1
S
PECIFICATIONS
E1/FE1 Line Rate: 2.048 Mbps +/- 50 PPM
Interface
Line Code: AMI or HDB3
Framing: FAS with optional CRC-4
FE1 Line Rate: Timeslot, channelized
(in multiples of 64 kbps)
Receiver Sensitivity: -30 dB
Connector: RJ-48C
G.703 Line Interface: Per ITU-T G.703
Interface
Receiver Sensitivity:-30 dB
Line Rate: 2.048 Mbps, +/- 50 PPM
Capacity: 1 to 31 timeslots
If timeslot 16 signaling is used on the drop port, a
maximum of 15 timeslots can be mapped to router
(1-15 or 17-31).
Line Code: AMI or HDB3
Framing: FAS with Optional CRC-4
Connector: RJ-48C
Clock Source Network, internal, and through
Diagnostics Test pattern generation and detection
(QRSS, 511)
Network loopbacks
Alarm generation and detection
Network performance data (15 minutes and 24 hours)
Quick Start Guide, 61200878L1-13B, February 2004
G.703 DBU
ADTRAN Technical Support (+1-256-963-8716)
For more detailed documentation, visit us online at
I I
NSTALLATION NSTRUCTIONS
1. Remove power from the unit.
2. Slide the Network Interface Module (NIM) into the
option slot until the NIM is firmly seated against the
front of the chassis.
3. Secure the pins at both edges of the NIM.
4. Connect the cables to the associated device(s).
5. Complete the installation of the base unit.
6. Restore power to the unit.
WAN-E1 N
ETWORK
Pin Name
1 R1
2 T1
3 —
4 R
5 T
6-8 —
G.703 (RJ-48C) C
Pin Name
1 R
2 T
3 —
4 R1
5 T1
6-8 —
www.adtran.com
(RJ-48C) C
ONNECTION
Description
Receive data from the network
Receive data from the network
Unused
Transmit data toward the network
Transmit data toward the network
Unused
P
ONNECTION INOUT
Description
Transmit data toward the DTE
Transmit data toward the DTE
Unused
Receive data from the DTE
Receive data from the DTE
Unused
© 2004 ADTRAN, All Rights Reserved
P
INOUT
