CONFIGURING AN ADTRAN EXPRESS 3000 WITH A NETGEAR FWG114P
FIREWALL/ROUTER
Configuring the ADTRAN Express 3000
1. Connect the DB-25 Serial connection on the back of the ADTRAN Express 3000
to a COM port on your PC with a serial cable.
2. Connect the ISDN wall jack to the large RJ-45 ISDN jack on the far right of the
back of the ADTRAN Express 3000 using the provided cable.
3. Power on the ADTRAN Express 3000 by plugging in the power cord.
4. From your PC, click on the "start" button, go to programs > accessories >
communications > HyperTerminal. Click on HyperTerminal.
5. In HyperTerminal, it may ask if you would like to make HyperTerminal your
default telnet client. Select "No".

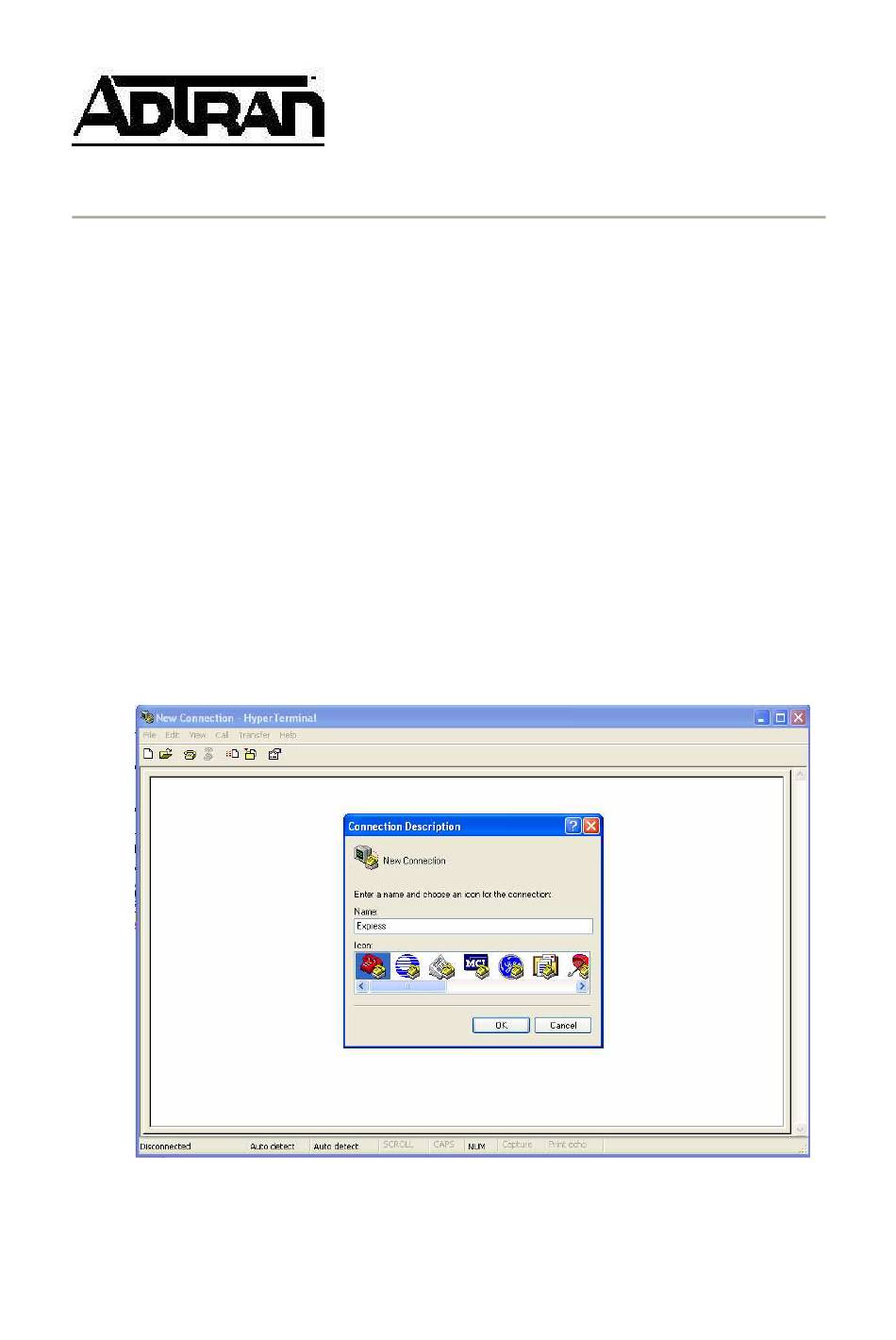

6. You will then be prompted to give the connection a name. Name the connection
"Express" and select "OK".
7. You will then be prompted with a "Connect To" window. Change the "Connect
using:" line to the COM port that the Express is connected (probably COM1).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Express 3000 and is the answer not in the manual?

Questions and answers

Related Manuals for ADTRAN Express 3000

Summary of Contents for ADTRAN Express 3000

  • Page 1 FIREWALL/ROUTER Configuring the ADTRAN Express 3000 1. Connect the DB-25 Serial connection on the back of the ADTRAN Express 3000 to a COM port on your PC with a serial cable. 2. Connect the ISDN wall jack to the large RJ-45 ISDN jack on the far right of the back of the ADTRAN Express 3000 using the provided cable.
  • Page 2 DO NOT select the ADTRAN Express 3000 if it is one of the options in the drop down menu, select the corresponding COM port. 8. You will now be prompted for “COM Properties”. Change “Bits per second:” to “9600” and “Flow control:” to “None”. Click “Apply” then “OK”.
  • Page 3 National ISDN1. All other options need to match the figure above. 11. The power/line light on the front of the Express 3000 should now be solid. If it is not, please contact your service provider and verify your ISDN line information,...
  • Page 4 1. Unplug the serial cable from the COM port of the PC and plug that end into the Modem connection on the Netgear FWG114P. The serial cable should now be connecting the Netgear FWG114P router with the ADTRAN Express 3000. 2. Use the Ethernet cable provided with the Netgear FWG114P to connect one of the local ports on the Netgear FWG114P to the Network card on your PC.
  • Page 5 4. You will then gain access to the Netgear FWG114P configuration guide. 5. You may then be asked if you wish to use NAT or Classical Routing, select NAT and click Next (If you do not see this option skip to step 6). 6.
  • Page 6 8. On the blue menu on the left of the screen, scroll down and select “Modem” under the “Serial Port” heading. 9. Verify that the settings match the figure below, and then click the “Modem Properties” button.
  • Page 7 11. This completes the configuration of the Netgear router. 12. To finish the configuration process, power down the ADTRAN Express 3000, Netgear FWG114P, and your PC. Power on the Express 3000 and wait until the power/line light is solid. Next, power on the Netgear FWG114P and wait until...
  • Page 8 “Back” button to return to the “Serial Port Status” window. The Express 3000 should connect to the server after several seconds (both Phone 1 and 2 lights should be illuminated on the front of the Express 3000 for a 128k connection). You will then be able to access the internet.
