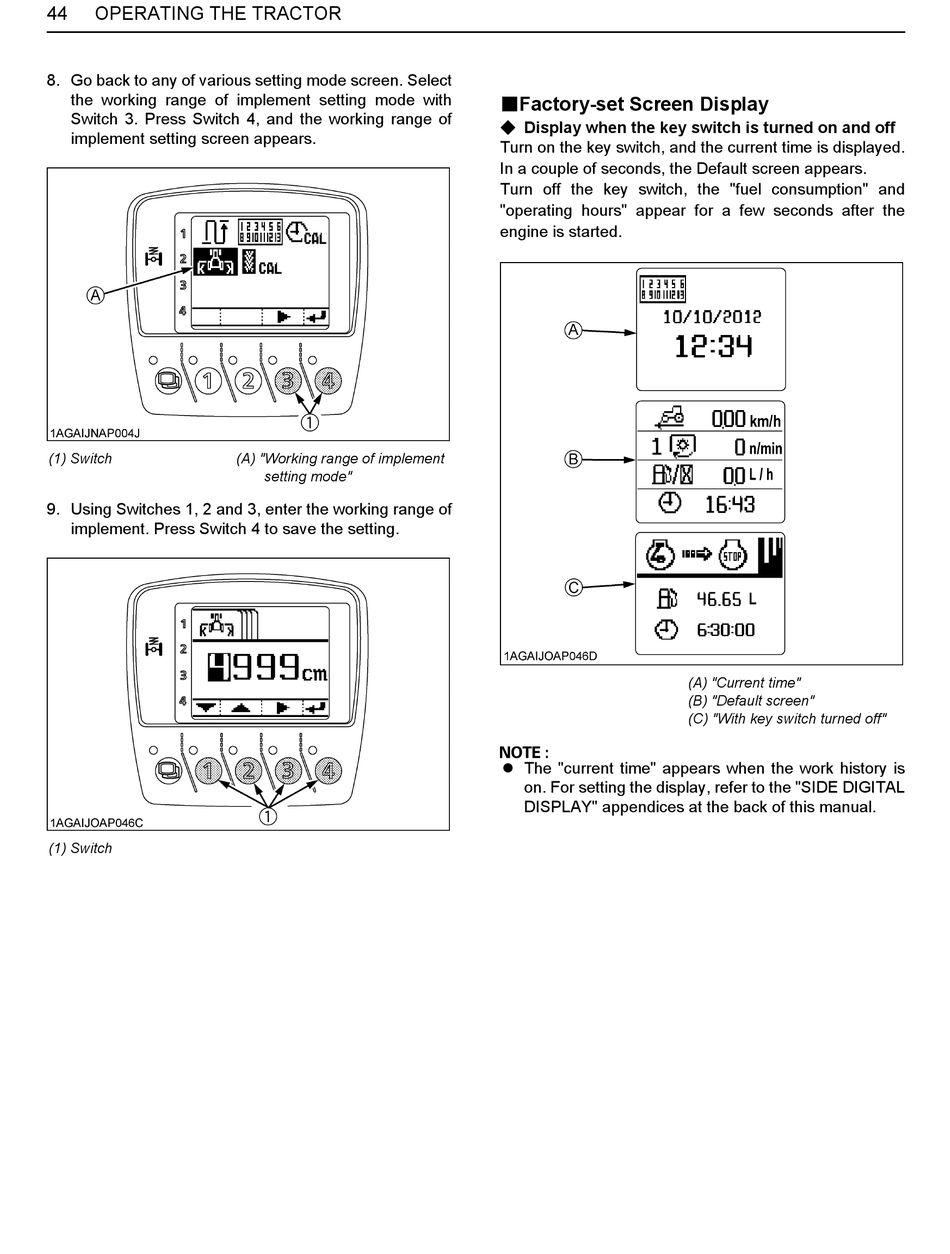

44 OPERATING THE TRACTOR
8. Go back to any of various setting mode screen. Select
the working range of implement setting mode with
Switch 3. Press Switch 4, and the working range of
implement setting screen appears.
(1) Switch
9. Using Switches 1, 2 and 3, enter the working range of
implement. Press Switch 4 to save the setting.
(1) Switch
(A) "Working range of implement
setting mode"
BFactory-set Screen Display
C Display when the key switch is turned on and off
Turn on the key switch, and the current time is displayed.
In a couple of seconds, the Default screen appears.
Turn off the key switch, the "fuel consumption" and
"operating hours" appear for a few seconds after the
engine is started.
A The "current time" appears when the work history is
on. For setting the display, refer to the "SIDE DIGITAL
DISPLAY" appendices at the back of this manual.
(A) "Current time"
(B) "Default screen"
(C) "With key switch turned off"
