BEACON LIGHT

BBeacon Light Switch
The beacon light switch with wire harness for beacon light
connection is equipped.
Turn on the key switch and press the bottom half of the
beacon light switch. Then the beacon light and indicator of
switch will be activated.
Press the top half of the switch, and turn off the light and
the indicator.

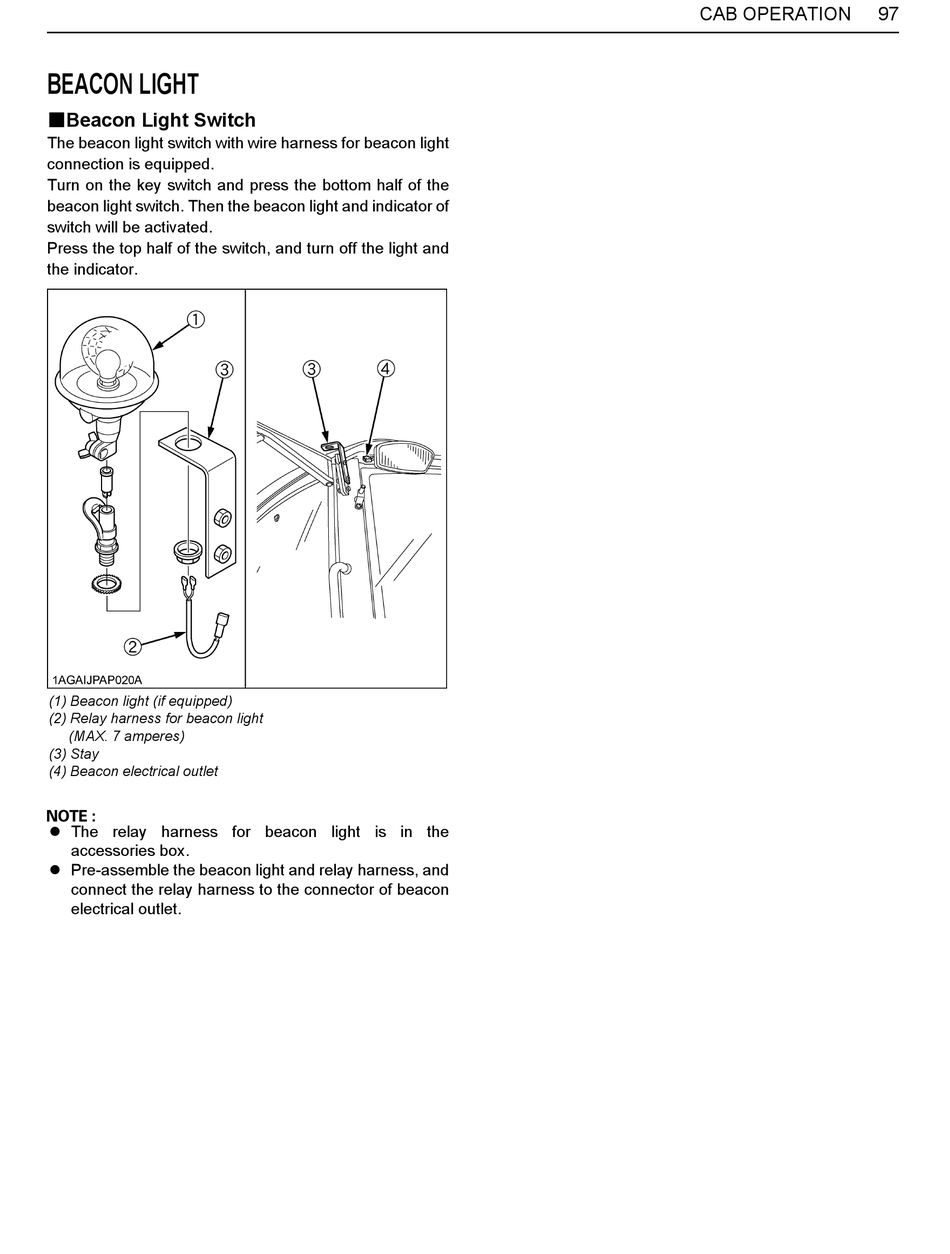

(1) Beacon light (if equipped)
(2) Relay harness for beacon light
(MAX. 7 amperes)
(3) Stay
(4) Beacon electrical outlet
A The relay harness for beacon light is in the
accessories box.
A Pre-assemble the beacon light and relay harness, and
connect the relay harness to the connector of beacon
electrical outlet.
CAB OPERATION 97
