3.1 Introduction

UTC consists of a PC-based computer that is housed in an Aluminum extrusion. You

can install a HDD, DRAM, and Compact Flash (A/B platform only) by removing the

rear cover. Any maintenance or hardware upgrades can be easily completed after

removing the rear cover.

Warning! Do not remove the rear cover until you have verified that no power is

flowing within the UTC. Power must be switched off and the power cord

must be unplugged.

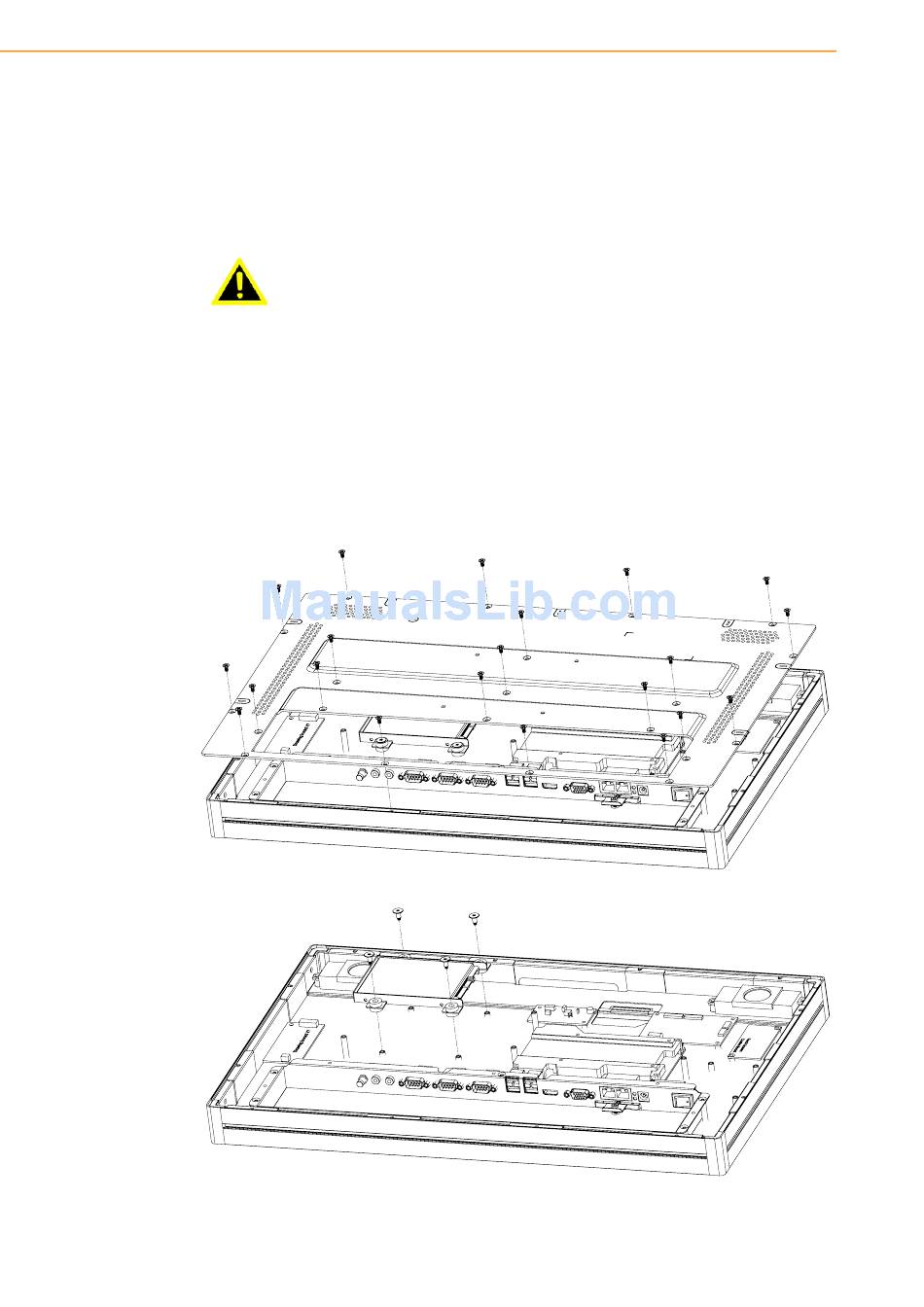

UTC reserved a 2.5" SATA Storage Bay for customization. Please refer below figures

illustration for reference

Detach and remove the rear cover.

Place the Storage in the metal bracket, and tighten the screws

Connect SATA signal and power cable to MB and HDD/SSD

Put the rear cover on and tighten the screws.

UTC-515/520/532 User Manual
