3.3 Installing CFAST (A/B platform only)

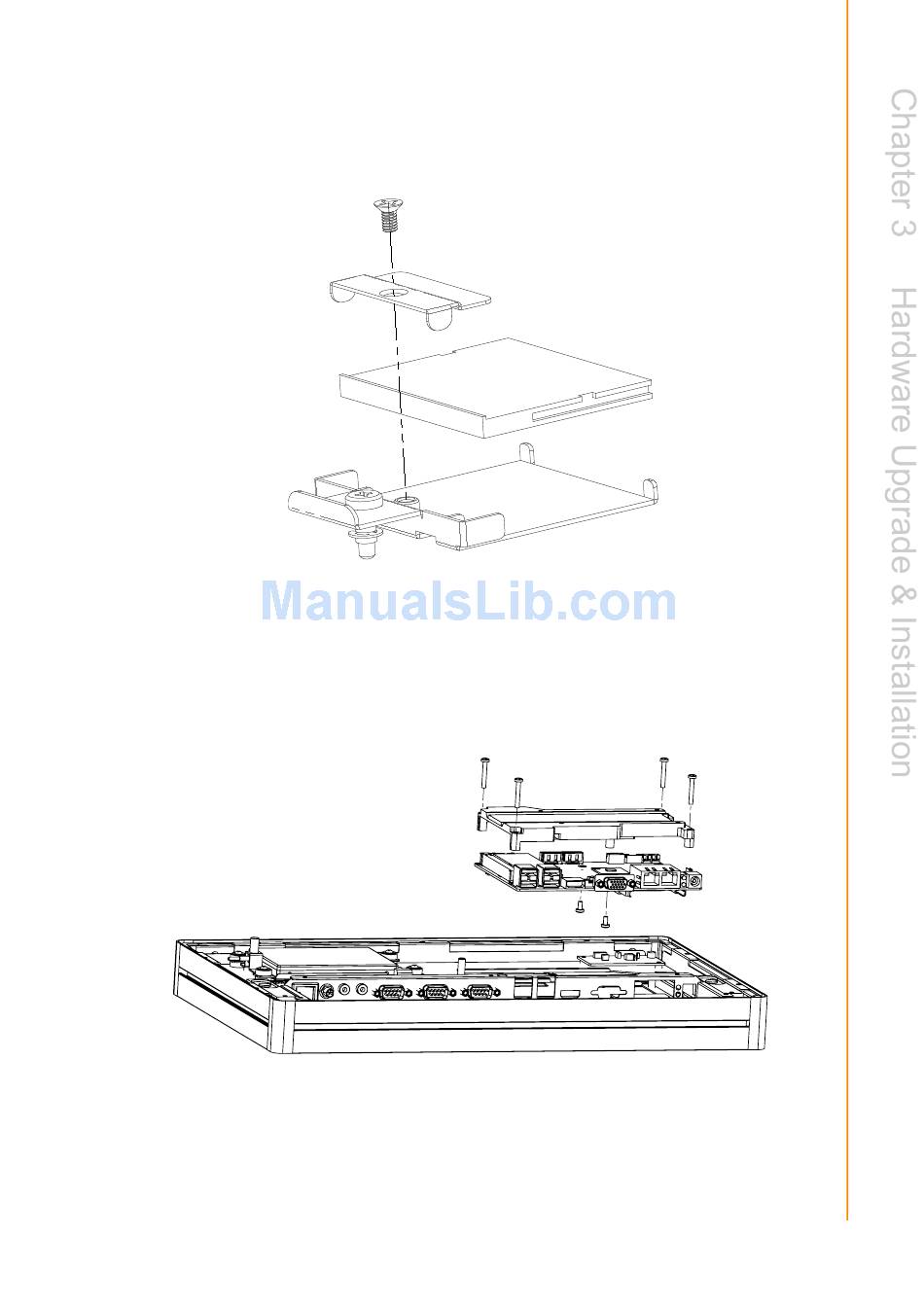

Please follow the CFAST Card assembly as in the following diagram. (Note the direc-
tion of the CFAST).

3.4 Installing the Memory

1. Detach and remove the rear cover.
2. Remove the 4 pcs screws on the Heatsink.
3. Turn to bottom side and remove the 2 pcs screws.
4. Install DRAM in the SO-DIMM socket.
23 UTC-515/520/532 User Manual
