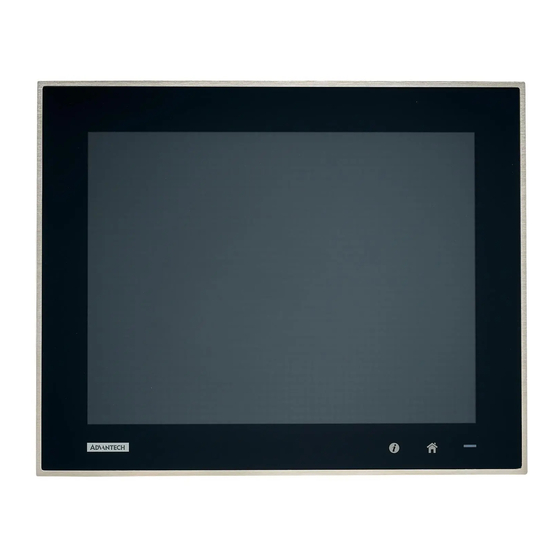

- Page 1 User Manual SPC-515 Series Stainless Steel Multi-Touch Panel Computer with Intel Skylake Processor 申請商 : 研華股份有限公司 地址 : 台北市內湖區瑞光路 26 巷 20 弄 1 號 電話 :02-27927818...
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
- Page 3 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
- Page 4 This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information.
- Page 5 The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
- Page 6 SPC-515 Series User Manual...
-
Page 7: Table Of Contents
USB Pin Definition with M12 Connector..........20 Power Input Pin Definition with M12 Connector........21 Appendix B UI Operating Process ......23 UI Operating Process................24 Table B.1: Status Indicator Table..........24 Table B.2: Button Code Hotkeys..........29 SPC-515 Series User Manual... - Page 8 SPC-515 Series User Manual viii...
-
Page 9: Chapter 1 General Information
Chapter General Information... -
Page 10: Introduction
Front LED indicator shows operating status Fanless passive cooling Packing List 4 x VESA mount screws 1 x Registration and warranty card 1 x Simplified chinese manual 1 x China ROHS list SPC-515 Series User Manual... -
Page 11: Specifications
1024 x 768 Maximum Colors 16.7M ° ° Viewing Angle / 176 Luminance (cd / m2) Backlight Note! There might be several bright or dark pixels on the LCD. This phenome- non is normal in today’s LCD manufacturing. SPC-515 Series User Manual... -
Page 12: Touchscreen Specifications
This product is intended to be supplied by a listed power adapter or DC power source, rated 24Vdc, 2.5A minimum and Tma 55°C minimum, if you need further assistance, please contact Advantech for further information. I/O Ports Arrangement The arrangement of the I/O ports is shown in Figure 1.1. -
Page 13: Vesa Mounting
The SPC-200 has been designed with support for the VESA mount standard which supports 100mm standard VESA dimension holes (Refer to figure 1.2.). Use M4 screws (Length 8mm to 10 mm). Warning! Use suitable mounting apparatus to avoid risk of injury. Figure 1.2 VESA Mounting SPC-515 Series User Manual... -
Page 14: Dimensions And Cutout
Dimensions and Cutout SPC-515 Weight: 10kg Dimensions (W x H x D): – 389.6 x 313.7 x 56 mm (15.33 x 12.34 x 2,2 in) Figure 1.3 SPC-218 Dimensions SPC-515 Series User Manual... -
Page 15: Chapter 2 System Setup
Chapter System Setup... -
Page 16: System Setup
The power lines can either be of some power adapter or in-house power source. Power Input Pin Number Signal (Male) DC 24V- DC 24V- DC 24V+ M12-A-5P-M DC24V+ Power F_GND Figure 2.2 Pin Definition of Power Connector SPC-515 Series User Manual... - Page 17 Figure 2.3 Power Receptor with M12 Connector Plug the power lines into the system power receptor with M12 connector. Power on the system. SPC-515 Series User Manual...
-
Page 18: Installing The Drivers
SPC-218/221 will use the built-in PCT touch driver in the OS if operating under Win- dows 10. 2.2.2 Installation of Watchdog Driver Enter into Watchdog folder, double click AdvWDT icon, and then click Next under InstallShield Wizard window. Select "Advantech [SCH311X] WDT” and click “Next”. Click “Install”. SPC-515 Series User Manual... - Page 19 Click “Finish” to finish the installation. Select “Yes, I want to restart my computer now” and click “OK”. After installing Watchdog driver, a "Watchdog Service Configuration" icon will show in control panel. SPC-515 Series User Manual...
-
Page 20: Installation Of Graphic Driver
Watchdog timer function. 2.2.3 Installation of Graphic Driver Enter into TS folder, enter into” graphic driver for Windows 7" Driver folder and double click setup icon, and then click Next under setup wizard window. Click Install. SPC-515 Series User Manual... - Page 21 Select “Express” and click Next. Click Accept. Click Finish to finish the installation. SPC-515 Series User Manual...
-
Page 22: Installation Of Lan Driver
Installation of LAN Driver Enter TS folder, then go to “Ethernet driver for Windows 7 Driver” folder and Double click setup icon, then click Next under setup wizard window. Click Install. Click Finish to finish the installation. SPC-515 Series User Manual... -
Page 23: Wake Up From Suspend Mode
/ south bridge and press Enter key. Select "SB USB Configuration” and press Enter key. Select “USB Device Wake up from S3” and change to Disable than save your change and exit. After reboot, the USB wake up function will be disabled. SPC-515 Series User Manual... - Page 24 SPC-515 Series User Manual...
-
Page 25: Features In Windows Embedded
Chapter Features in Windows Embedded... -
Page 26: Features In Windows Embedded
Advantech provides a pair of utilities to operate EWF, OSLock and OSUnLock. Refer to the training slide in the folder: “Advantech XPe Add-one.pdf”. -
Page 27: Appendix A M12 Connector I/O Pin Definition
Appendix M12 connector I/O pin definition... -
Page 28: Lan1 / Lan2 Pin Definition With M12 Connectors
Signal (Female) TX_D1+ TX_D1- RX_D2+ BI_D3+ M12-A-8P-F BI_D3- RX_D2- BI_D4+ BI_D4- RS-232 Pin Definition with M12 Connector RS-232 Pin Number Signal (Male) M12-A-8P-M RS-232 USB Pin Definition with M12 Connector Pin Number Signal (Female) M12-A-8P-F Shielding SPC-515 Series User Manual... -
Page 29: Power Input Pin Definition With M12 Connector
Power Input Pin Definition with M12 Connector Pin Number Signal (Male) DC 24V- DC 24V- DC 24V+ M12-A-5P-M DC 24V+ Power F_GND SPC-515 Series User Manual... - Page 30 SPC-515 Series User Manual...
-
Page 31: Appendix Bui Operating Process
Appendix UI Operating Process... -
Page 32: Ui Operating Process
UI Operating Process This section tells you how to operate the HMI utility (GL_Utility), you can download the utility from Advantech's product support portal of SPC-218/221 at http://support.advantech.com. See the process below: There are 2 function buttons in the lower right corner of the front panel, “I” icon is the “intelligent”... - Page 33 Home - Long press to disable / enable touch function Note! When touch function is disabled, you'll see a message in the lower right corner of the screen. SPC-515 Series User Manual...
- Page 34 Press Intelligent Key-> Intelligent - Advantech Intelligent Utility A. Quick start-> – Press “+” to add shortcut. – Long press the icon to perform “right click” until an “X” mark appears in upper right corner to “delete”. SPC-515 Series User Manual...
- Page 35 Password confirmation for authority confirmation is needed when you first log in, default password is “1234” without input order to active. – Setting - Home-key: Select an executable file to set up as "Home-key" App, in default path is to show “desktop”. SPC-515 Series User Manual...
- Page 36 Setting - Brightness: Brightness control from 1 to 8. Note! If you use other brightness setting tools such as iManager, remember not to adjust below 10 percent to prevent a black screen. – Setting - Password: Change password function. SPC-515 Series User Manual...
- Page 37 Apps/SW applications. The codes are defined from general keyboard input. Table B.2: Button Code Hotkeys One press Long press I - Intelligent Key Icon) Ctrl+Shift+Alt+I Ctrl+Shift+Alt+U H - Home Key Icon Ctrl+Shift+Alt+H Ctrl+Shift+Alt+L SPC-515 Series User Manual...
- Page 38 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2020...
