- Page 1 User Manual ITA-8100 10.4” Panel PC with Intel® Atom™ Processer and EN50155 Certification for Railway Applications...
- Page 2 No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable.
- Page 3 Technical Support and Assistance Visit the Advantech website at http://support.advantech.com to obtain the latest product information. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before calling: –...
- Page 4 Ne pas laissez ce matériel dans un environnement où la température de stock- age peut descendre en dessous de -40 °C (-40 °F) ou être supérieure à 70 °C (158 °F). Ceci pourrait endommager l'équipement. L'équipement doit être main- tenu dans un environnement contrôlé. ITA-8100 User Manual...
- Page 5 Conformément à la norme CEI 704-1:1982, l’opérateur ne doit pas expérimenter un niveau sonore supérieur à 70 dB (A). AVERTISSEMENT: Ces consignes suivent la norme CEI 704-1. Advantech décline toute responsabilité concernant l'exactitude des déclarations con- tenues dans ce document. Declaration of Conformity This equipment has been tested and found to comply with the limits for a Class A dig- ital device, pursuant to part 15 of the FCC Rules.
- Page 6 N'essayez pas de recharger, d'ouvrir de force ou de chauffer la batterie. Remplacez la batterie exclusivement par le même type ou par un type équivalent recommandé par le fabricant. Jeter les batteries usagées conformément aux instructions du fabricant.” Note! Notes provide additional optional information. ITA-8100 User Manual...
-
Page 7: Table Of Contents
Safety and Environment................3 1.4.1 Safety.................... 3 1.4.2 Environment.................. 3 Panel and Cutout Dimensions..............3 Figure 1.1 ITA-8100 Dimensions Diagram ........3 Chapter Connectors and Function Keys ..5 Introduction ....................6 I/O Connectors ..................6 Bezel Key Mapping ................... 8... - Page 8 ITA-8100 User Manual viii...
-
Page 9: Chapter 1 General Information
Chapter General Information Introduction Specifications Power Information Safety and Environment Panel and Cutout Dimensions... -
Page 10: Introduction

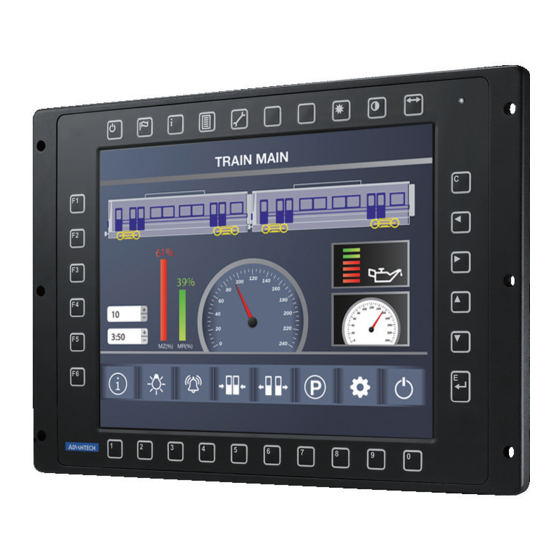

Introduction Advantech’s ITA-8100 touch panel PC is a fanless human machine interface (HMI) equipped with a 10.4-inch high-brightness (500 nits) display with projective capacitive touchscreen aimed at railway applications. The panel’s small flat design offers space savings for easy installation in driver cabins, while the configuration flexibly allows the system to be adjusted for specific applications and train models. -
Page 11: System Power
Shock and Vibration: IEC 61373 Panel and Cutout Dimensions Unit: mm[inch] 310 [12.205] 295.65 [11.640] 70 [2.756] 92.5 [3.642] 295.65 [11.640] 70 [2.756] 14.33 [0.564] 267 [10.512] Panel Cutout 97.6 [3.843] Figure 1.1 ITA-8100 Dimensions Diagram ITA-8100 User Manual... - Page 12 ITA-8100 User Manual...
-
Page 13: Chapter 2 Connectors And Function Keys
Chapter Connectors and Function Keys Introduction I/O Connectors Bezel Key Mapping... -
Page 14: Introduction
The following sections show the pin assignments for the I/O connectors and bezel key mapping to facilitate application integration. I/O Connectors AUDIO POWER Pin Number Definition Female (RS-422/485) 485-422_TX- 485-422_TX+ M12-A-5P-F 422_RX+ 422_RX- Pin Number Definition Female M12-A-4P-F ITA-8100 User Manual... - Page 15 Pin Number Definition Female M12-A-8P-F Pin Number Definition Female LAN_MDI0+ LAN_MDI0- LAN_MDI1+ LAN_MDI1- M12-X-8P-F LAN_MDI3+ LAN_MDI3- LAN_MDI2- LAN_MDI2+ AUDIO Pin Number Definition Male Line Out_R Line Out_L MIC_R M12-A-5P-M MIC_L Audio_GND POWER Pin Number Definition Male M12-A-4P-M ITA-8100 User Manual...
-
Page 16: Bezel Key Mapping
Bezel Key Mapping Image Image Backlight on/ off; Reset* SHIFT F2 LEFT SHIFT F3 RIGHT SHIFT F4 SHIFT F5 DOWN SHIFT F6 ENTER SHIFT F7 SHIFT F8 SHIFT F9 SHIFT F10 ITA-8100 User Manual... - Page 17 *Press the power button (K1) for less than 1 second: Backlight on/off Press and hold the power button (K1) for 5 seconds: System reset ITA-8100 User Manual...
- Page 18 ITA-8100 User Manual...
-
Page 19: Appendix A Panel Mounting
Appendix Panel Mounting... -
Page 20: Panel Mounting
Panel Mounting M6x20L ITA-8100 User Manual... -
Page 21: Appendix Bdc Power Connection
Appendix DC Power Connection... -
Page 22: Dc Power Connection
Disconnect the Power Source Turn off the equipment and the DC power outlet. Disconnect the power cable from the equipment. Remove the signal cables from the connectors. Remove the earthed cable from the protective earthed terminal of the equip- ment. ITA-8100 User Manual... -
Page 23: Connexion Pour Source D'alimentation
Eteignez la source d'alimentation CC et l'équipement. Débranchez le c?ble d'alimentation de l'équipement. Retirez les c?bles de signal des connecteurs. Retirez le c?ble de mise à la terre de la borne de protection de mise à la terre de l'équipement. ITA-8100 User Manual... - Page 24 ITA-8100 User Manual...
-
Page 25: Appendix C Watchdog Sample Code
Appendix Watchdog Sample Code... -
Page 26: Watchdog Sample Code
<< "wait_OBF failed\n"; cout.flush(); return false; int wait_IBF(int Port) int icount; for(icount=0;icount<0xFF;icount++) int iValue = inb(Port); if((iValue&IBF) == 0x00) return true; usleep(1000); cout << "wait_IBF failed\n"; cout.flush(); return false; void DummyPort() int iRet = inb(0x299); wait_IBF(0x29A); ITA-8100 User Manual... - Page 27 0x29A); wait_IBF(0x29A); outb(0x5F, 0x299); wait_IBF(0x29A); outb(0x64, 0x299); void StartWD() iopl(3); DummyPort(); outb(0x89, 0x29A); wait_IBF(0x29A); outb(0x57, 0x299); wait_IBF(0x29A); outb(0x04, 0x299); wait_IBF(0x29A); outb(0x28, 0x29A); void StopWD() iopl(3); DummyPort(); outb(0x29, 0x29A); wait_IBF(0x29A); int main(int argc, char** argv) { SetWD(); while(1) ITA-8100 User Manual...
- Page 28 StartWD(); usleep(5000000); StopWD(); return 0; ITA-8100 User Manual...
- Page 29 ITA-8100 User Manual...
- Page 30 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2019...
