Waldorf 800 Series RN8910GE Installation And Operation Manual

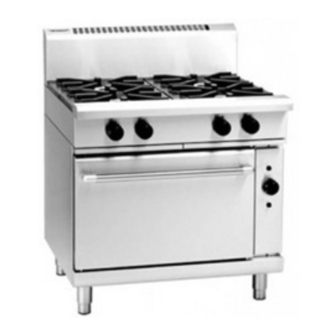

Gas range electric static/convection oven
Hide thumbs
Table of Contents

Advertisement

Quick Links

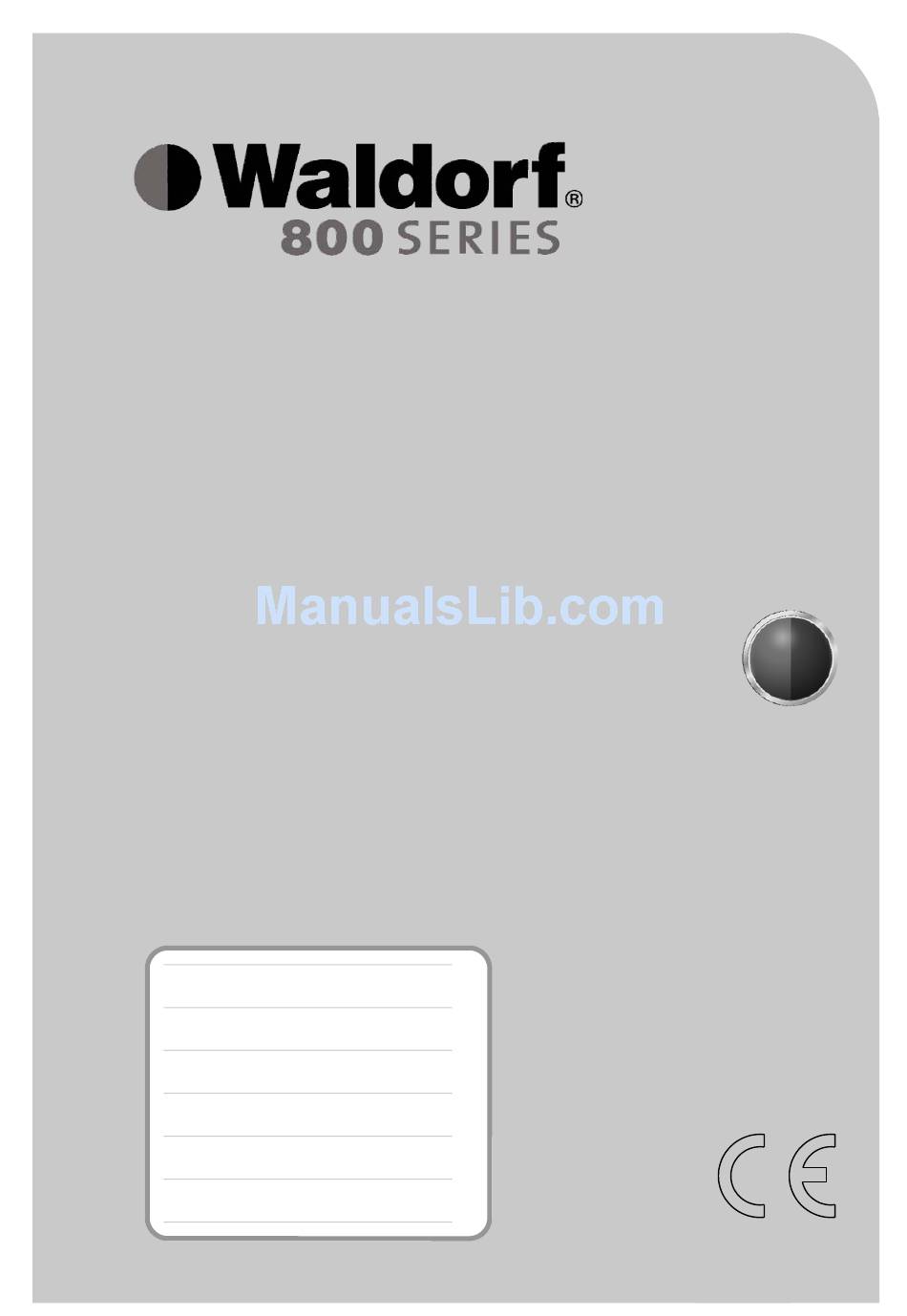

I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l
Gas Range Electric
Static/Convection Ovens
RN8 9 1 0 G E
RN8910GEC
RNB8 9 1 0G E
RNB8910GEC
Date Purchased
Serial Number
Dealer
Service Provider
R N L 8 9 1 0 G E
RNL8910GEC
R N L B 8 9 1 0 G E
RNLB8910GEC
For use in GB & IE
232781-9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 800 Series RN8910GE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Waldorf 800 Series RN8910GE

Summary of Contents for Waldorf 800 Series RN8910GE

  • Page 1 I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l Gas Range Electric Static/Convection Ovens RN8 9 1 0 G E R N L 8 9 1 0 G E RN8910GEC RNL8910GEC...
  • Page 2 MANUFACTURED BY Moffat Limited Christchurch New Zealand INTERNATIONAL CONTACTS AUSTRALIA Moffat Pty Limited Web: www.moffat.com.au E.Mail: vsales@moffat.com.au Main Office: (tel) +61 (03) 9518 3888 (fax) +61 (03) 9518 3833 Service: (tel): 1800 622 216 Spares: (tel): 1800 337 963 Customer Service: (tel): 1800 335 315 (fax): 1800 350 281...

  • Page 3: Table Of Contents

    Contents List Waldorf Gas Range Electric Static / Convection Ovens RN(L)(B)8910GE Gas Range Electric Static Oven 900mm, 4 Burner. RN(L)(B)8910GEC Gas Range Electric Convection Oven 900mm, 4 Burner. Introduction ....................2 Specification ....................3 Model Numbers Covered in this Specification...

  • Page 4: Introduction

    We are confident that you will be delighted with your WALDORF GAS RANGE ELECTRICAL STATIC / CONVECTION OVEN and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Waldorf appliance, there are two important things you can do.

  • Page 5: Specification

    Specifications Model Numbers Covered in this Specification RN[1]8910GE 4 Open Burners + Electric Static Oven. RN[1]8910GEC 4 Open Burners + Electric Convection Oven. NOTE: [1]: - Model Options; - Standard Models. - Low Back Models. - Bold Front. - Low Back and Bold Front. [2] - Open Burner Options;...

  • Page 6: Gas Supply Requirements

    Specifications Gas Supply Requirements - Australia: Natural Gas LP Gas (Propane) Input Rate (N.H.G.C.) 28 MJ/hr 28 MJ/hr - each Open Burner Supply Pressure 1.13 - 3.40 kPa 2.75 - 4.50 kPa Burner Operating Pressure (*) 0.95 kPa 2.6 kPa Gas Connection ”...
  • Page 7 Specifications - All Other Markets: Natural Gas Town Gas (**) Input Rate (N.H.G.C.) 28MJ/hr 28MJ/hr - each Open Burner Supply Pressure 1.13 - 3.40kPa 0.75 - 1.50kPa Burner Operating Pressure (*) 0.95kPa 0.63 Pa Gas Connection See ‘Gas Connection’ information overleaf LP Gas (Propane) Butane Input Rate (N.H.G.C.)

  • Page 8: Electrical Supply Requirements

    Specifications Electrical Supply Requirements 1-Phase Connection 3-Phase Connection MODEL 1P+N+E 3P+N+E 230-240V 400-415V L1 - 8.2 Amps 6.5 kW, RN8910GE 6.5 kW L2 - 9.2 Amps 26.6 Amps @ 235 V L3 - 9.2 Amps L1 - 9.5 Amps 6.8 kW, RN8910GEC 6.8 kW L2 - 9.2 Amps...

  • Page 9: Dimensions

    Dimensions RN(L)8910GE / GEC Refer to Page 8 for Cook Top Options...

  • Page 10: Installation

    Waldorf Gas Range Electrical Ovens are designed to provide years of satisfactory service, and correct installation is essential to achieve best performance, efficiency and trouble-free operation.

  • Page 11: Clearances

    Installation Clearances NOTE: Only non-combustible materials can be used in close proximity to this appliance. Combustible Surface Non Combustible Surface Left / Right hand side 250mm (*) Rear 100mm * Side clearances can be 50mm when adjacent surface is at least 100mm below cooking surface. Assembly This model is delivered completely assembled.

  • Page 12: Gas Connection

    Installation Gas Connection NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY A QUALIFIED SERVICE PERSON. It is essential that gas supply is correct for appliance being installed and that adequate supply pressure and volume are available. The following checks should be made before installation:- a.

  • Page 13: Electrical Connection

    Installation Electrical Connection Warning HIS APPLIANCE MUST BE EARTHED F SUPPLY CORD IS DAMAGED IT MUST BE REPLACED BY A SUITABLY QUALIFIED PERSON IN ORDER TO AVOID A HAZARD NOTE: ALL ELECTRICAL CONNECTIONS MUST ONLY BE CARRIED OUT BY A QUALIFIED PERSON.

  • Page 14: Commissioning

    Installation Commissioning Before leaving the new installation; a. Check the following functions in accordance with operating instructions specified in 'Operation' section of this manual.  Light the Open Burners. (F - Flame Failure Option).  Light the Open Burners. (PF - Pilot and Flame Failure Option). ...

  • Page 15: Operation

    / operator. Waldorf appliances have been designed to provide simplicity of operation and 100% safety protection. Improper operation is almost impossible, however bad operation practices can reduce the life of the appliance and produce a poor quality product.

  • Page 16: Open Burners

    Operation Open Burners ('F' - Flame Failure Option) Lighting the Open Burners Flame Failure Protection is incorporated for each burner by way of a thermo-electric system which will shut off gas supply to that burner in the event that burner goes out, so that un-burnt gas is not expelled.
  • Page 17 Operation Ovens ! IMPORTANT DO NOT USE aluminium foil or trays directly on cast iron sole plate(s). NEVER block or cover openings on each side of sole plate(s). Oven is fitted with top and bottom elements. The thermostat maintains oven temperature by controlling both elements.

  • Page 18: Cleaning And Maintenance

    Cleaning and Maintenance Before Commencing Cleaning Caution Always turn off the gas / electrical supply before cleaning the appliance. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. NOTE: ...

  • Page 19: Open Burner Cleaning

    Cleaning and Maintenance Open Burner Cleaning Oven Interior Cleaning 1. Remove pot stands, burner caps, burner bowls 1. Do not use wire brushes, steel wool or other abrasive materials to clean oven interior. and pot stand supports from top of cooktop. Wash with hot soapy water, using a soft 2.

  • Page 20: Fault Finding

    Fault Finding This section provides an easy reference guide to more common problems that may occur during operation of your appliance. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers most common problems reported, you may encounter a problem not covered in this section.

  • Page 21: Wiring Schematic

    Wiring Schematic RN8910GE Wiring Schematic...
  • Page 22 Wiring Schematic RN8910GE - Wiring Diagram...
  • Page 23 Wiring Schematic RN8910GEC Wiring Schematic...
  • Page 24 Wiring Schematic RN8910GEC - Wiring Diagram...

  • Page 25: Gas Conversion And Specifications

    Gas Conversion and Specifications Conversion Procedure Caution Ensure that the Appliance is isolated from the gas supply before commencing servicing. NOTE:  These conversions should only be carried out by qualified persons. All connections must be checked for leaks before re-commissioning the appliance. ...
  • Page 26 Gas Conversion and Specifications Gas Regulator NOTE, Pin rotated for Natural Gas NOTE: Gas regulator supplied convertible between Natural Gas Gas, it’s outlet NOTE, Pin rotated pressure is fixed ex-factory and is for LPG NOT to be adjusted. - Town Gas Only. Cap Nut Remove slotted cap from regulator.

  • Page 27: Gas Specifications

    Gas Conversion and Specifications Gas Specifications - Australia: Natural Gas LP Gas (Propane) Ø 2.45mm Ø 1.50mm Main Burner Injectors Open Burner 0.30 0.20 Pilot Burner ('PF' Option Only) 1.13 - 3.40 kPa 2.75 - 4.50 kPa Supply Pressure 0.95 kPa 2.6 kPa Burner Operating Pressure (*) Gas Regulator Cap Screw...
  • Page 28 Gas Conversion and Specifications - All Other Markets: Natural Gas Town Gas (**) Main Burner Ø 2.45mm Ø 4.50mm Open Burner Pilot Burner ('PF' Option Only) 0.30 0.60 Supply Pressure 1.13 - 3-4 kPa 0.75 - 1.50 kPa Burner Operating Pressure (*) 0.95 kPa 0.63 kPa Adjustable Regulator...

  • Page 29: Replacement Parts List

    Replacement Parts List Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for servicing and repair of this appliance. Instructions supplied with parts should be followed when replacing components. further information servicing instructions, contact your nearest authorized service branch (contact details are as shown on reverse of front cover of this manual).
  • Page 30 Replacement Parts List General 232535 Pot Stand. 228883 Spill Tray 227892 Side Rack LH. 227893 Side Rack RH. 227896 Oven Rack. 228571 Index Mark Moulding. 227963 Neon Orange. 227962 Neon Green. 227850 Adjustable Legs. 229674 Rear Roller Assy. Accessories 228800 900mm Plinth Kit.
