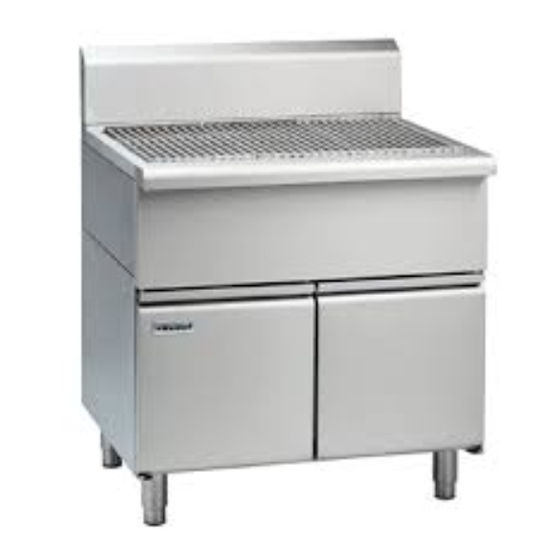

Solid fuel grills

Advertisement

Quick Links

I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l
Solid Fuel Grills
S F8 6 00
S F8 9 00
S F8 1 20
240608-1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 800 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Waldorf 800 Series

  • Page 1 I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l Solid Fuel Grills S F8 6 00 S F8 9 00 S F8 1 20 240608-1...
  • Page 2 Moffat Limited Rolleston 7675 New Zealand AUSTRALIA Moffat Pty Limited Web: www.moffat.com.au E.Mail: vsales@moffat.com.au Main Office: (tel) +61 (03) 9518 3888 (fax) +61 (03) 9518 3833 Service: (tel): 1800 622 216 Spares: (tel): 1800 337 963 Customer Service: (tel): 1800 335 315 (fax): 1800 350 281 CANADA Serve Canada...
  • Page 3 SF8600 Solid Fuel Grill, 600mm wide. SF8900 Solid Fuel Grill, 900mm wide. SF8120 Solid Fuel Grill, 1200mm wide. Model Numbers Covered in this Specification Installation Requirements Installation Ventilation Unpacking Clearances Fitting Optional Rear Rollers to Cabinet Base Commissioning Operation Guide Recommendations for Types of Wood to Use Lighting the Firebox for Normal Use Maintaining the Firebox Heat...
  • Page 4: Injury Or Death

    We are confident that you will be delighted with your WALDORF SOLID FUEL GRILL, and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Waldorf SOLID FUEL GRILL, there are two important things you can do.
  • Page 5: Plan View

    SF8600 Solid Fuel Grill, 600mm wide. SF8900 Solid Fuel Grill, 900mm wide. SF8120 Solid Fuel Grill, 1200mm wide. PLAN VIEW FRONT VIEW - CABINET BASE (- CB MODELS) FRONT VIEW - CABINET BASE with DOOR(S) (- CD MODELS) SIDE VIEW SF8600 - 600mm Wide 190kg SF8900 - 900mm Wide...
  • Page 6 - generating / heating appliances. Waldorf Solid Fuel Grills are designed to use solid fuels for commercial cooking applications. These appliances should provide years of satisfactory service, and correct installation is essential to achieve the best performance, efficiency and trouble-free operation.
  • Page 7  Remove all packaging.  Check equipment and parts for damage. Report any damage immediately to carrier and distributor.  Remove protective plastic coating from side panels.  Check that the Ash Rake has been supplied as a loose item. ...
  • Page 8 Raise appliance from floor by approximately 75mm using suitable lifting equipment (i.e. Palletiser / Forklift) to allow rear adjustable feet to be removed. Unscrew and remove both rear adjustable feet from rear Rear Leg leg housings. Housing Fit rear roller to rear leg housing and align screw hole in side of rear leg housing with threaded hole in rear roller.
  • Page 9 NOTE: Use an approved supplier in your area, to obtain properly seasoned hardwood with a moisture content of less than 20% moisture. There are a variety of hardwoods that can be used to fuel your grill. Each type will have different characteristics. For example, Apple, Cherry and Oak give off good heat with very few sparks and have excellent charcoaling effect.
  • Page 10 At the end of cooking operations / end of day, to cool down the cooking area, use the ash rake to spread any live coals over the full area of the firebox to help cool down / extinguish the live coal bed. Allow the live coals to cool down naturally.
  • Page 11 Clean the grill regularly. A clean grill looks better, will last longer and will perform better. Carbonised grease on the grill will hinder the transfer of heat from the cooking surface to the food. This will result in loss of cooking efficiency. DO NOT use water on the grill while this item is still hot as warping and cracking may occur.
  • Page 12 IMPORTANT: When ordering replacement parts, please quote the part number and the description as listed below. If the part required is not listed below, request the part by description and quote the model and serial number which is on the rating plate. SOLID FUEL GRILL - PARTS LIST Part No.
