Summary of Contents for Waldorf PCB8140G

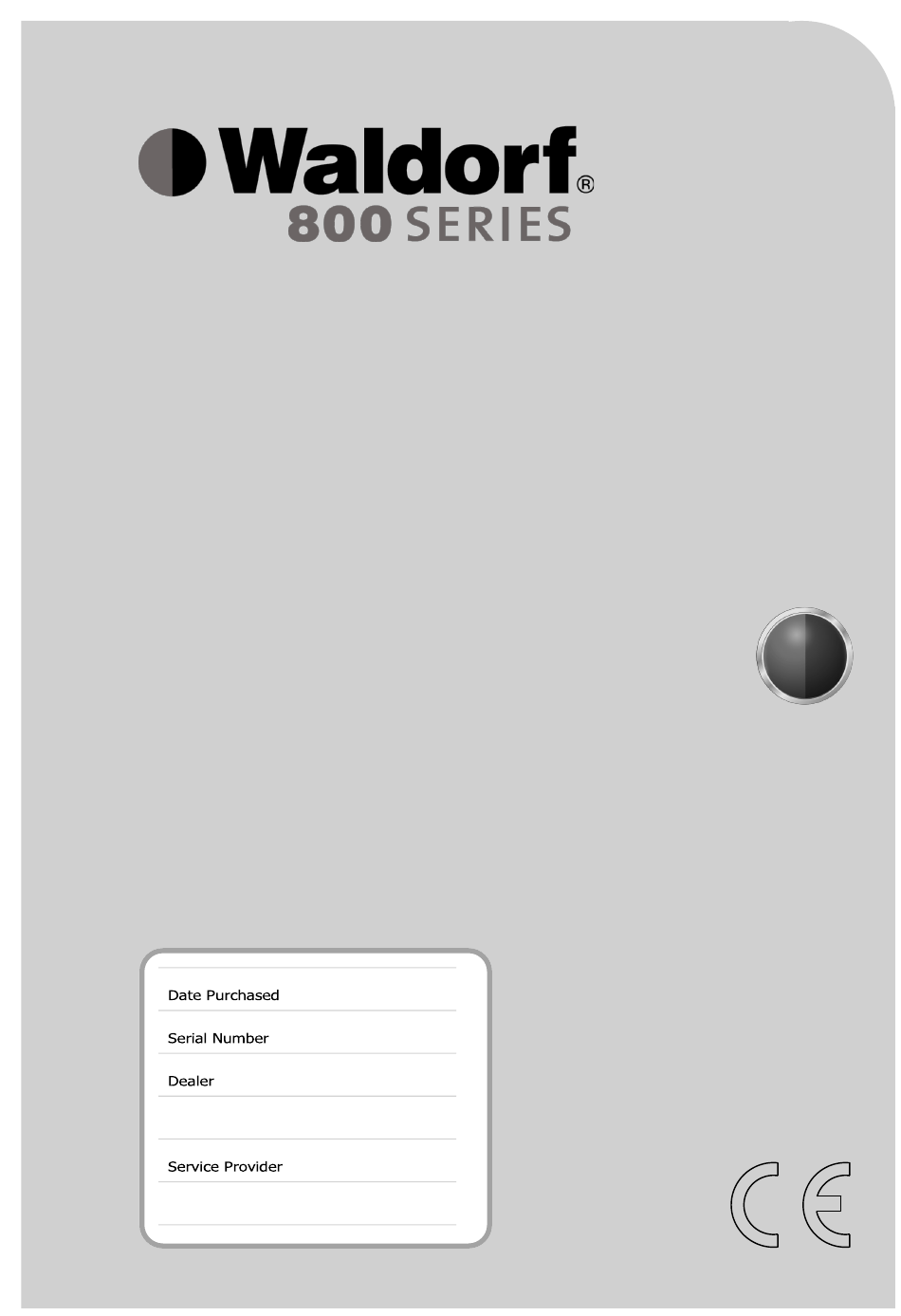

- Page 1 I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l Gas Pasta Cooker PC8 14 0 G PC L8 1 4 0 G PC B8 1 4 0 G PC L B8 1 40 G For use in GB &...
- Page 2 Moffat Limited Rolleston 7675 New Zealand AUSTRALIA Moffat Pty Limited E.Mail: vsales@moffat.com.au Main Office: (tel): +61 (03) 9518 3888 (fax): +61 (03 9518 3833 Service: (tel): 1800 622 216 Spares: (tel): 1800 337 963 Customer Service: (tel): 1800 335 315 (fax): 1800 350 281 CANADA Serve Canada...
- Page 3 PC(L)(B)8140G GAS PASTA COOKER (Single Tank - 40 Ltr) Model Numbers Covered in this Specification General Optional Accessories Gas Supply Requirements Gas Connection Water Supply Requirements Installation Requirements Unpacking Location Clearances Assembly Gas Connection Water Connection Drainage Connection Commissioning Operation Guide Description of Controls Before Use Filling the Tank...
- Page 4 We are confident that you will be delighted with your WALDORF GAS PASTA COOKER and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Waldorf appliance, there are two important things you can do.
- Page 5 PC[1]8140G GAS PASTA COOKER (Single Tank - 40 Ltr) NOTE: [1]: - Model Options; - Standard. - Low Back. - Bold Front. - Low Back & Bold Front. A commercial heavy duty, gas fired high performance Pasta Cooker designed for pasta cooking commercial high production output, using LPG (Propane) or Natural Gas.
- Page 6 - All Other Markets: Input Rating (N.H.G.C.) 46 MJ/hr 47 MJ/hr 47 MJ/hr Supply Pressure 1.13 - 3.40 kPa 2.75 - 4.50 kPa 2.75 - 4.50 kPa Burner Operating Pressure (*) 0.92 kPa 2.6 kPa 2.6 kPa Gas Connection ¾” BSP Male NOTE: ...
- Page 8 Waldorf pasta cookers are designed to provide years of satisfactory service and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. This appliance must be installed in accordance with National installation codes and in addition, in accordance with relevant National / Local codes covering gas and fire safety.
- Page 9 NOTE: Only non-combustible materials can be used in close proximity to this appliance. In order to facilitate easy operation, drainage and servicing of appliance, a minimum of 600mm clearance should be maintained at front of appliance. Any gas burning appliance requires adequate clearance and ventilation for optimum and trouble-free operation.
- Page 10 NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY A QUALIFIED SERVICE PERSON. Waldorf Pasta Cookers do not require an electrical connection, they function totally on gas supply only. It is essential that gas supply is correct for appliance to be installed and that adequate supply pressure and volume are available.
- Page 11 Verify operating pressure remains correct Burner Operating Check pilot flame size. (Re-adjust if required Pressure Test Point by changing pilot injector. Refer to Gas Conversion Section). Gas Control Valve Fig 2 This appliance is to be installed with adequate backflow protection and in compliance with local water regulations in force.
- Page 12 WALDORF 'Pasta Cookers have been designed to provide simplicity of operation and 100% safety protection. Improper operation is almost impossible, however bad operation practices can produce a poor quality product. To use this pasta cooker correctly please read the following sections carefully;...
- Page 13 REAT CARE MUST BE TAKEN BY OPERATOR TO USE THE PASTA COOKER SAFELY TO GUARD AGAINST RISK OF INJURY AND FIRE DO NOT LEAVE PASTA COOKER UNATTENDED DURING OPERATION DO NOT OVER FILL WATER IN PASTA COOKER ABOVE UPPER FILL LEVEL MARK ...
- Page 14 With pasta cooker tank full of water, pilot burner can be lit. Check gas supply is turned ‘On’ at mains supply. Depress and rotate gas control knob to ‘PILOT’ position and hold knob depressed. Open front access door and depress piezo igniter located on bulkhead panel, until pilot burner ignites.
- Page 15 DO NOT USE FLAMMIBLE SOLVENTS AND CLEANING AIDS ON OR IN CLOSE PROXIMITY OF PASTA COOKER HOT. WHILST COOKER IS STILL Clean pasta cooker regularly. A clean pasta cooker looks better, will last longer and will perform better. A dirty pasta cooker will hinder transfer of heat from cooking surface to food. This will result in loss of cooking efficiency.
- Page 16 Locking Slide Locking Slide Fig 6 Fig 5 Clean interior of pan regularly after each use. Do not use wire brushes on pan. Clean using a mild detergent and a hot water solution using soft cloth or a soft bristled brush. Dry appliance thoroughly using a dry clean cloth.
- Page 17 DO NOT ATTEMPT TO MOVE PASTA COOKER WHILST COOKER IS FULL OF WATER. BEFORE ATTEMPTING TO MOVE PASTA COOKER, ENSURE THAT ALL WATER HAS BEEN DRAINED FROM TANK. REFER TO INFORMATION ON PREVIOUS PAGE ON HOW TO DRAIN WATER FROM PASTA COOKER. NOTE: ...
- Page 18 This section provides an easy reference guide to the more common problems that may occur during operation of your equipment. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section.
- Page 19 PC8140G Pasta Cooker...
- Page 20 NOTE: These conversions should only be carried out by qualified persons. All connections must be checked for leaks before re-commissioning the appliance. Adjustment of components that have adjustments / settings sealed (e.g. paint sealed) can only be adjusted in accordance with the following instructions and shall be re- sealed before re-commissioning this appliance.
- Page 21 NOTE, Pin rotated - NAT Gas / LPG / Butane Only. for Natural Gas NOTE: Gas regulator supplied convertible between Natural Gas and LP Gas, but it’s outlet pressure is fixed ex-factory and NOTE, Pin rotated for LPG is NOT to be adjusted. On completion of gas conversion, replace gas type labels located at:- - Rear of unit, above gas connection.
- Page 22 - Australia Main Burner Injectors Ø 3.10mm Ø 1.90mm 0.62 0.35 Pilot Burner Injectors Low Fire Screw Ø 1.55mm Ø 1.55mm Fully Out (c.c.w.) Fully Out (c.c.w.) High Fire Screw 1.13 - 3.40 kPa 2.75 - 4.50 kPa Supply Pressure 0.92 kPa 2.6 kPa Burner Operating Pressure (*)
- Page 23 - All Other Markets: Main Burner Injectors Ø 3.10mm Ø 1.80mm Ø 1.70mm 0.62 0.35 0.35 Pilot Burner Injectors Ø 1.55mm Ø 1.55mm Ø 1.55mm Low Fire Screw 2 turns out (c.c.w.) Fully In (c.w.) Fully In (c.w.) Fully Out (c.c.w.) Fully Out (c.c.w.) Fully Out (c.c.w.) High Fire Screw...
-
Page 24: Replacement Parts List
Replacement Parts List IMPORTANT: IMPORTANT: When ordering spare parts, please quote part number and description as listed below. If part required is not listed below, request part by description and quote model number and serial number which is shown on rating plate. Controls 018094 Thermocouple.
