I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l
Electric Range
Se ri e s

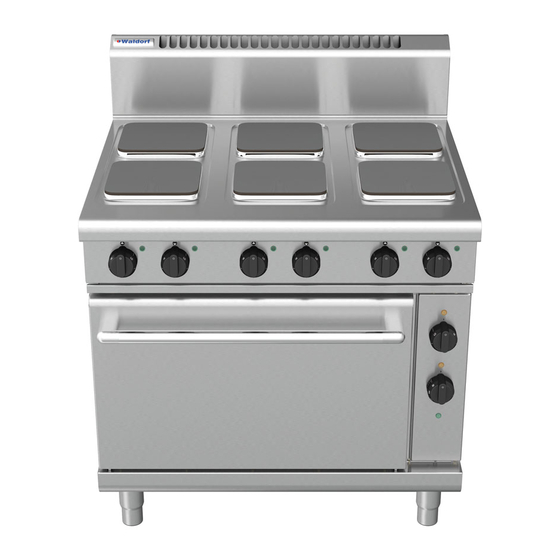

RN 8 6 10 S E
RN L 8 61 0 S E
RN B8 6 10 S E
RN L B8 61 0 S E
RN 8 6 10 S EC RN L 8 61 0 S EC RN B8 6 10 S EC
RN L B8 61 0 S EC
248230-3

Advertisement

loading
Need help?

Need help?

Do you have a question about the 800 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Waldorf 800 Series

  • Page 1 I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l Electric Range Se ri e s RN 8 6 10 S E RN L 8 61 0 S E RN B8 6 10 S E RN L B8 61 0 S E...
  • Page 2 Moffat Limited Rolleston 7675 New Zealand AUSTRALIA Moffat Pty Limited Web: www.moffat.com.au E.Mail: vsales@moffat.com.au Main Office: (tel) +61 (03) 9518 3888 (fax) +61 (03) 9518 3833 Service: (tel): 1800 622 216 Spares: (tel): 1800 337 963 Customer Service: (tel): 1800 335 315 (fax): 1800 350 281 CANADA Serve Canada...
  • Page 3 Waldorf Electric Ranges Convection / Static Ovens - 900 mm RN(L)(B)8610SE Electric Range Static Oven. RN(L)(B)8610SEC Electric Range Convection Oven. Model Numbers Covered in this Specification General Electrical Supply Requirements Electrical Connection Dimensions Installation Requirements Unpacking Location Clearances Assembly Fitting Rear Rollers...
  • Page 4 We are confident that you will be delighted with your WALDORF ELECTRIC RANGE and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Waldorf ELECTRIC RANGE, there are two important things you can do.
  • Page 5 Model Number Model Type Total Power Input Net Weight Electric Range Static Oven RN[1]8610SE 22.1 kW 182 kg with 6 Hotplate Elements. Electric Range Convection RN[1]8610SEC 22.2 kW 182 kg Oven with 6 Hotplate Elements NOTE: [1]: Model Options: - Standard. - Low Back.
  • Page 6 RN(L)8610SE / SEC ELECTRICAL ENTRY...
  • Page 7 Waldorf Electric Range Static / Convection Oven are designed to provide years of satisfactory service, and correct installation is essential to achieve the best performance, efficiency and trouble-free operation.
  • Page 8 All Models All models are delivered completely assembled. Ensure that the legs are securely attached. NOTE: Appliance Base • This appliance is fitted with adjustable feet to enable it to be positioned securely and level on uneven floors. This should be carried out on completion of the electrical connection.
  • Page 9 HIS APPLIANCE MUST BE EARTHED F THE SUPPLY CORD IS DAMAGED IT MUST BE REPLACED BY A SUITABLY QUALIFIED PERSON IN ORDER TO AVOID A HAZARD NOTE: ALL ELECTRICAL CONNECTIONS MUST ONLY BE CARRIED OUT BY AN AUTHORISED PERSON. Each appliance should be connected to an adequately protected power supply and isolation switch mounted adjacent to, but not behind the appliance.
  • Page 10 Waldorf Electric Range Static / Convection Ovens have been designed to provide simplicity of operation. Despite the Cooktop’s commercial heavy duty robust construction, incorrect operation practices can reduce the life of the appliance and produce a poor quality product. To use this appliance correctly please read the following sections carefully.
  • Page 11 The controls for the cast iron hotplate elements may be set at any position between high and low to provide the desired level of heating. An individual green neon for each element, will glow when the element is powered on, i.e. heat control is set to an “ON” position. Start cooking at the highest setting, and change to a lower setting when the desired temperature is reached.
  • Page 12 Always turn off the electrical power supply at the mains supply before cleaning. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. Clean the Range regularly. A clean appliance looks better, will last longer and will perform better. Carbonised grease on the surface will hinder the transfer of heat from the cooking surface to the food.
  • Page 13 NOTE: • If the Range usage is very high, we recommend that the weekly cleaning procedure is car- ried out on a more frequent basis. • Ensure that protective gloves are worn during the cleaning process. • DO NOT use harsh abrasive detergents, strong solvents or caustic detergents as they will damage the Cooktop and elements.
  • Page 14 This section provides an easy reference guide to the more common problems that may occur during the operation of your appliance. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section.
  • Page 15 Static Ovens (RN8610SE Series)
  • Page 16 Convection Ovens (RN8610SEC Series)
  • Page 17 Cooktop - 6 Elements (RN8610SE/SEC Models)
  • Page 18 Wiring Layout for Static Oven Wiring Layout for Convection Oven Wiring Connection Between Oven and Hob...
  • Page 19: Replacement Parts List

    Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for the servicing and repair of this appliance. The instructions supplied with the parts should be followed when replacing components. For further information and servicing instructions, contact your nearest authorized service branch (contact details are as shown on the reverse of the front cover of this manual).
